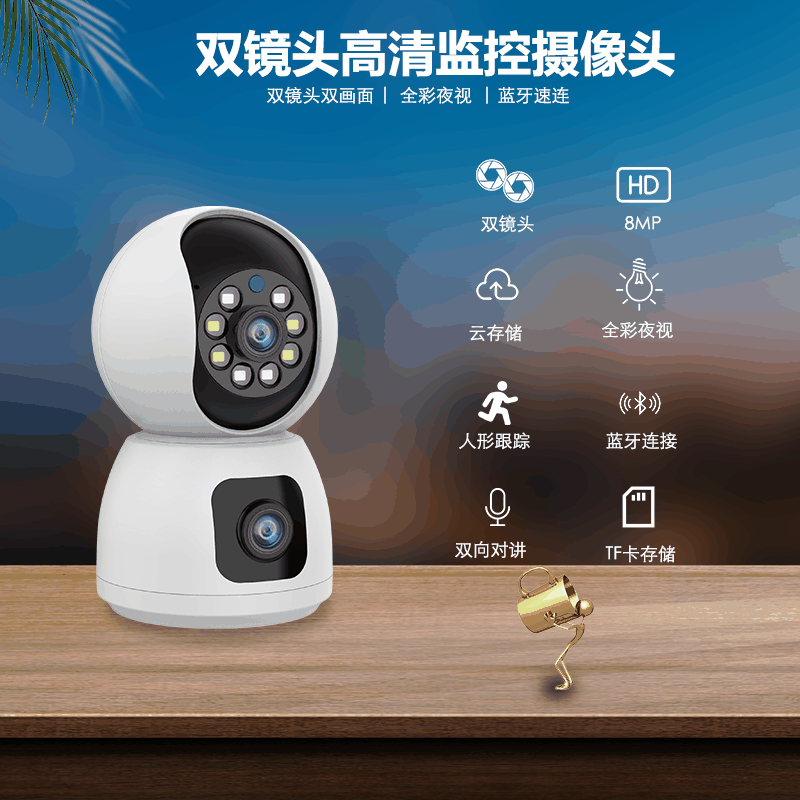

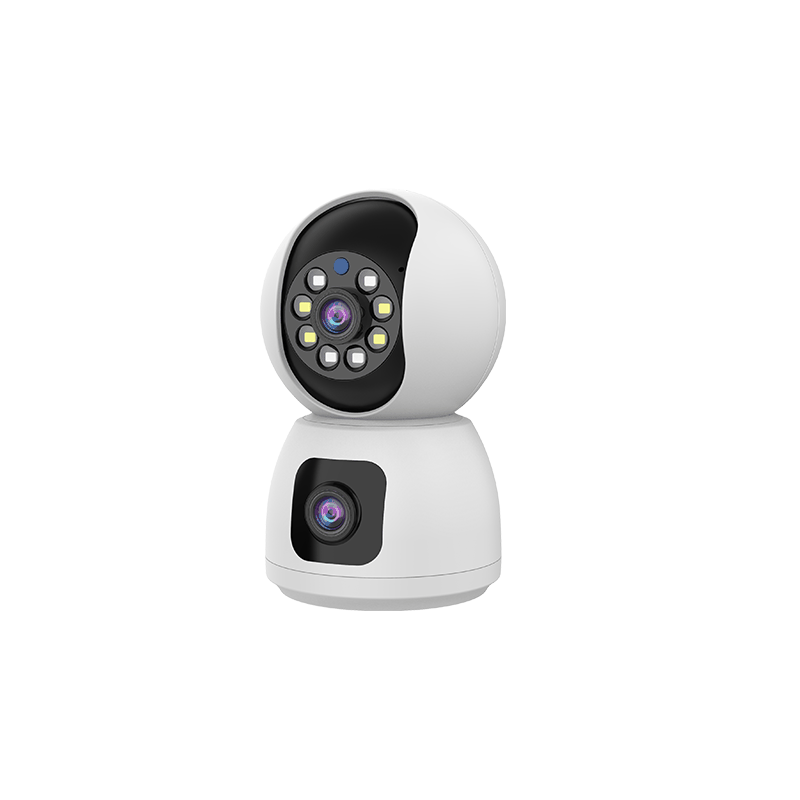

Two lenses in a body the size of a coffee mug. The lower fixed lens holds the whole room — always. The upper PTZ lens zooms into wherever the alert came from. Context and detail, one device, zero blind spots.
Why This Camera
A single camera can only look one way. This one gives you two live views simultaneously — a wide-angle overview plus a zoomed-in close-up — so you never miss a thing.
With full PTZ control and auto tracking, the camera follows movement and pans to keep every corner in view. One device replaces multiple fixed cameras.
Full-color night vision with warm LED lighting means you see real colors and details after dark — not grainy black-and-white footage.
WiFi plug-and-play setup, smart detection that cuts false alerts, and two-way audio for staying connected. Everything you need in one compact, affordable device.
Technical Specifications
| Imaging | |
| Image Sensor | 1/3" color CMOS Sensor |
|---|---|
| Resolution | 3MP + 3MP |
| Effective Pixels | 2304*1296 |
| Compression | H.264/H.265 |
| Electronic Shutter Time | Auto(1/1.5s~1/30000s) |
| Minimun Illumination | 0.01 Lux |
| S/N Ratio | 46dB |
| Scanning System | Progressive |
| Video Output | Wireless network |
| Reset Button | YES |
| PTZ | |
| Horizontal Rotation Range | 0~355° |
| Tilt Rotation Range | 0~85° |
| Guard Points | NO |
| Optics | |
| Focus Length | 4MM/6MM |
| Focus Control | Fixed |
| Lens Type | Fixed |
| Pixels | 6M Pixels |
| Night Vision | |
| Infrared LED | 4PCS Infrared light + 4PCS White light |
| Infrared Distance | 10M |
| IR Status | AGC auto control |
| IR Power On | Auto Control |
| Connectivity | |
| RJ45 | NO |
| Protocol | TCP/IP, UDP/IP, DHCP, MQTT, P2P |
| ONVIF | NO |
| P2P | Support |
| 4G | Not available — this indoor PTZ model is Wi-Fi only |
| WIFI | Wi-Fi(IEEE802.11b/g/n) |
| Main Stream | 2304*1296@12.5fps |
| Sub Stream | 800x448@12.5fps |
| Smart Phone | support |
| Image & Smart Features | |
| Day/Night | Color/ B&W (IR-CUT ) |
| Image Config | YES |
| BLC | Support |
| 3DNR | Support |
| WDR | YES |
| Motion Detection | Support |
| Privacy Masking | YES |
| Recording Mode | Sdcard/Cloud storage |
| Language | Simplified Chinese, English, Japanese, German, Russian, French, Italian, Spanish |
| Audio & Storage | |
| Audio | 2-Way Audio (MIC and Speaker) |
| Alarm | Motion Detection, PIR human body infrared detection |
| SD Card Slot | Support Max 256G |
| Build & Power | |
| IR Cut Filter | YES |
| Power | Type-C 5V 1A |
| Packaging | |
| weight | 306g |
| Box size | 168MM*106MM*92MM |
| Outer box size | 537MM*462MM*345MM |
| Weight of one box | 17KG(50PCS) |
| Operating Temperature | -30°C ~ +60°C |
| Mobile App | V380 Pro (iOS / Android) |
Applications
One device covers the whole open-plan space — panorama + detail.
Entrance, counter and aisle in a single compact unit.
Panorama watches everything; PTZ follows the action.
Check in during the day — see where the pet actually goes.
Entry and desk coverage while you are focused elsewhere.
Point the panorama at the door; let the PTZ handle visitors.
FAQ
Trial orders start small — talk to us about your volume. Logo printing, custom packaging and firmware defaults are available on OEM terms; we scale with you from first sample to full containers.
Yes — the fixed lens records continuously while the PTZ lens can be aimed, set to track, or zoomed. Both streams are accessible simultaneously in the app.
Yes, with the included mount. Ceiling placement gives the fixed lens the cleanest 360° panorama and keeps the PTZ unobstructed.
We manufacture as an OEM and do not hold finished CE or FCC test reports under our own name. What we do instead is support your own local approval: we supply the documents we actually hold, including detailed specifications, label artwork and wiring drawings, plus the battery paperwork your shipment needs. Tell us your destination market and what your authority asks for, and we will confirm in writing which documents ship with the order and which your side has to obtain locally.
Spare parts, firmware updates and warranty handling come from our own factory in Shenzhen. Your customers stay supported — and so does your reputation.
V380 Pro (iOS / Android) is the companion app — free to download, with live view, playback, PIR push alerts, two-way talk and multi-user sharing. Pair by scanning the QR code on the camera.
