MO32 3-lens outdoor security camera — robot-inspired waterproof body
MO32 3-lens outdoor security camera — 6MP across three lenses

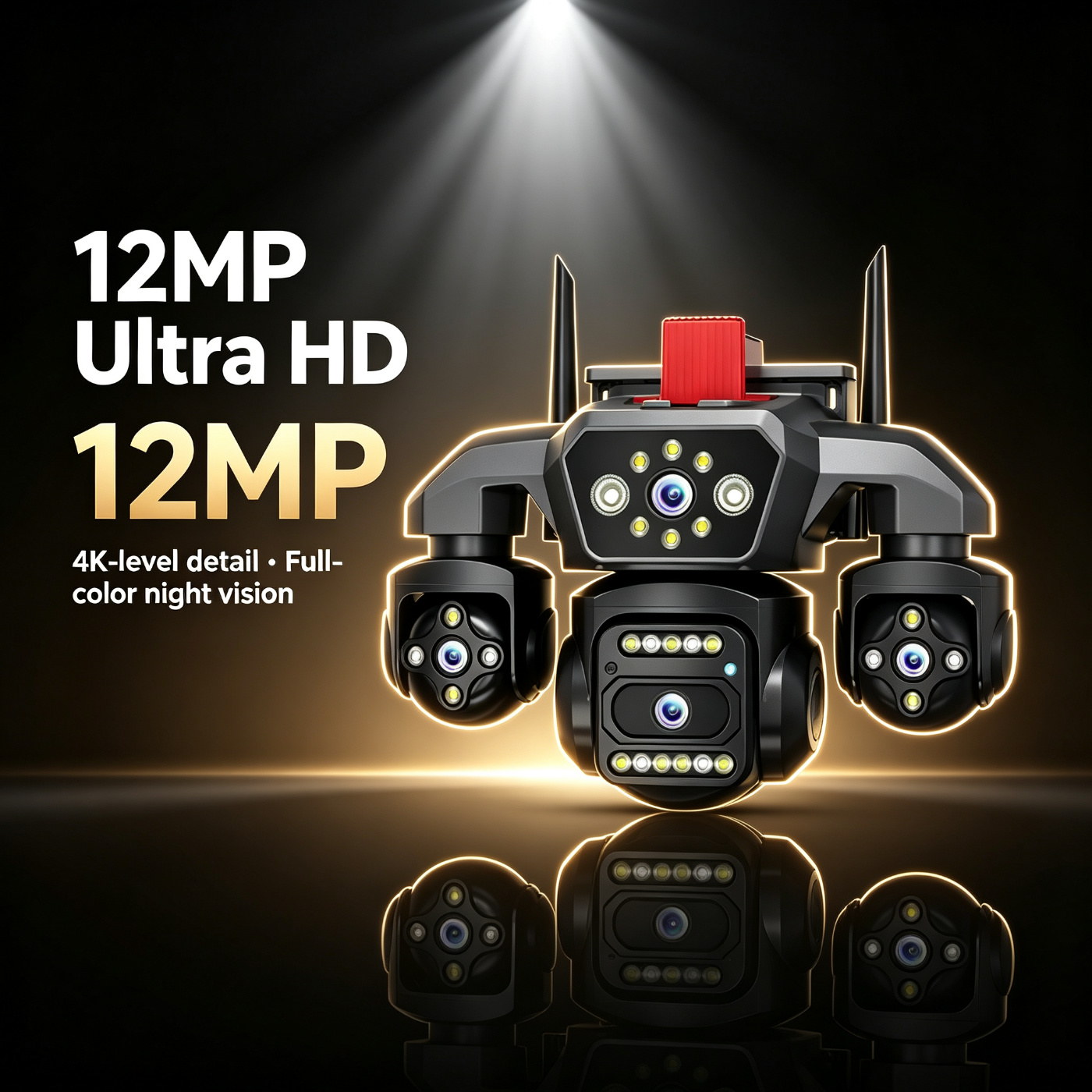

MO32 3-lens outdoor security camera — mains-powered 24/7 recording

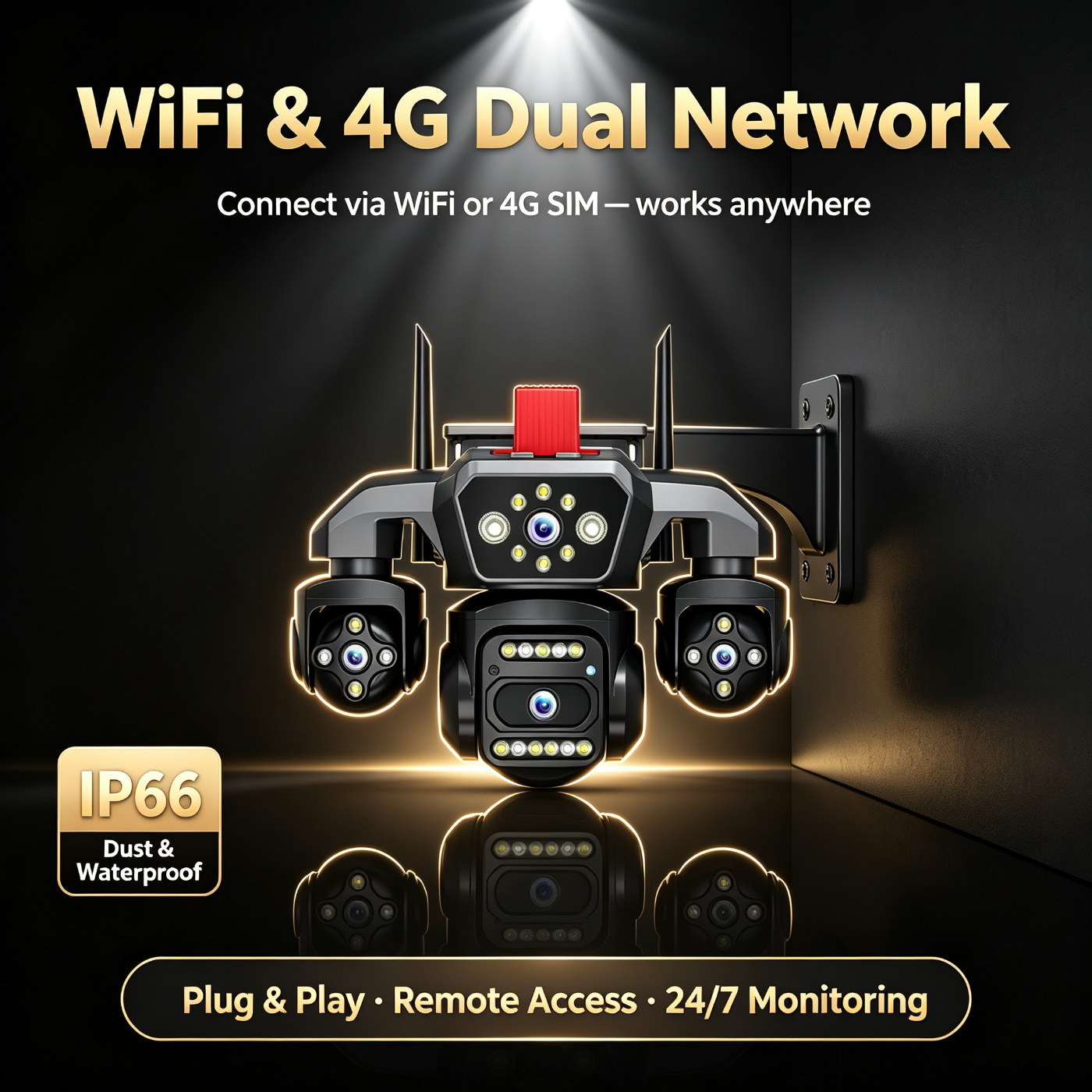

MO32 3-lens outdoor security camera — IP66 waterproof housing

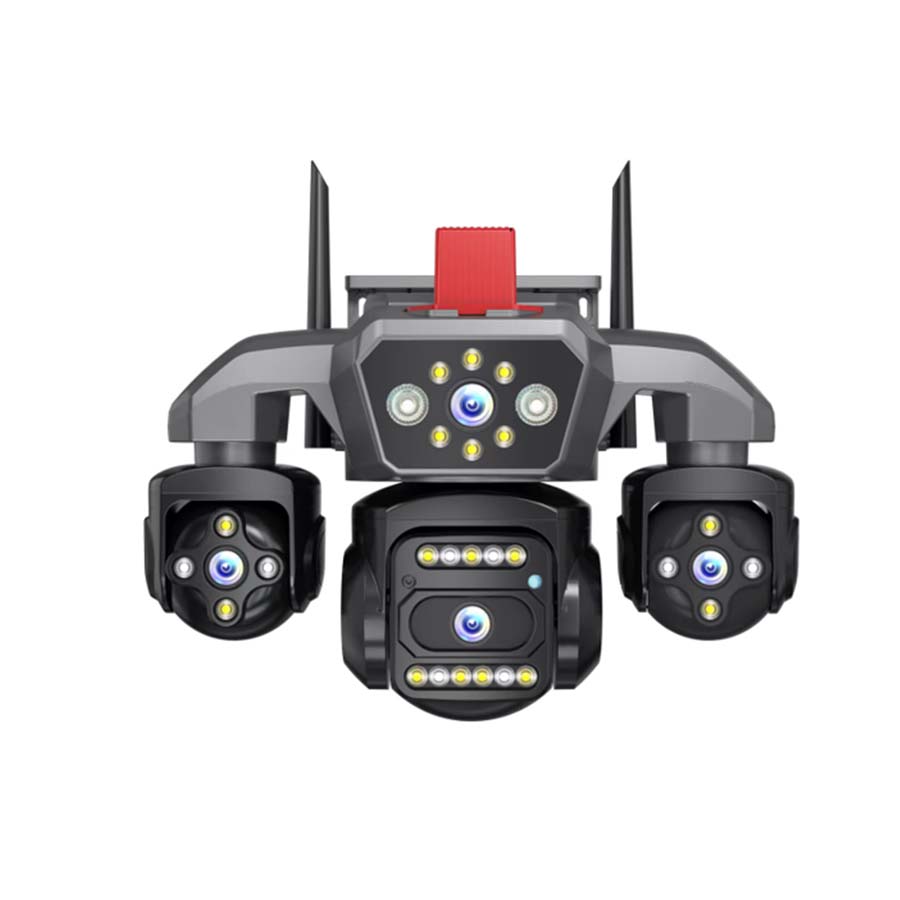

MO32 3-lens outdoor security camera — WiFi and 4G dual network
Outdoor Series · Active Deterrence

MO32 3-Lens Outdoor Waterproof Robot Camera

Mains-powered 3-lens outdoor camera in a robot-inspired waterproof body — active deterrence, full-color night vision and 24/7 recording, always on duty.

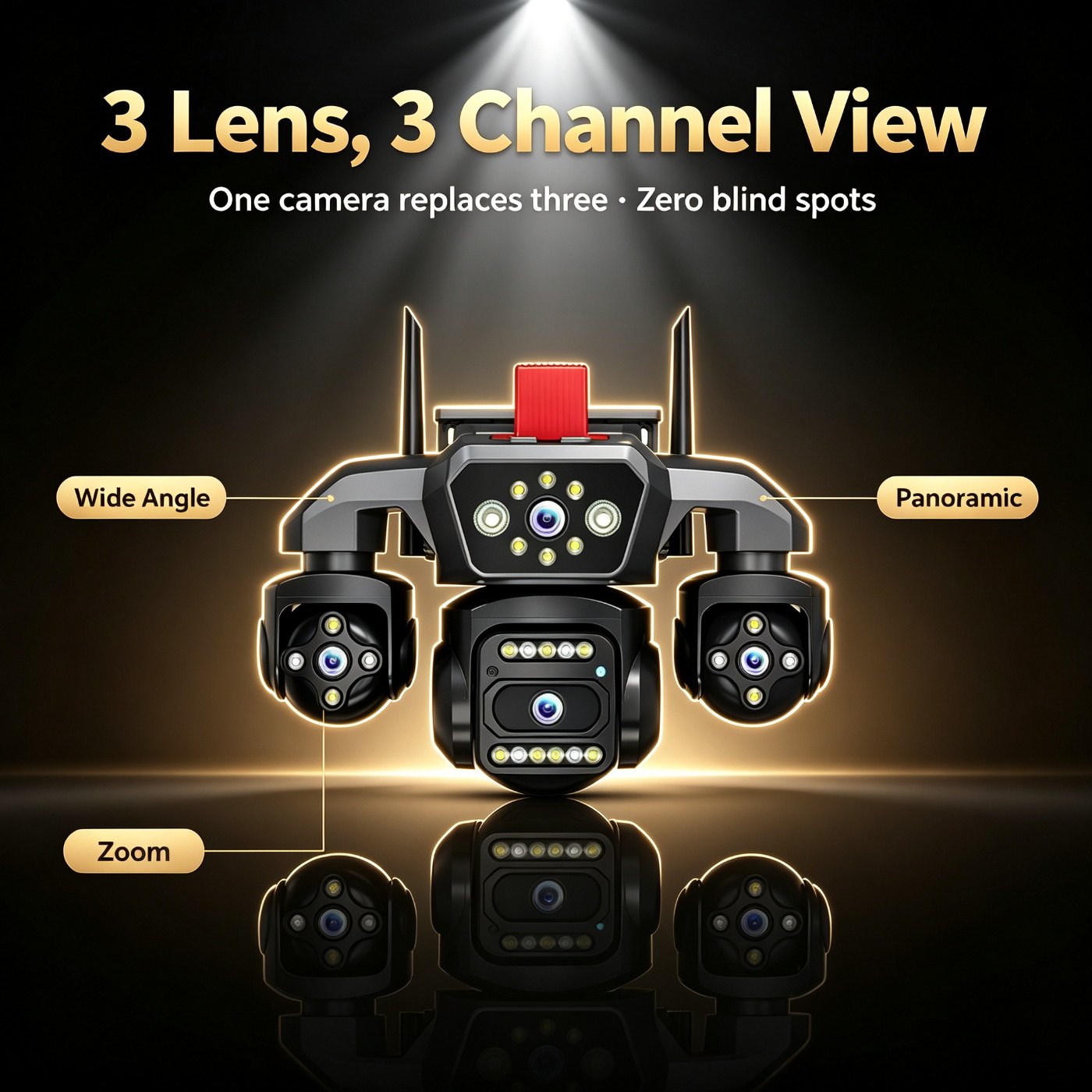

👁️ 3-Lens, 3-Channel — wide-angle, zoom and panoramic views at the same time. One device replaces three.
📸 2MP on each of the three lenses — every view at the same detail. Accurate colors by day, full-color night vision without glare.
📡 WiFi & 4G Dual Network — connect via WiFi or insert a 4G SIM. Free from wiring constraints.
🌧️ IP66 Waterproof — sealed housing for stable operation in heavy rain, dust and extreme temperatures.
🔊 Two-Way Audio & Mobile Control — real-time intercom, remote voice broadcasting and instant anomaly alerts.
OEM / ODM available Sample orders welcome Factory-direct since 2016

Why This Camera

Why This Camera.

Hub

An all-in-one intelligent security hub

This is not just a standard security camera — it is an all-in-one intelligent security hub. Three independent lenses work in sync to deliver simultaneous imaging, giving you the equivalent of a wide-angle sentry, a zoom hunter and a panoramic commander all in one unit. No need to stack multiple devices, saving you both costs and installation time.

Power

Stable 24/7, zero blind spots

The wired power design guarantees a stable 24/7 power supply, while the low-power chip ensures the device runs cool and stable without dropping offline, even during long-term operation. Whether you need to secure your home, protect a store, monitor a construction site, or oversee an orchard, this camera delivers all-around, high-definition, zero-blind-spot protection with the efficiency of one camera doing the work of three.

Technical Specifications

The full spec sheet.

Imaging
Image Sensor1/3" color CMOS Sensor
Resolution2MP + 2MP + 2MP
Effective Pixels1920(H)*2160(V)
CompressionH.264/H.265
Electronic Shutter TimeAuto(1/1.5s~1/30000s)
Minimun Illumination0.01 Lux
S/N Ratio46dB
Scanning SystemProgressive
Video OutputWireless network
Reset ButtonYES
PTZ
Horizontal Rotation Range0~355°
Tilt Rotation Range0~90°
Guard PointsNO
Optics
Focus Length4mm+4mm+4mm
Focus ControlFixed
Lens TypeFixed
Pixels6M Pixels
Night Vision
Infrared LED25PCS Infrared light +25PCS White light
Infrared Distance10M
IR StatusAGC auto control
IR Power OnAuto Control
Connectivity
RJ45NO
ProtocolTCP/IP, UDP/IP, DHCP, MQTT, P2P
ONVIFNO
P2PSupport
4G band optionsEU / Middle East / Africa edition: FDD-LTE B1/B3/B5/B7/B8/B20/B28 · TDD-LTE B38/B40/B41 (standard production). Americas edition: available on custom order, not held in stock — band list confirmed in writing per order.
WIFIVersion available (4G SIM and WiFi are separate versions, specify the destination market at order)
Main Stream1920×2160@15fps
Sub Stream640*720@15fps
Smart Phonesupport
Image & Smart Features
Day/NightColor/ B&W (IR-CUT )
Image ConfigYES
BLCSupport
3DNRSupport
WDRYES
Motion DetectionSupport
Privacy MaskingYES
Recording ModeSDcard
LanguageSimplified Chinese, English, Japanese, German, Russian, French, Italian, Spanish
Audio & Storage
Audio2-Way Audio (MIC and Speaker)
AlarmMotion Detection, PIR human body infrared detection
SD Card SlotSupport Max 256G
Build & Power
Housingplastic,IP66
BracketSupport
IR Cut FilterYES
PowerDC 12V/2A
Operation Temperature-30°C ~ +60°C
Storage Temperature-30°C ~ +60°C, 0% ~ 90% RH (no condensation)
Packaging
weight0.7KG
Box size262*215*195mm
Outer box size595*490*530MM
Weight of one box24KG(32PCS)
Mobile AppV380 Pro (iOS / Android)

Applications

Sites that need eyes everywhere.

🌾 Rural & Agricultural Sites

Monitor farms, ranches, orchards or livestock areas to prevent theft or wildlife intrusion without needing electrical outlets or Wi-Fi.

🏗️ Construction & Temporary Zones

Secure building sites, material storage yards or portable offices where permanent cabling is not feasible.

🏡 Residential Perimeters

Protect villas, backyards, driveways or garage entrances — especially areas that are hard to wire or lack existing surveillance.

🏞️ Public Spaces & Tourism Areas

Deploy in parks, campgrounds or scenic spots to monitor visitor behavior and provide safety alerts through voice prompts.

🚚 Logistics & Parking Facilities

Oversee loading docks, vehicle entry/exit points or warehouse perimeters with remote viewing and instant alarm triggers.

Planning a full deployment? See the scenario guides: warehouse and loading dock cameras and parking lot camera solutions.

Install notes

Getting deterrence right without the false alarms.

Deterrence is about where it points

Aim it at an approach someone has to take — a gate, a doorway, a loading bay — not at a boundary nobody crosses. A warning that fires on passers-by gets muted within a week, and a muted unit is just a camera with the useful part switched off.

Keep the mic out of the wind

Two-way talk gets genuinely used: gate release, delivery instructions, telling a driver where to leave a pallet. Mounting under an eave or away from the prevailing wind is the difference between usable audio and a wall of hiss.

It trades light for voice

Twenty-five infrared plus twenty-five white LEDs is deliberately fewer than MO31 carries, because the budget here went to the speaker and warning side. If you need maximum night illumination more than audible deterrence, take MO31.

Rated −20 °C to +60 °C

Plastic, IP66, 0.7 kg with bracket supplied, running on DC 12 V / 2 A. Plan the cable route before you fix the bracket — retrofitting a run later is the tedious part.

Which model

MO32, MO31 or MS31?

You need more night light than deterrent

MO31 carries thirty-four infrared plus thirty-four white LEDs on the same body — better for lighting up a yard than challenging an intruder. See the full spec sheet.

Two views are enough at that point

MO23 pairs a dual lens with the same V380 Pro app and usually costs less per installation. See the full spec sheet.

Same idea where the cable cannot reach

MS31 puts three lenses on solar power and shares this app account, so a mixed site still hands over in one place. See the full spec sheet.

Ordering & shipping

Terms that decide the deal.

Samples and trial orders

Evaluation samples ship as 1–2 units so you can test on a real site. Trial orders up to 100 units carry their own price tier, and the sample charge is credited against your first bulk order rather than refunded in cash — first bulk orders start at 300 units.

Lead time

Standard-configuration orders ship in 7–14 days. OEM branding — logo, carton artwork and firmware defaults — adds time and is quoted against the specific job instead of assumed.

Payment and trade terms

Standard terms are T/T with 50% deposit and 50% before shipment. We quote FOB Shenzhen, or CIF to your port. Delivered-duty-paid is not something we sell — the customs entry stays in your name.

Warranty and spares

Twelve months, handled direct from our own factory in Shenzhen — spare parts, firmware updates and RMA replacements come from the people who built the unit.

Packing and freight

Ships in master cartons of 32 units, carton footprint 595*490*530MM, 24KG gross per carton. Give us your port and we will quote freight on CIF terms, or hand over on FOB Shenzhen if you run your own forwarder.

FAQ

What buyers usually ask.

What's the MOQ for OEM orders?

Trial orders start small — talk to us about your volume. Logo printing, custom packaging and firmware defaults are available on OEM terms; we scale with you from first sample to full containers.

How does the active deterrence work — will it trigger by mistake?

Detection is tuned to human movement, not swaying branches or passing headlights, and you can set active hours and trigger sensitivity from the app. When someone steps into the frame the camera pushes an alert to your phone immediately, so you can check the live view and decide what to do next. Manual control is always available in the app.

Can I talk through the camera too?

Yes — two-way audio lets you speak directly through the app: greet visitors, warn off intruders or brief staff on site, all without going out.

How does full-color night vision work?

Two light sources share the housing — infrared LEDs for covert illumination and white-light LEDs that switch the sensor to full color. The result is footage that shows faces, clothing and vehicle colors rather than grayscale, which matters when an image has to stand up as evidence.

What certifications are available?

We manufacture as an OEM and do not hold finished CE or FCC test reports under our own name. What we do instead is support your own local approval: we supply the documents we actually hold, including detailed specifications, label artwork and wiring drawings, plus the battery paperwork your shipment needs. Tell us your destination market and what your authority asks for, and we will confirm in writing which documents ship with the order and which your side has to obtain locally.

What about after-sales support?

Spare parts, firmware updates and warranty handling come from our own factory in Shenzhen. Your customers stay supported — and so does your reputation.

Which mobile app do the cameras use?

V380 Pro (iOS / Android) is the companion app — free to download, with live view, playback, PIR push alerts, two-way talk and multi-user sharing. Pair by scanning the QR code on the camera.

Will it trigger on animals and passing traffic?

Detection runs on PIR human-body infrared rather than pixel change alone, which filters out most cats, birds and swinging branches. What is worth avoiding at install is fast heat swing nearby — an extractor fan outlet, or metal that bakes all afternoon and cools at dusk.

Can it record without a card fitted?

No — recordings go to the SD card, which takes up to 256 GB here. Tell us your retention target and we will ship the units with the cards already fitted and formatted, so they are writing from the moment you mount them.

Do MO31 and MO32 sit in the same app?

Yes — both are V380 Pro, along with MO23, MS31, MS32 and MSL31, so a site mixing them hands over as one account. Only Hieasy-family units such as MS42 and MS23 need a second app.

What are the payment and delivery terms on the MO32?

Deposit and balance by T/T — 50% to start and 50% before shipment — quoted FOB Shenzhen or CIF to your port. Standard configurations ship in 7–14 days; OEM branding adds time and is quoted per job. Delivered-duty-paid terms are not offered.
