Solar Series · Flagship

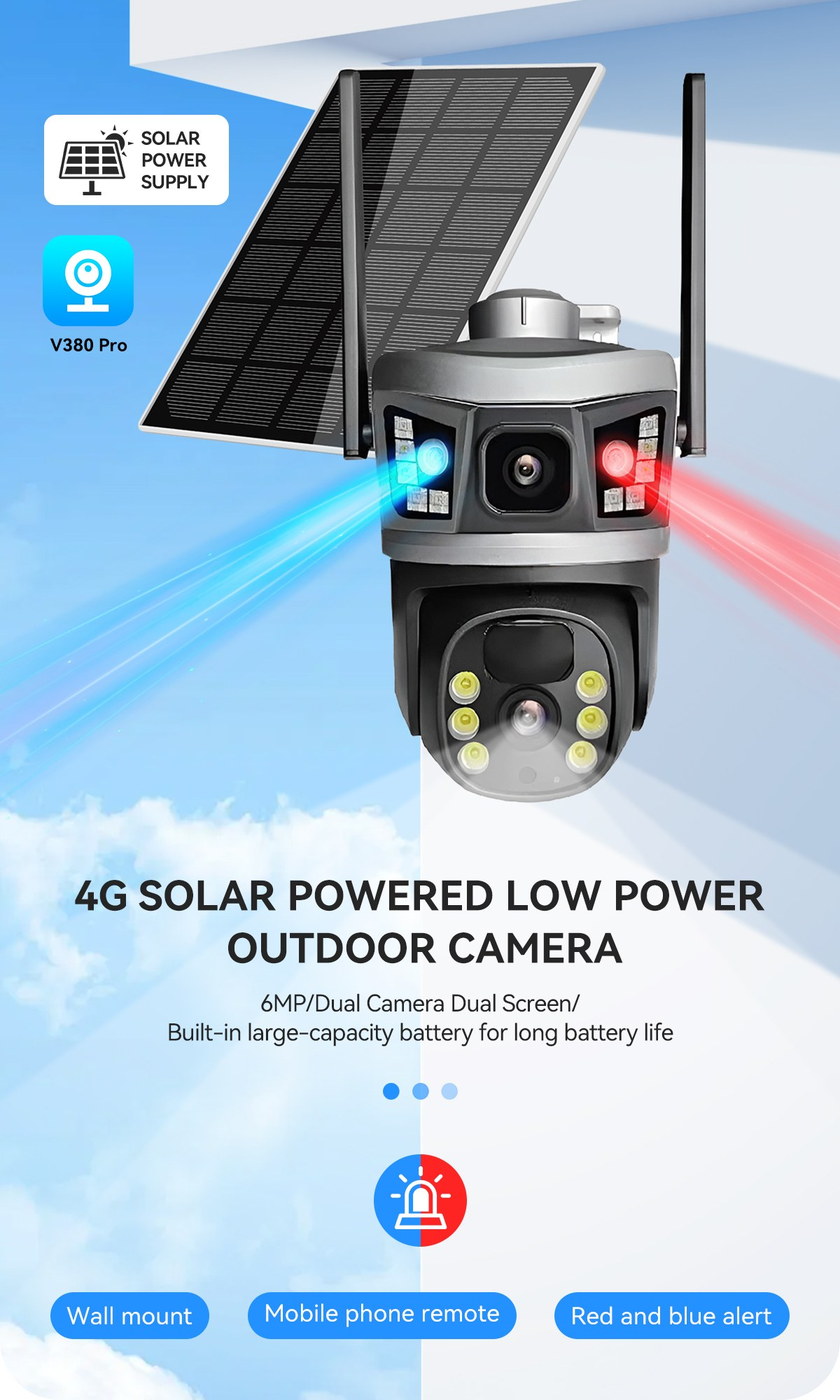

MS21 Dual-Lens 4G Solar Security Camera with Siren

MS21 Red & Blue Light Dual-Lens Solar Camera — 4G & solar powered, no wiring required for truly wireless deployment. Dual-lens wide-angle and zoom-linked monitoring delivers complete, dead-angle-free coverage. Red/blue strobe and PIR detection actively deters intruders and significantly reduces false alarms. IP66 weatherproof and low-power design withstands harsh weather and keeps running even on cloudy days. Remote access and two-way audio give real-time viewing, instant alerts and live intercom control right from your smartphone.

📶 4G & Solar — no wiring, truly wireless deployment
👁️ Dual-Lens & PTZ — wide-angle + zoom, dead-angle-free
🚨 Red/Blue Strobe & PIR — active deterrence, fewer false alarms
🌧️ IP66 & Low Power — harsh weather, cloudy-day endurance
🔊 Remote & Two-Way Audio — real-time viewing, live intercom
OEM / ODM available Sample orders welcome Factory-direct since 2016

Why This Camera

Why This Camera.

Solar

4G + solar, zero wiring

This 4G solar-powered low-power outdoor camera is engineered for environments where traditional power and network infrastructure are unavailable or impractical. Its integrated solar panel and high-capacity battery ensure continuous operation without wiring, making it ideal for remote or temporary installations.

Dual

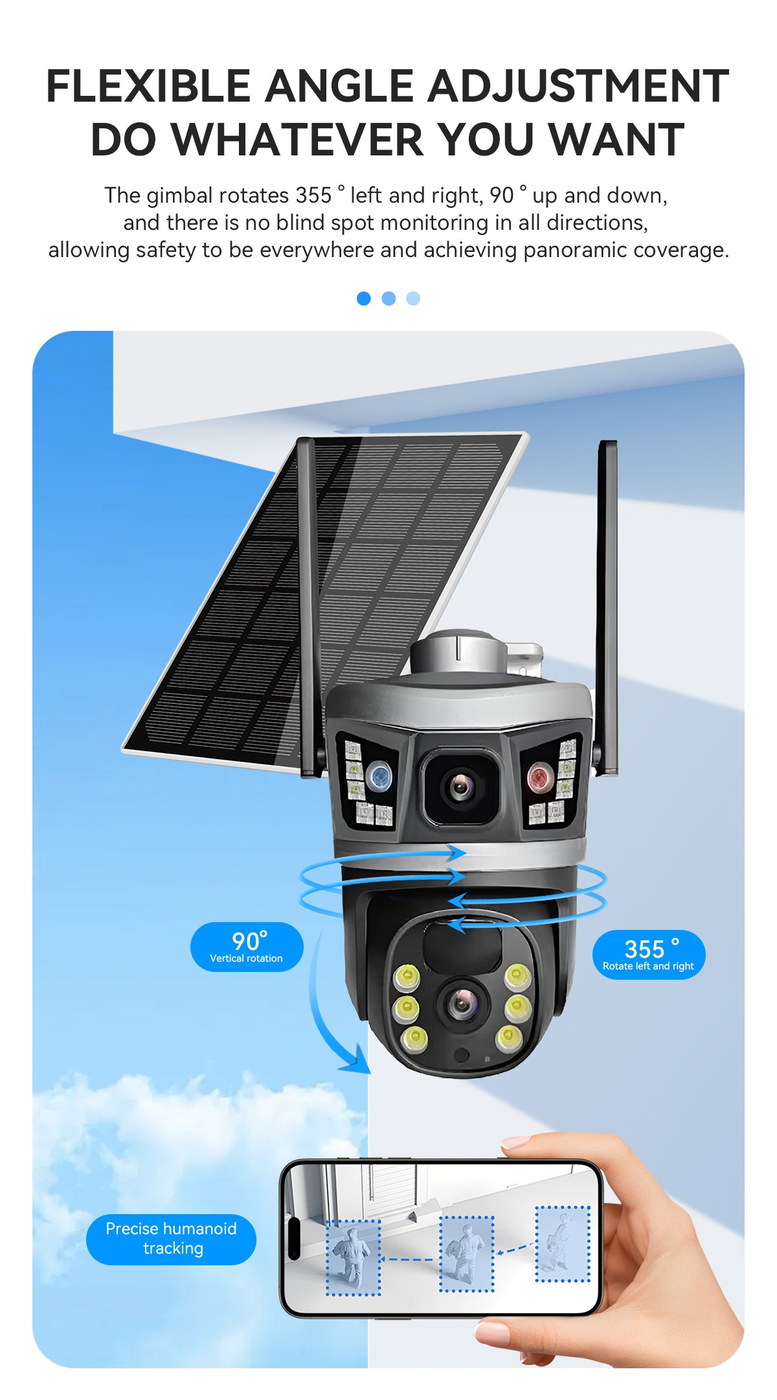

Dual-lens + PTZ control

The camera features a dual-lens system with PTZ functionality, allowing users to remotely adjust the viewing angle and zoom in on specific areas via mobile app.

Strobe

Red/blue strobe active deterrence

Equipped with PIR motion detection and red-and-blue alert lights, it actively deters intruders by triggering visual alarms and sending real-time notifications to your smartphone.

Tough

IP66 & low power

The IP66 waterproof rating ensures reliable performance in rain, dust and extreme temperatures, while its low-power design extends battery life during cloudy periods. Two-way audio enables live communication, turning passive monitoring into active engagement.

Technical Specifications

The full spec sheet.

Imaging
Image Sensor1/3" color CMOS
Resolution2MP + 2MP
Effective Pixels1920(H) x 2160(V)
CompressionH.264 / H.265
Electronic ShutterAuto 1/1.5s - 1/30000s
Min. Illumination0.01 Lux
S/N Ratio46dB
ScanningProgressive
Lens & PTZ
Lens Configuration2 lenses: 4mm + 4mm, fixed
Pixels4M Pixels
Pan Range0-355 degrees
Tilt Range0-90 degrees
Focus ControlFixed
Night Vision
IR LEDs16x infrared + 16x white light
IR Distance10m
IR ControlAGC auto control
IR Power OnAuto control
Day/NightColor / B&W auto (IR-CUT)
Connectivity
4G band optionsEU / Middle East / Africa edition: FDD-LTE B1/B3/B5/B7/B8/B20/B28 · TDD-LTE B38/B40/B41 (standard production). Americas edition: available on custom order, not held in stock — band list confirmed in writing per order.
WiFiVersion available (4G SIM and WiFi are separate versions, specify the destination market at order)
ProtocolsTCP/IP, UDP, DHCP, MQTT, P2P
Main Stream1920 x 2160 @15fps
Sub Stream640 x 720 @15fps
Smart Features
DetectionMotion detection + PIR human body infrared
Image EnhancementBLC, 3DNR, WDR
Privacy MaskingYes
AudioTwo-way audio (built-in mic & speaker)
RecordingMicroSD (up to 256GB)
Build & Power
HousingPlastic, IP66
BracketSupport
PowerDC 5V/1.5A or 7.5W solar panel, 8000mAh battery
Operation Temp-30°C ~ +60°C
Storage Temperature-30°C ~ +60°C, 0% ~ 90% RH (no condensation)
Reset ButtonYes
Packaging
Unit Weight1.6kg
Box Size260 x 190 x 125mm
Outer Box525 x 415 x 569mm, 12pcs, 20kg
Mobile AppV380 Pro (iOS / Android)

Applications

Where this camera wins.

🏘️ Gated Communities & Estates

Visible red-blue strobe deterrence at compound gates and shared walls. PIR human detection keeps night alerts meaningful across residential estates with no wiring.

🌾 Small Farms & Homesteads

Dual-lens coverage of gate and yard from one solar pole. 4G connection and strobe alarm protect remote homesteads where mains power and WiFi are absent.

🏗️ Site Offices & Storage

Deploy on containers or fencing around temporary site offices. Strobe deterrence discourages after-hours entry; two-way audio lets a remote manager intervene.

🏡 Villas & Driveways

Wide-angle plus zoom lenses watch driveway and entrance together. Full-color night vision records vehicle and visitor detail without extra lighting.

🚪 Shopfronts & Depots

After-hours strobe alarm over stock doors and loading points. IP66 housing keeps the unit running through rain, dust and heat.

Planning a full deployment? See the scenario guides: perimeter security cameras and solar security cameras for farms and ranches.

FAQ

What buyers usually ask.

What's the MOQ for OEM orders?

Trial orders start small — talk to us about your volume. Logo printing, custom packaging and firmware defaults are available on OEM terms; we scale with you from first sample to full containers.

How does the red/blue light deter intruders?

The red and blue strobe lights activate on PIR motion detection, flashing a highly visible alarm that deters intruders at the scene — while sending an instant notification to your phone.

Does it need WiFi or wiring?

No wiring either way — it runs on its own solar panel and battery. The 4G SIM version needs no WiFi and no router: it connects over 4G LTE (FDD B1/B3/B5/B7/B8/B20/B28, TDD B38/B40/B41) with P2P cloud access. A WiFi version is also available for sites that already have broadband — tell us the destination market and we will confirm the version and bands.

How long does the battery last in cloudy weather?

The low-power design and high-capacity battery are engineered for cloudy-day endurance. Under typical motion-event use, the integrated 8000mAh battery keeps the camera running through extended low-sun periods.

What certifications are available?

We manufacture as an OEM and do not hold finished CE or FCC test reports under our own name. What we do instead is support your own local approval: we supply the documents we actually hold, including detailed specifications, label artwork and wiring drawings, plus the battery paperwork your shipment needs. Tell us your destination market and what your authority asks for, and we will confirm in writing which documents ship with the order and which your side has to obtain locally.

What about after-sales support?

Spare parts, firmware updates and warranty handling come from our own factory in Shenzhen. Your customers stay supported — and so does your reputation.

Which mobile app do the cameras use?

V380 Pro (iOS / Android) is the companion app — free to download, with live view, playback, PIR push alerts, two-way talk and multi-user sharing. Pair by scanning the QR code on the camera.
