Outdoor Series · Dual Views

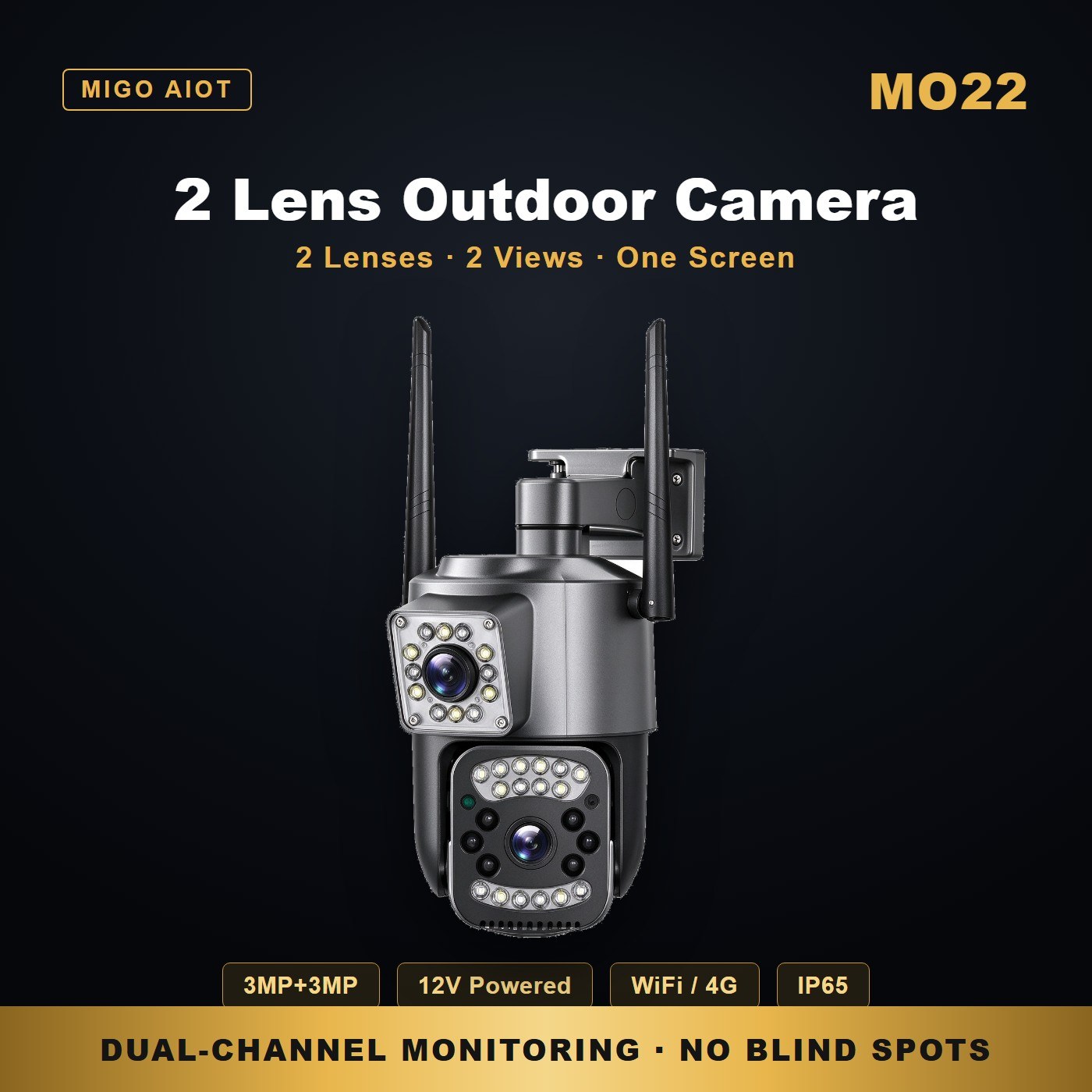

MO22 Dual Lens Outdoor Camera — 2 Views on One Screen

Compact housing, double coverage. The MO22 is the smaller member of the dual-lens family — two 3MP lenses, two views on one screen, sized for shops and homes that do not want a big housing on the wall.

👁️ 2 Views, 1 Screen — wide + detail, live together
📦 Compact Body — discreet on any wall
📶 WiFi or 4G — works where broadband ends
🌧️ IP65 Rated — outdoor sealed
OEM / ODM available Sample orders welcome Factory-direct since 2016

Why This Camera

Small housing. Double the field.

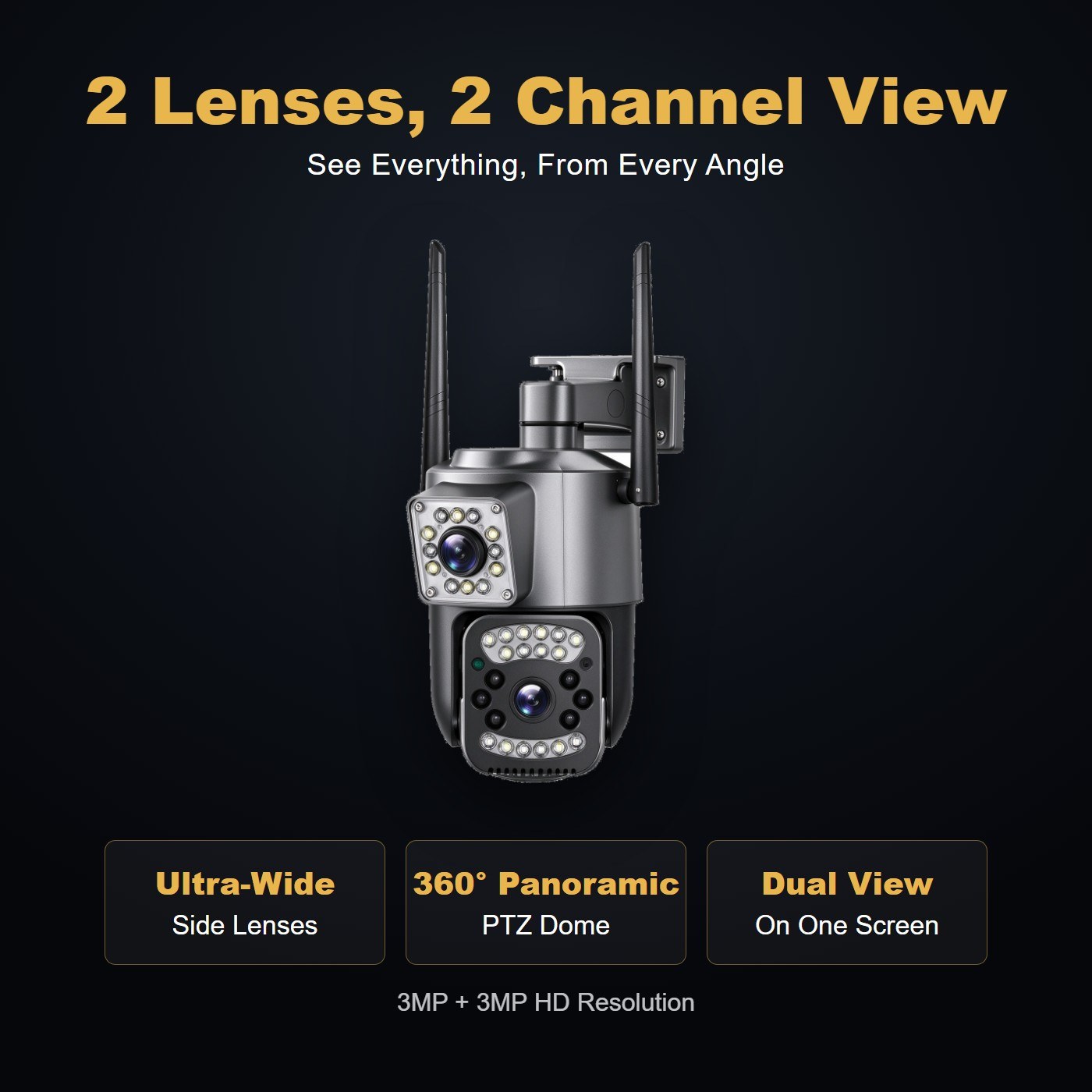

Two

Views on one screen

Wide-angle and detail lenses stream together in the app. You never choose between context and close-up — you get both.

4G

SIM-card option for hard-to-wire sites

The 4G version needs no router at all: standard SIM, local data plan, and the camera is online.

Slim

Discreet enough for shopfronts

A small housing matters in retail and residential installs — the MO22 covers like a big camera without looking like one.

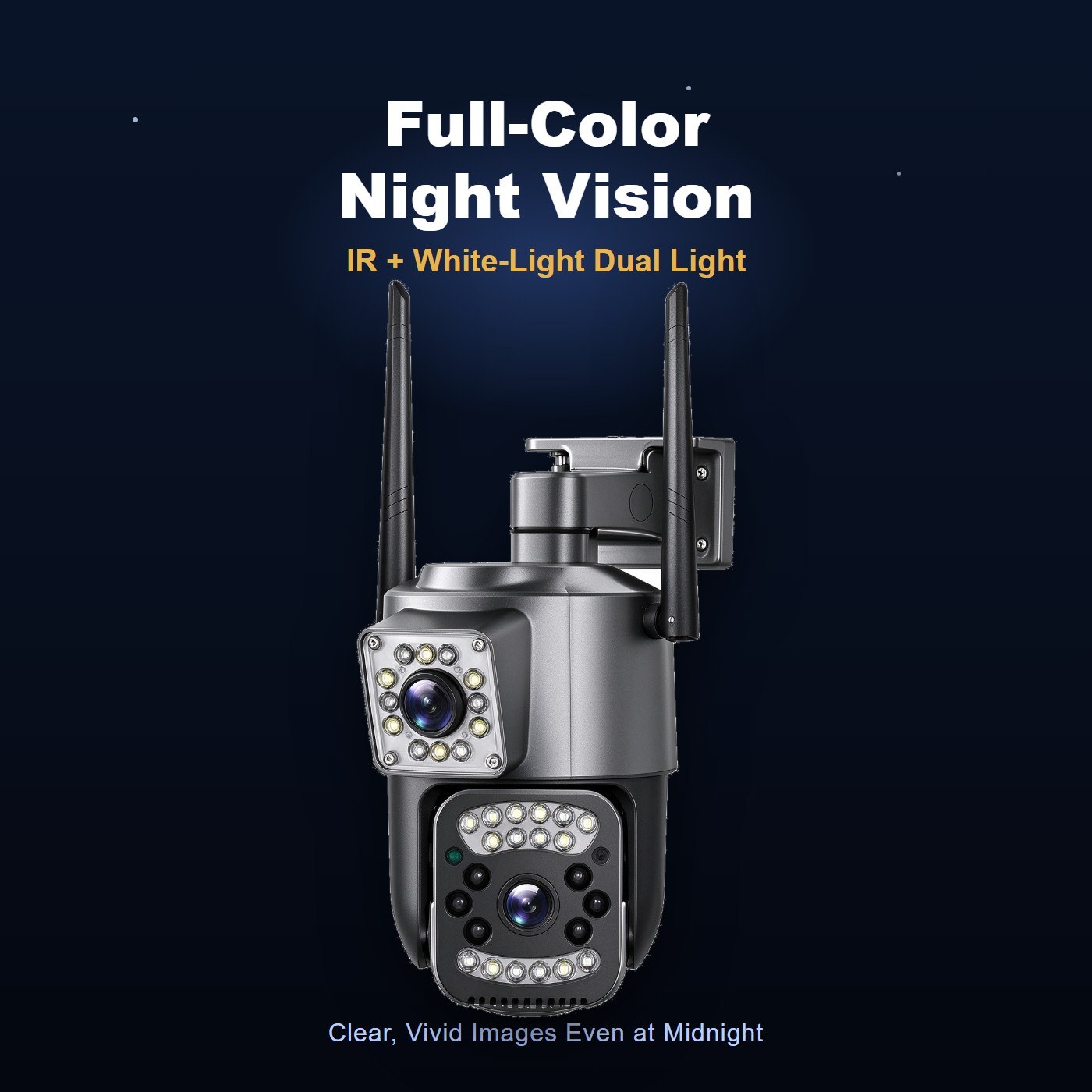

Night

Full-color after dark

IR plus white-light night vision keeps both views usable at night — faces and clothing stay identifiable.

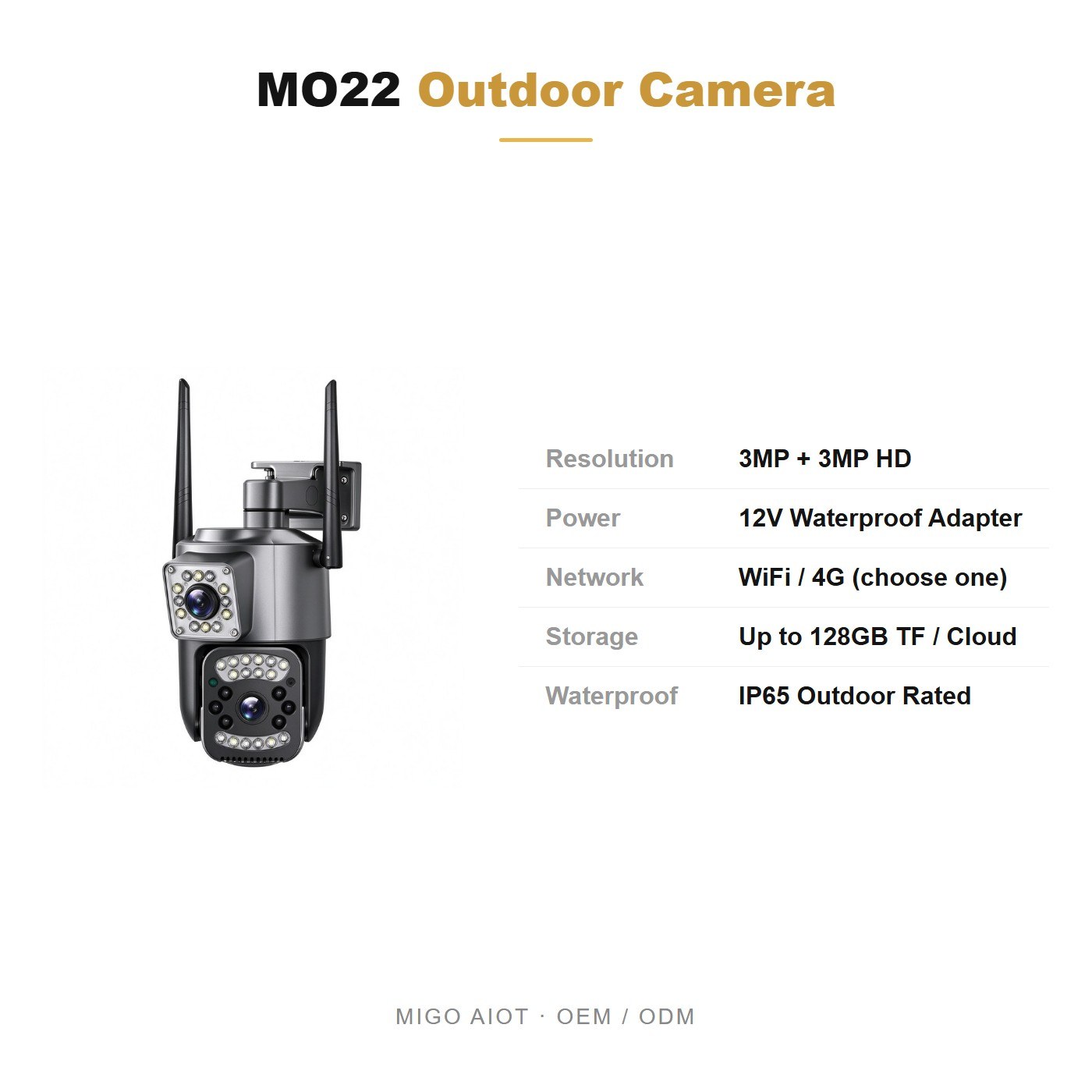

Technical Specifications

The full spec sheet.

Imaging
Resolution3MP + 3MP — 2 lenses, 2 views on one screen
Night VisionIR + white-light dual-light full color
CoverageUltra-wide angle, 360 panoramic view
Optics
Lens Configuration2 fixed lenses, 2 simultaneous views
App ViewBoth streams live on one screen in the app
Power
Power SupplyDC 12V waterproof power adapter
AudioTwo-way talk: noise-reduction mic + high-power speaker

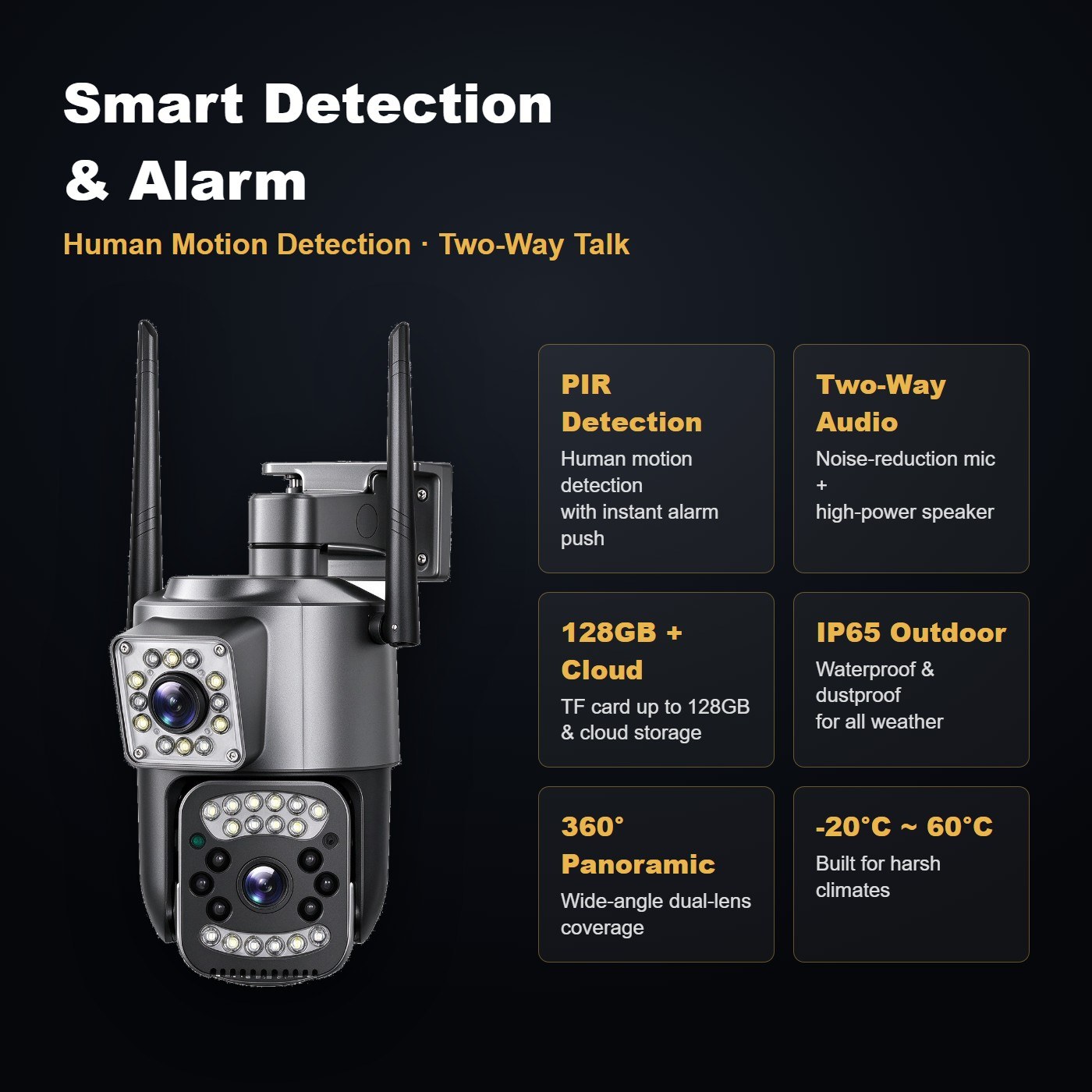

Connectivity & Smart
NetworkWiFi / 4G version (choose one at order)
DetectionHuman motion detection + alarm push
StorageTF card up to 128GB + cloud storage
Environmental
WeatherproofIP65 outdoor waterproof & dustproof
Operating Temperature-20°C ~ +60°C
Packaging
Qty/CTN30 PCS
Color Box220 × 140 × 130 MM
Carton66.5 × 45.5 × 44 CM
Unit Weight0.6 KG
G.W./CTN18.8 KG
In the BoxScrew kit, manual, DC power adapter
Mobile App
Supported AppV380 Pro (iOS / Android)

Applications

Where its size wins.

🛍️ Retail Counters

Watch the till detail and the shop floor together.

🏠 Apartments & Condos

Compact enough for balconies and shared corridors.

☕ Cafés & Restaurants

Entrance and seating area from one discreet unit.

🚪 Front Doors & Porches

Two angles on the approach without a bulky housing.

🏬 Small Stores

Full coverage where a multi-camera budget is not realistic.

🛠️ Workshops

Tools benches and the door, side by side.

Planning a full deployment? See the scenario guides: perimeter security cameras and solar security cameras for farms and ranches.

FAQ

What buyers usually ask.

What's the MOQ for OEM orders?

Trial orders start small — talk to us about your volume. Logo printing, custom packaging and firmware defaults are available on OEM terms; we scale with you from first sample to full containers.

What does dual lens actually give me?

Two lenses, two live views on one screen: one wide-angle lens holds the whole scene while the second covers a tight detail view. Both streams display together in the app — no switching between cameras.

Does the 4G version really work without WiFi?

Yes — the 4G version connects over cellular data with a standard SIM card, so no router, broadband or cabling is needed. If the site has stable WiFi, order the WiFi version instead; both share the same app and features.

Does it need a power connection?

Yes — it runs from the included DC 12V waterproof power adapter. One cable to a socket or low-voltage line is the whole installation; the adapter is sealed for permanent outdoor use.

What certifications are available?

CE, FCC and RoHS compliance for applicable destinations. Tell us your target market and we'll confirm the exact certification package and documentation for your customs clearance.

What about after-sales support?

We're a manufacturer, not a trading desk: spare parts, firmware updates and warranty handling come from our own factory in Shenzhen. Your customers stay supported — and so does your reputation.

Which mobile app do the cameras use?

V380 Pro (iOS / Android) is the companion app — free to download, with live view, playback, PIR push alerts, two-way talk and multi-user sharing. Pair by scanning the QR code on the camera.

Request a Quote

Get pricing on the MO22 Dual Lens Camera.

Quantities, target market, customization needs — the more detail, the sharper the quote. Typical reply within 24 hours.

Your details are used only to respond to this inquiry.
