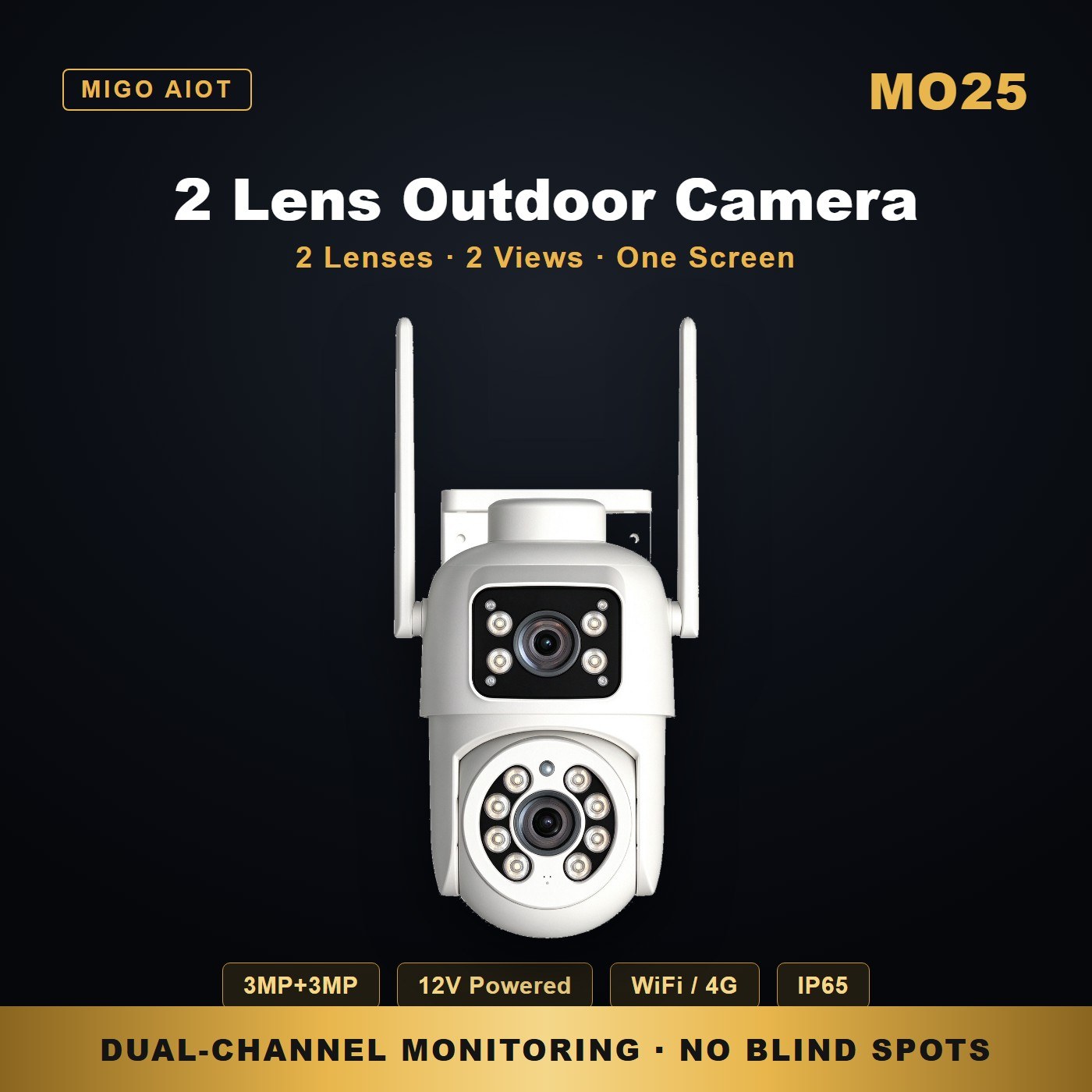

MO25 compact dual lens outdoor camera — key features

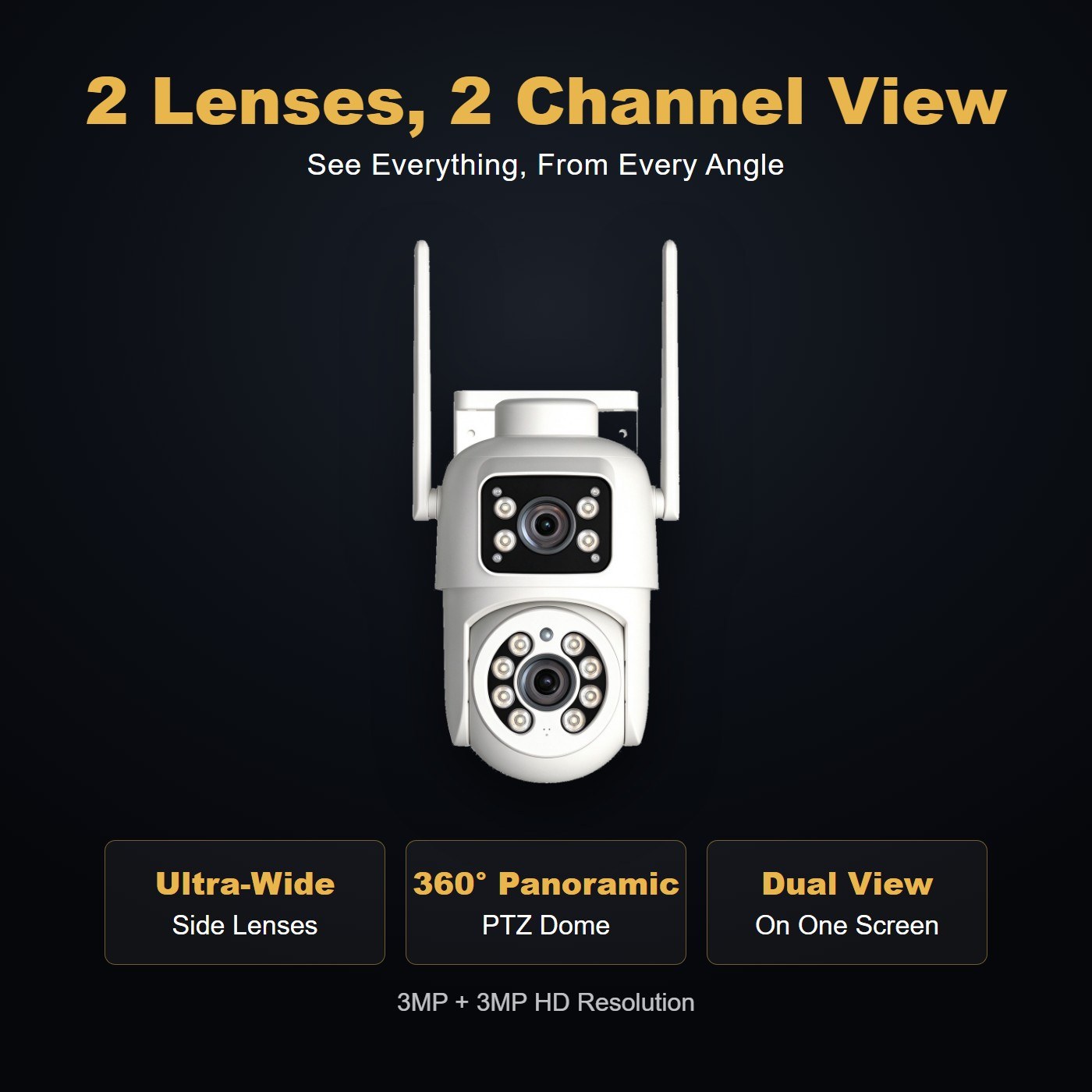

MO25 compact dual lens outdoor camera — multi-lens panoramic view

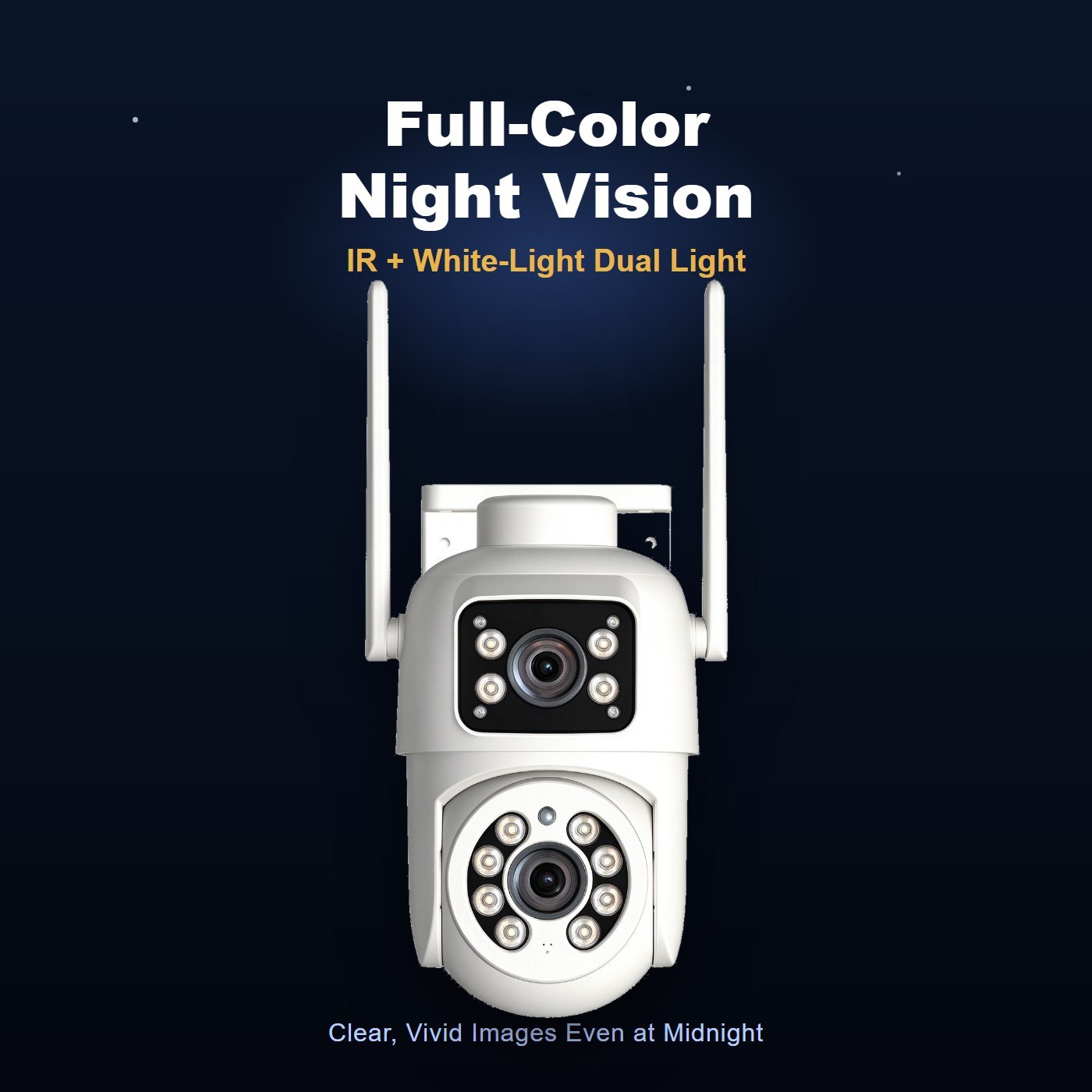

MO25 compact dual lens outdoor camera — full color night vision

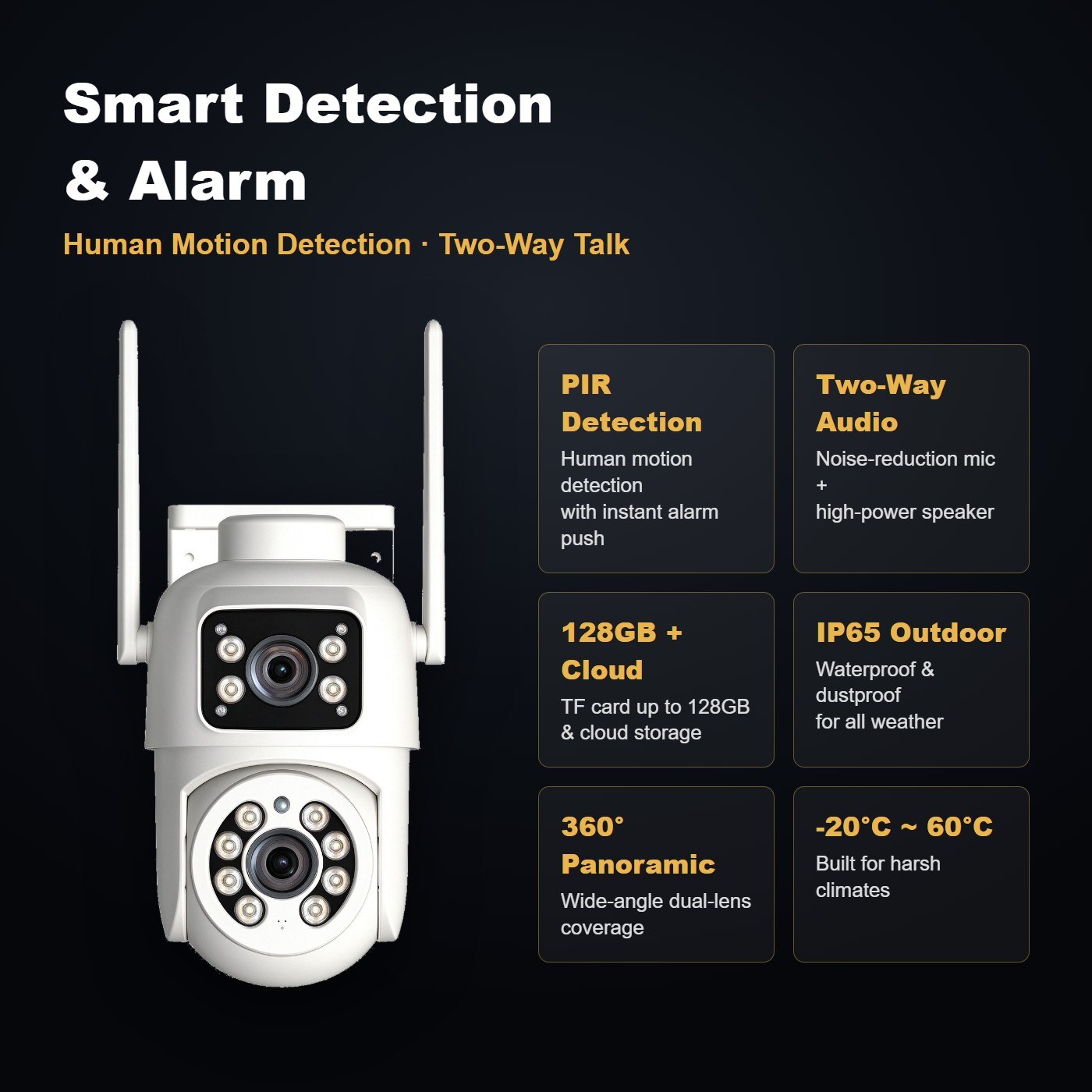

MO25 compact dual lens outdoor camera — smart functions and mobile app

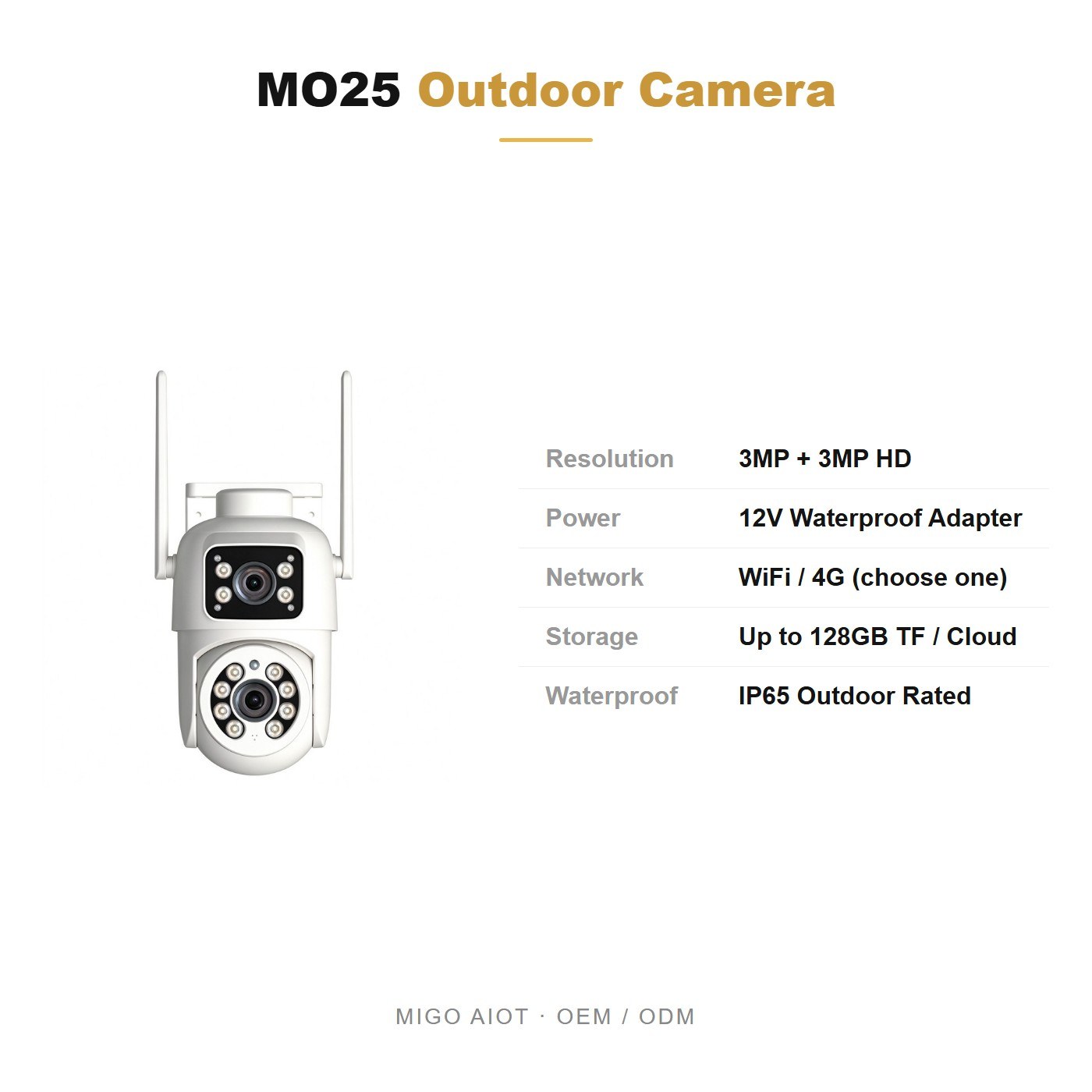

MO25 specifications and OEM terms
Outdoor Series · Compact

MO25 Compact Dual Lens Outdoor Camera

The pocket-sized dual-lens: 3MP+3MP coverage in a housing small enough for apartment walls and narrow storefronts. Big-camera coverage, compact-camera footprint.

📦 Truly Compact — smallest dual-lens housing
👁️ 2 Views, 1 Screen — 3MP+3MP streams together
📶 WiFi or 4G — flexible connectivity
🌧️ IP65 — outdoor rated
OEM / ODM available Sample orders welcome Factory-direct since 2016

Why This Camera

Small on the wall. Big in coverage.

Mini

Housing that fits anywhere

Balconies, columns, narrow storefronts — wherever a full-size camera is too much, the MO25 still delivers two simultaneous views.

2×

Two lenses in a small body

Wide + detail 3MP streams, both live on one screen in the app. No compromise on coverage despite the size.

Carton

Ships 40 units per box

For installers and distributors, the compact form factor means more units per shipment and lighter logistics per camera.

4G

Connectivity either way

WiFi for router-covered sites, 4G with a SIM card for everything else — same unit, same app.

Technical Specifications

The full spec sheet.

Imaging
Resolution3MP + 3MP — 2 lenses, 2 views on one screen
Night VisionIR + white-light dual-light full color
CoverageUltra-wide angle, 360 panoramic view
Optics
Lens Configuration2 fixed lenses, 2 simultaneous views
App ViewBoth streams live on one screen in the app
Power
Power SupplyDC 12V waterproof power adapter
AudioTwo-way talk: noise-reduction mic + high-power speaker
Connectivity & Smart
NetworkWiFi / 4G version (choose one at order)
DetectionHuman motion detection + alarm push
StorageTF card up to 128GB + cloud storage
Environmental
WeatherproofIP65 outdoor waterproof & dustproof
Operating Temperature-20°C ~ +60°C
Packaging
Qty/CTN40 PCS
Color Box170 × 135 × 120 MM
Carton69.5 × 36 × 50 CM
Unit Weight0.6 KG
G.W./CTN20.3 KG
In the BoxScrew kit, manual, DC power adapter
Mobile App
Supported AppV380 Pro (iOS / Android)

Applications

Tight spots, full coverage.

🏢 Apartment Balconies

Coverage without dominating the facade.

🏪 Narrow Storefronts

Two views from a discreet position.

🚪 Side & Back Doors

The doors nobody watches — until now.

🏘️ Townhouse Exteriors

Compact and neighborly, still dual-lens.

🛗 Corridors & Passages

Long zones covered by two angles at once.

🔧 Utility Rooms

Boiler rooms and meter rooms, watched.

Planning a full deployment? See the scenario guides: perimeter security cameras and solar security cameras for farms and ranches.

FAQ

What buyers usually ask.

What's the MOQ for OEM orders?

Trial orders start small — talk to us about your volume. Logo printing, custom packaging and firmware defaults are available on OEM terms; we scale with you from first sample to full containers.

What does dual lens actually give me?

Two lenses, two live views on one screen: one wide-angle lens holds the whole scene while the second covers a tight detail view. Both streams display together in the app — no switching between cameras.

Does the 4G version really work without WiFi?

Yes — the 4G version connects over cellular data with a standard SIM card, so no router, broadband or cabling is needed. If the site has stable WiFi, order the WiFi version instead; both share the same app and features.

Does it need a power connection?

Yes — it runs from the included DC 12V waterproof power adapter. One cable to a socket or low-voltage line is the whole installation; the adapter is sealed for permanent outdoor use.

What certifications are available?

CE, FCC and RoHS compliance for applicable destinations. Tell us your target market and we'll confirm the exact certification package and documentation for your customs clearance.

What about after-sales support?

We're a manufacturer, not a trading desk: spare parts, firmware updates and warranty handling come from our own factory in Shenzhen. Your customers stay supported — and so does your reputation.

Which mobile app do the cameras use?

V380 Pro (iOS / Android) is the companion app — free to download, with live view, playback, PIR push alerts, two-way talk and multi-user sharing. Pair by scanning the QR code on the camera.
