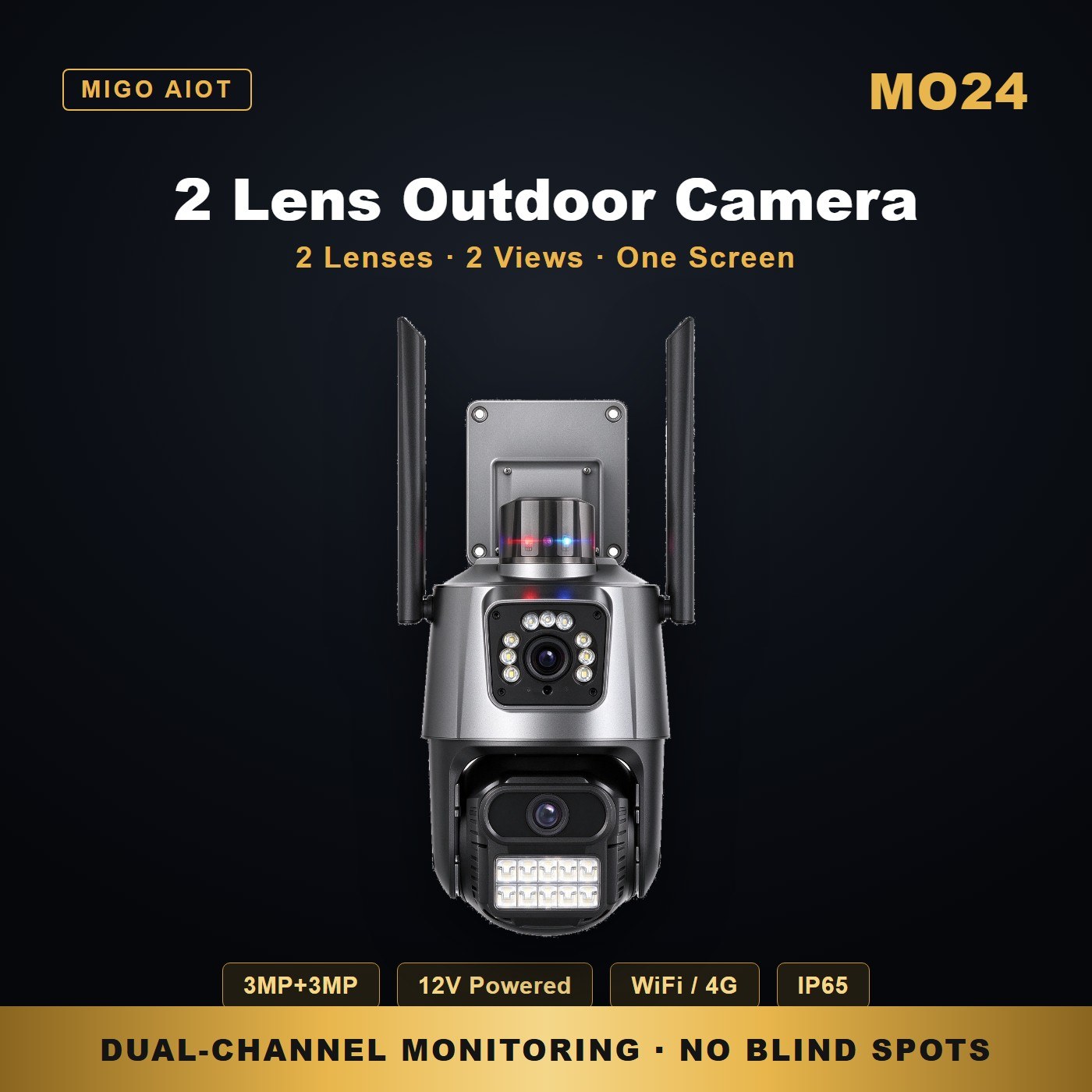

MO24 dual lens camera for shops and warehouses — key features

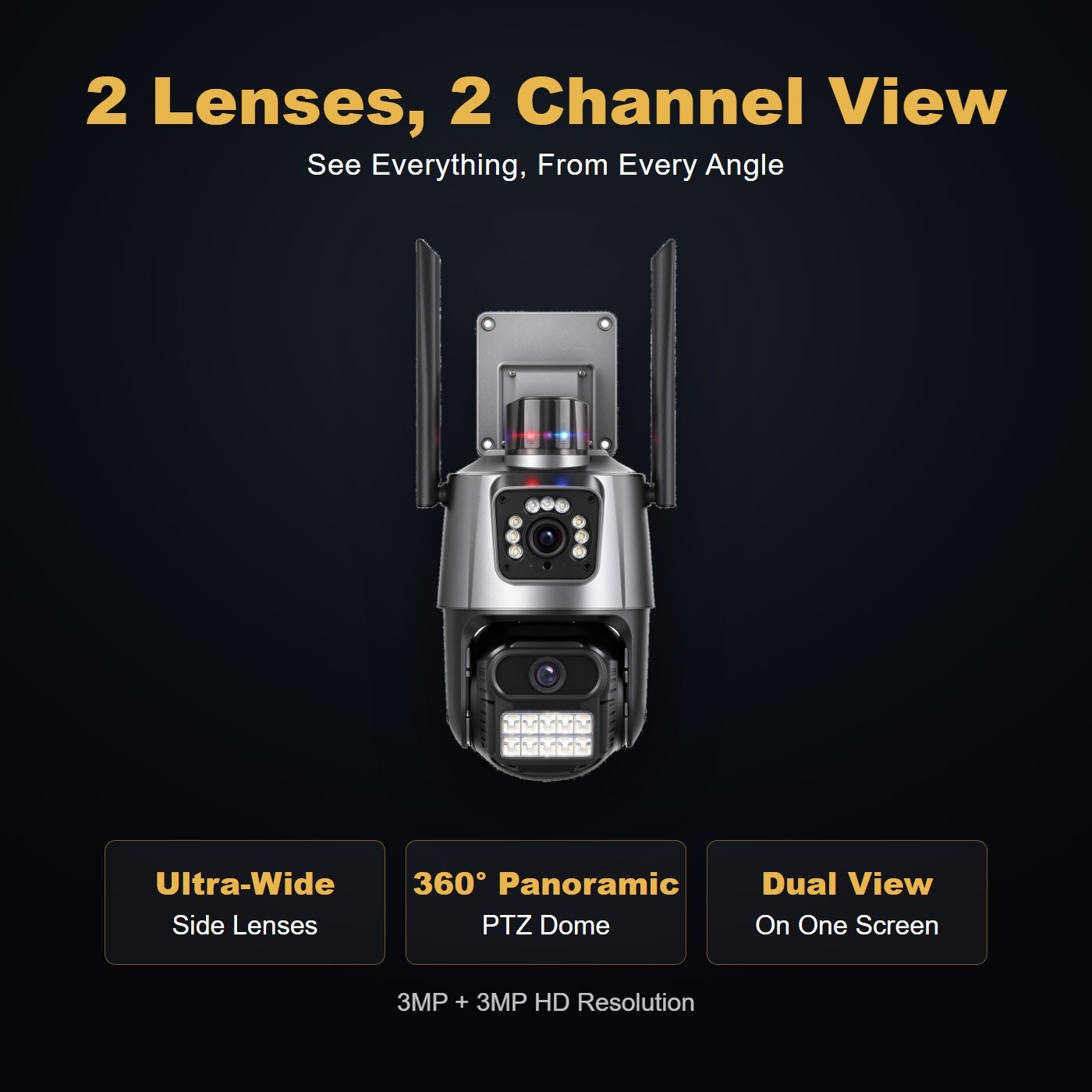

MO24 dual lens camera for shops and warehouses — multi-lens panoramic view

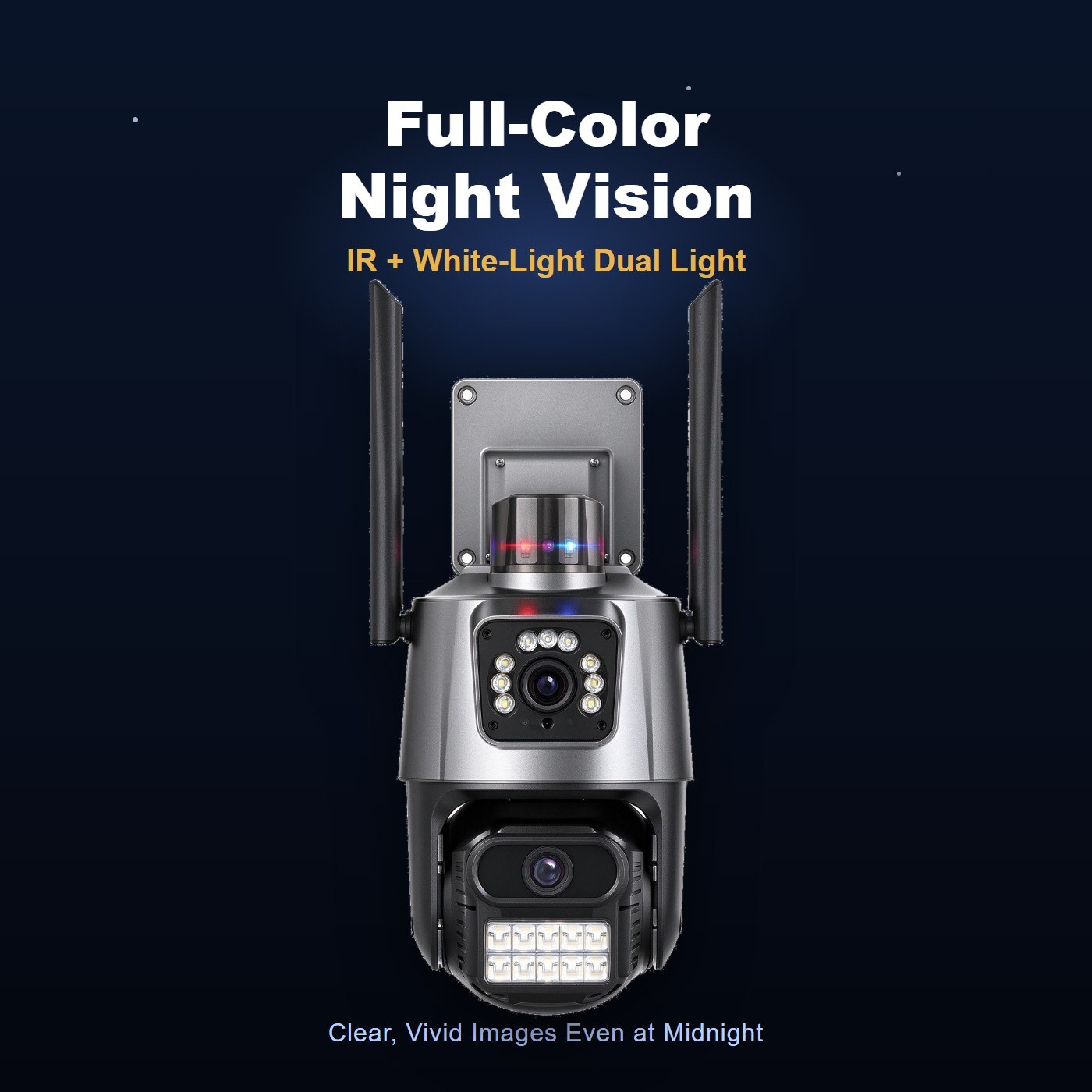

MO24 dual lens camera for shops and warehouses — full color night vision

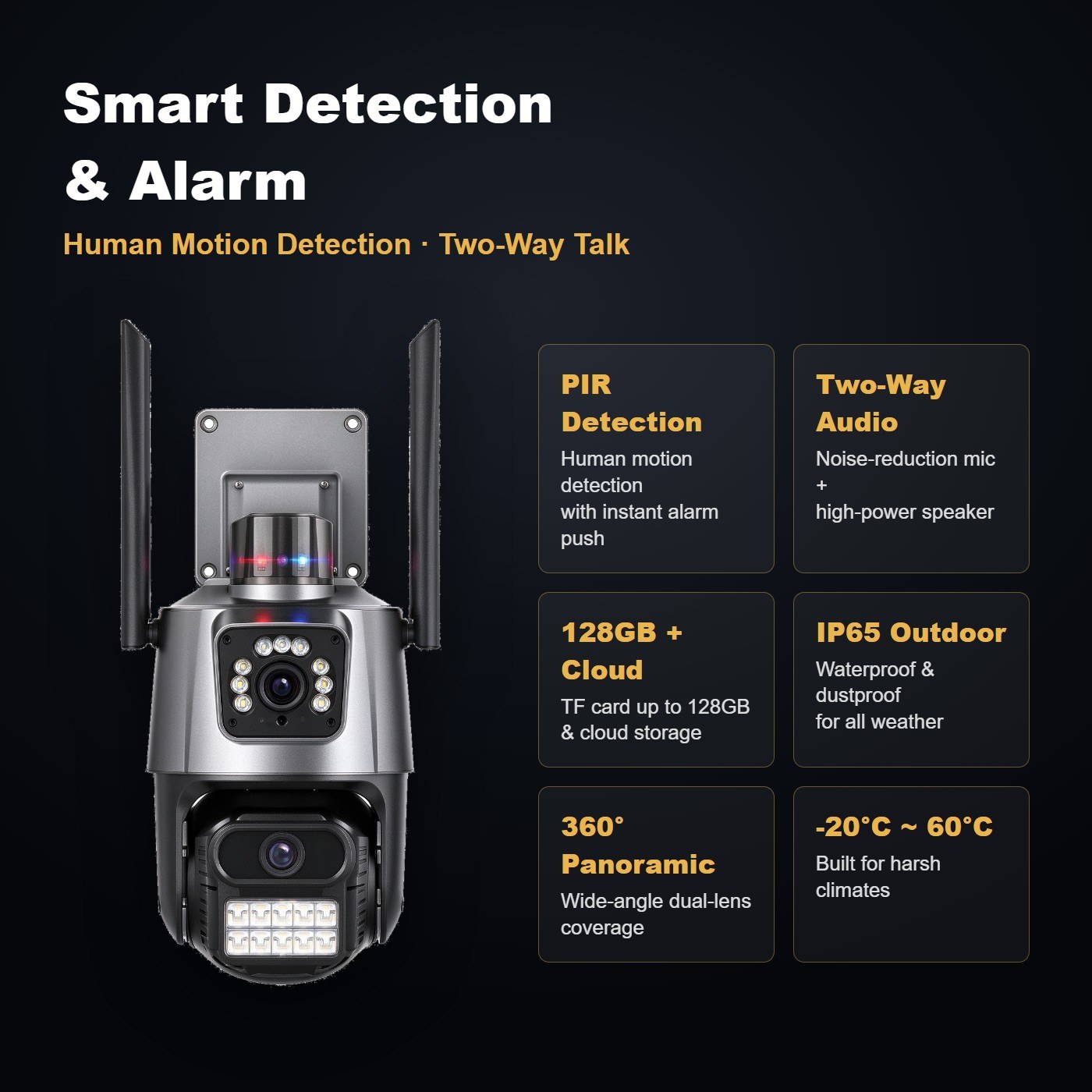

MO24 dual lens camera for shops and warehouses — smart functions and mobile app

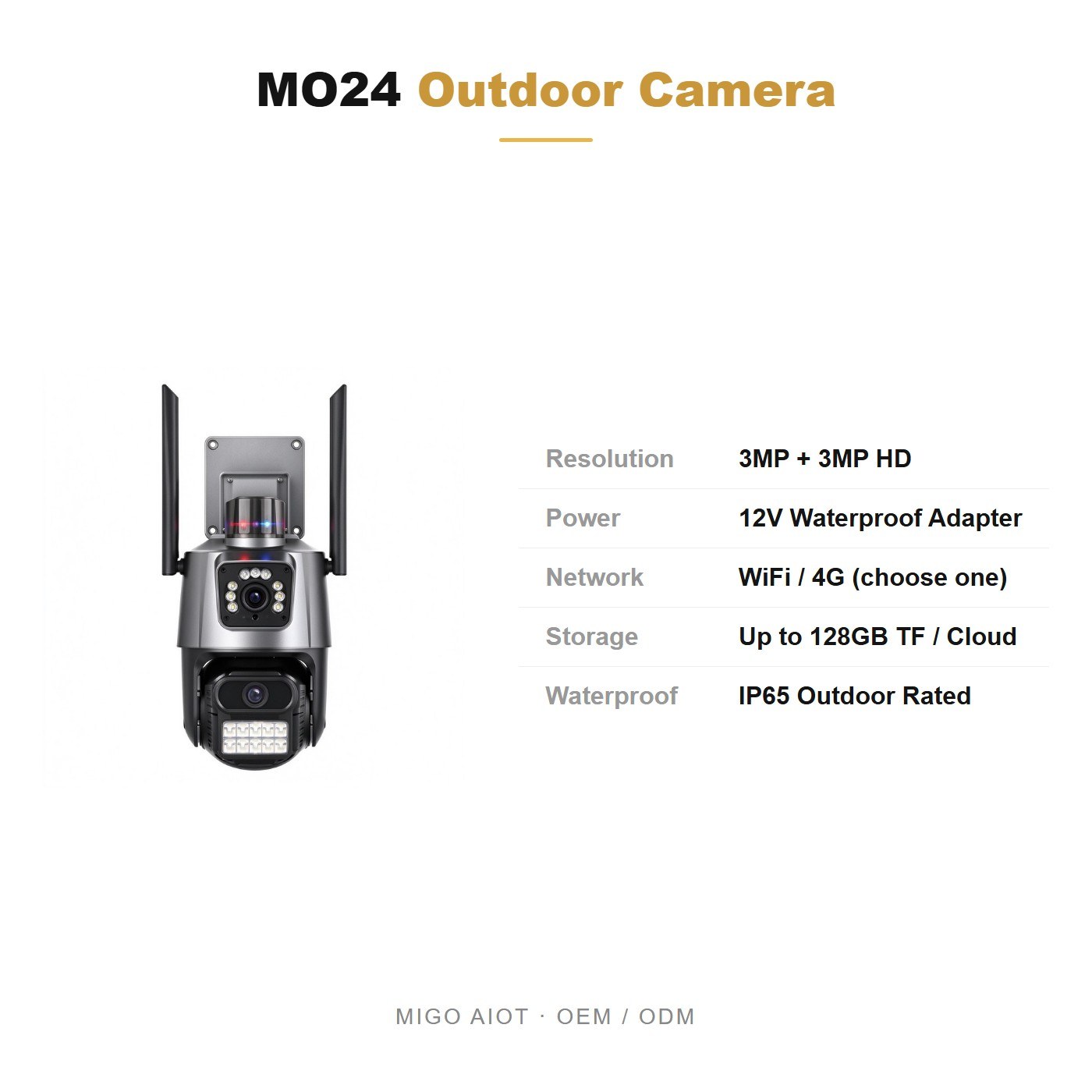

MO24 specifications and OEM terms
Outdoor Series · Site Monitoring

MO24 Dual Lens Outdoor Camera for Shops and Warehouses

Built around commercial monitoring: the MO24 watches the trading floor and the stockroom door, the loading bay and the fence — two 3MP views on one screen from a single IP65 housing.

🏬 Commercial Grade — shops, stores, warehouses
👁️ Dual Lens — 3MP+3MP, 2 views on one screen
📶 WiFi or 4G — works on any site
🌧️ IP65 — sealed for outdoor walls
OEM / ODM available Sample orders welcome Factory-direct since 2016

Why This Camera

One camera where two used to be.

Floor

Trade the floor, watch the stock

Point the wide lens across the trading area and the detail lens at the till or stockroom door — both recorded together, one housing.

Bay

Loading bays after hours

Deliveries and out-of-hours activity get timestamped footage from both views, with push alerts on motion.

4G

Backup for WiFi-less yards

Outer buildings and yards beyond router range: the 4G version connects on a SIM card alone.

Evidence

Detail that holds up

Full-color dual-light night vision keeps both views usable at 2 a.m. — the wide view for the story, the detail view for the identification.

Technical Specifications

The full spec sheet.

Imaging
Resolution3MP + 3MP — 2 lenses, 2 views on one screen
Night VisionIR + white-light dual-light full color
CoverageUltra-wide angle, 360 panoramic view
Optics
Lens Configuration2 fixed lenses, 2 simultaneous views
App ViewBoth streams live on one screen in the app
Power
Power SupplyDC 12V waterproof power adapter
AudioTwo-way talk: noise-reduction mic + high-power speaker
Connectivity & Smart
NetworkWiFi / 4G version (choose one at order)
DetectionHuman motion detection + alarm push
StorageTF card up to 128GB + cloud storage
Environmental
WeatherproofIP65 outdoor waterproof & dustproof
Operating Temperature-20°C ~ +60°C
Packaging
Qty/CTN32 PCS
Color Box240 × 153 × 147 MM
Carton62.7 × 49.5 × 61 CM
Unit Weight0.75 KG
G.W./CTN25.8 KG
In the BoxScrew kit, manual, DC power adapter
Mobile App
Supported AppV380 Pro (iOS / Android)

Applications

Commercial sites it was designed for.

🏬 Warehouses

Aisle coverage plus dock doors from one unit.

🏪 Retail Stores

Shop floor and till area together.

📦 Stockrooms

Entry points and shelf rows, side by side.

🚚 Loading Bays

Vehicle access watched and recorded.

🏭 Light Industrial

Small-factory perimeters and yards.

🛒 Corner Shops

Affordable full coverage for single-owner stores.

Planning a full deployment? See the scenario guides: perimeter security cameras and solar security cameras for farms and ranches.

FAQ

What buyers usually ask.

What's the MOQ for OEM orders?

Trial orders start small — talk to us about your volume. Logo printing, custom packaging and firmware defaults are available on OEM terms; we scale with you from first sample to full containers.

What does dual lens actually give me?

Two lenses, two live views on one screen: one wide-angle lens holds the whole scene while the second covers a tight detail view. Both streams display together in the app — no switching between cameras.

Does it need a power connection?

Yes — it runs from the included DC 12V waterproof power adapter. One cable to a socket or low-voltage line is the whole installation; the adapter is sealed for permanent outdoor use.

Does the 4G version really work without WiFi?

Yes — the 4G version connects over cellular data with a standard SIM card, so no router, broadband or cabling is needed. If the site has stable WiFi, order the WiFi version instead; both share the same app and features.

What certifications are available?

CE, FCC and RoHS compliance for applicable destinations. Tell us your target market and we'll confirm the exact certification package and documentation for your customs clearance.

What about after-sales support?

We're a manufacturer, not a trading desk: spare parts, firmware updates and warranty handling come from our own factory in Shenzhen. Your customers stay supported — and so does your reputation.

Which mobile app do the cameras use?

V380 Pro (iOS / Android) is the companion app — free to download, with live view, playback, PIR push alerts, two-way talk and multi-user sharing. Pair by scanning the QR code on the camera.
