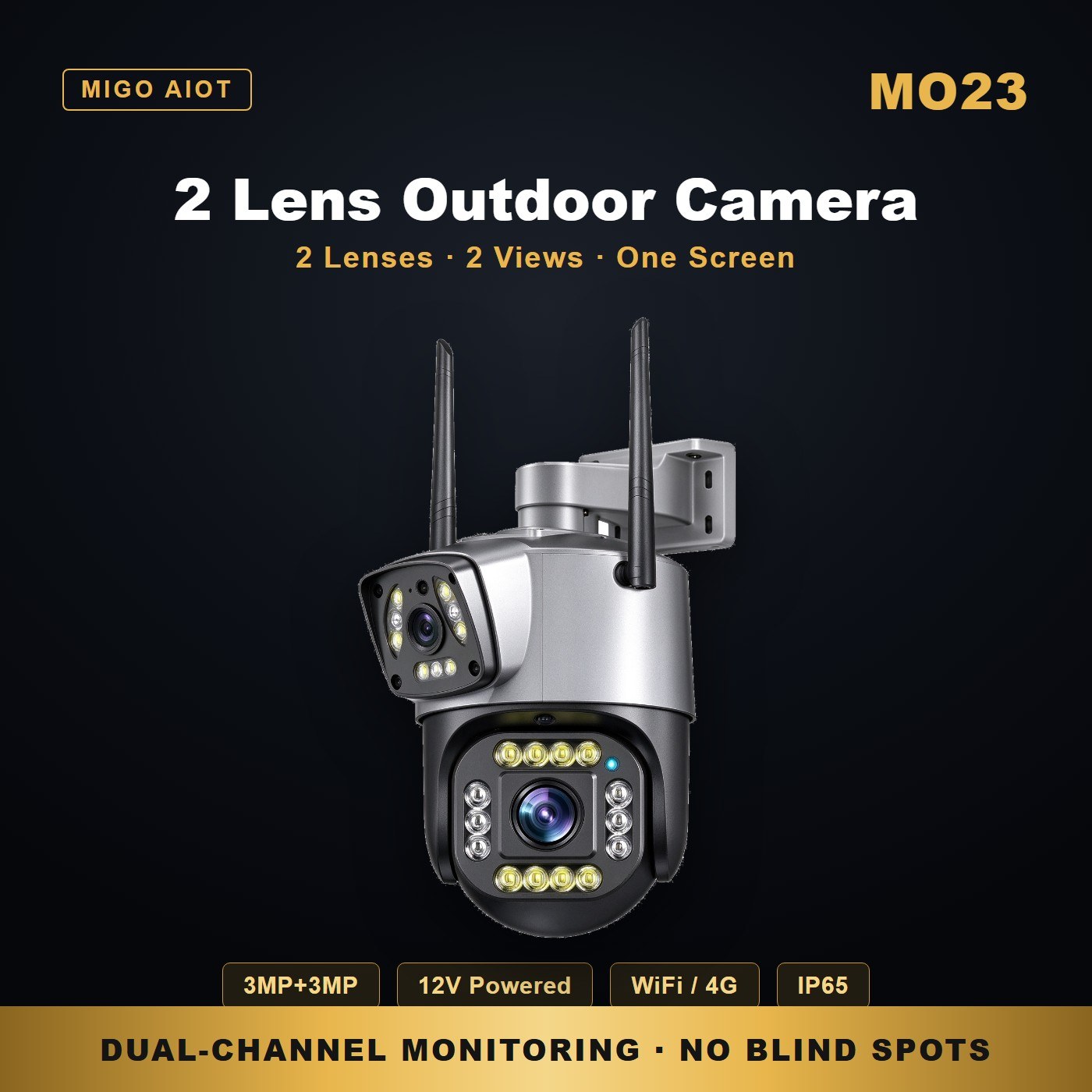

A straightforward dual-lens WiFi camera for sites with a router: mount it, connect, and both 3MP views appear on one screen. The 4G version covers the sites a router cannot reach.
Why This Camera
Standard 2.4G WiFi pairing through the app — no network cabling, no DVR, no installer visit required.
Unlike a rotating camera that records where it happens to point, both MO23 lenses record continuously — the wide view and the detail view, together.
Motion events land on the phone with a thumbnail; open the app and both views are already live.
Sealed against rain and dust for permanent outdoor mounting, from -20°C winters to 60°C sun.

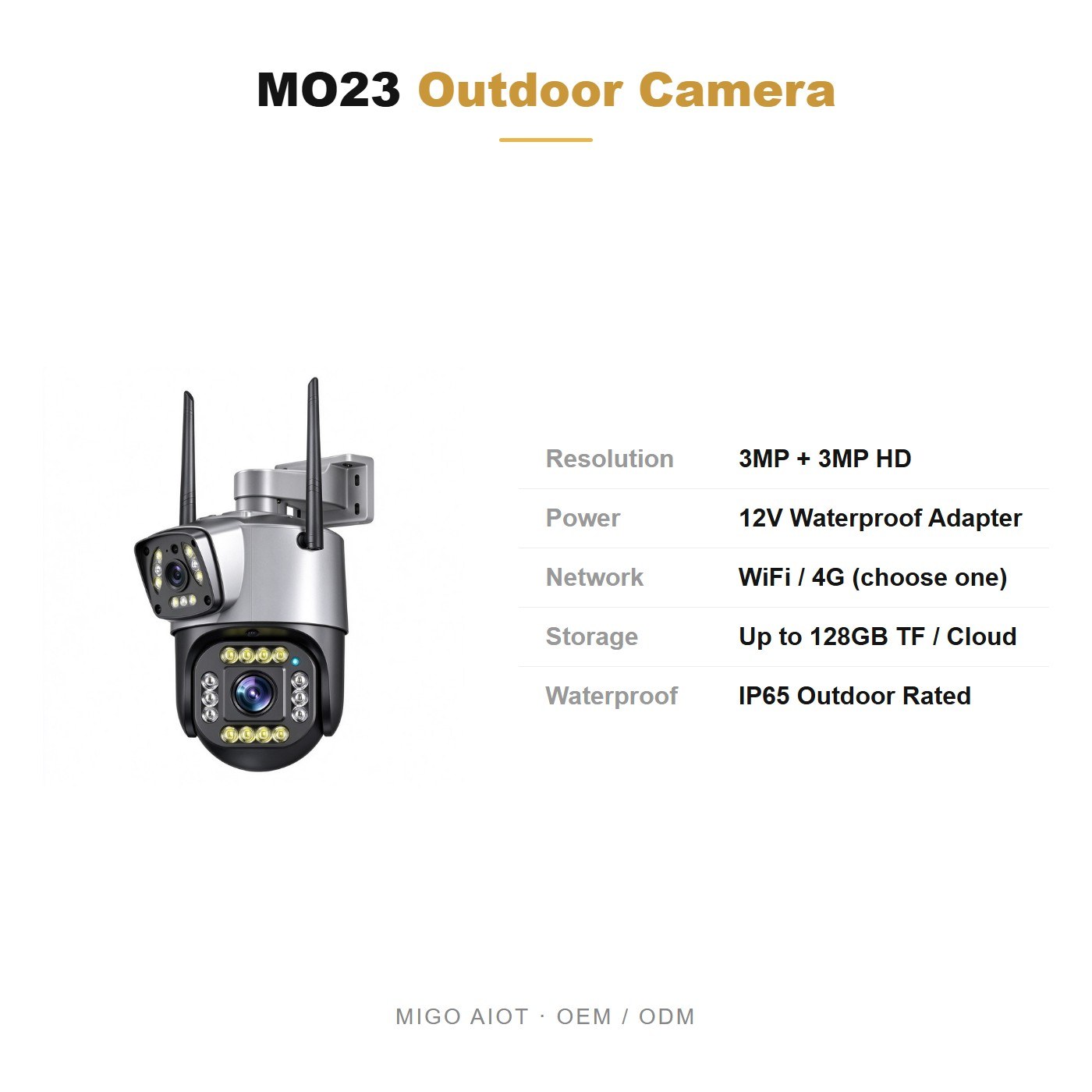

Technical Specifications
| Imaging | |
| Resolution | 3MP + 3MP — 2 lenses, 2 views on one screen |
|---|---|

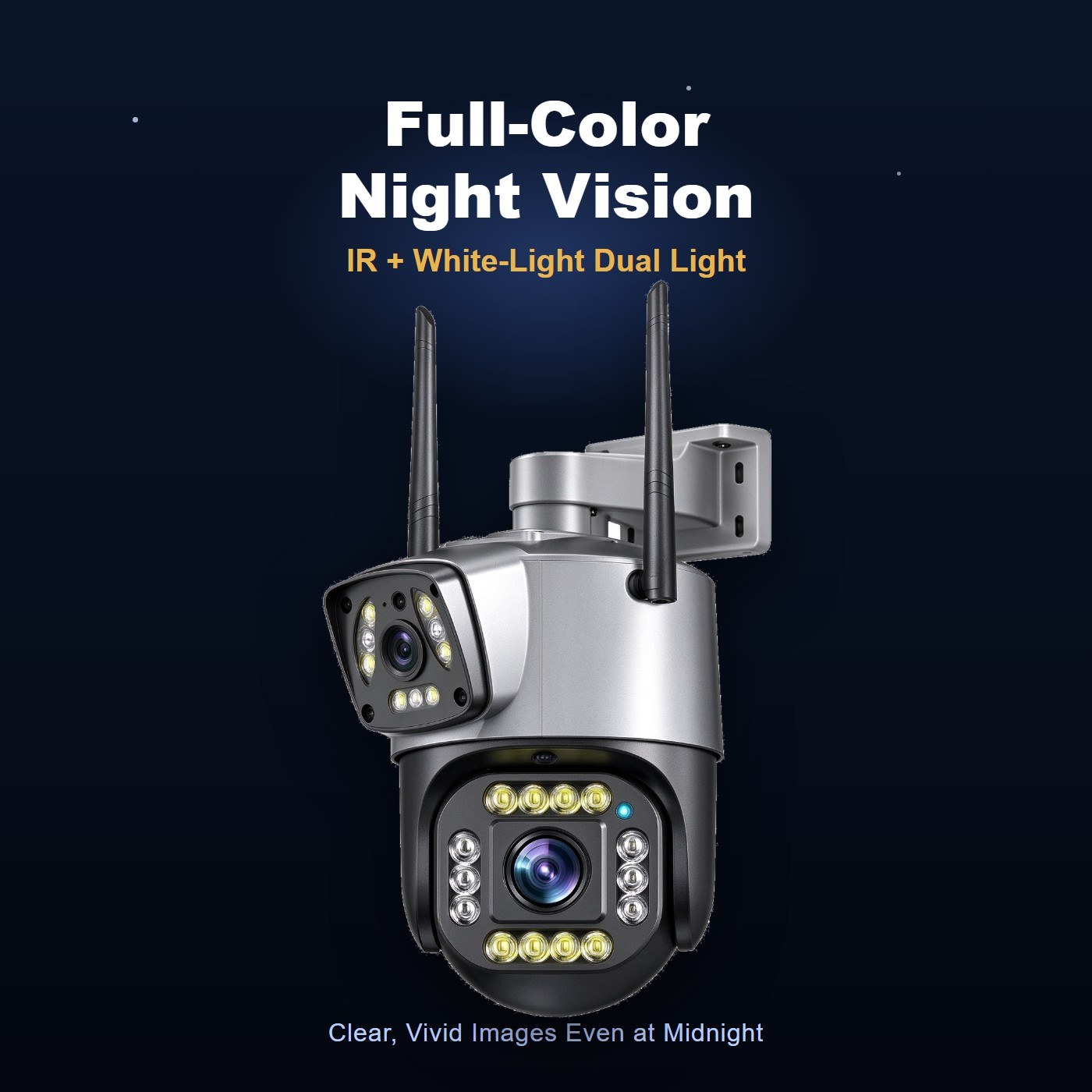

| Night Vision | IR + white-light dual-light full color |
| Coverage | Ultra-wide angle, 360 panoramic view |
| Optics | |
| Lens Configuration | 2 fixed lenses, 2 simultaneous views |
| App View | Both streams live on one screen in the app |
| Power | |
| Power Supply | DC 12V waterproof power adapter |
| Audio | Two-way talk: noise-reduction mic + high-power speaker |
| Connectivity & Smart | |
| Network | WiFi / 4G version (choose one at order) |

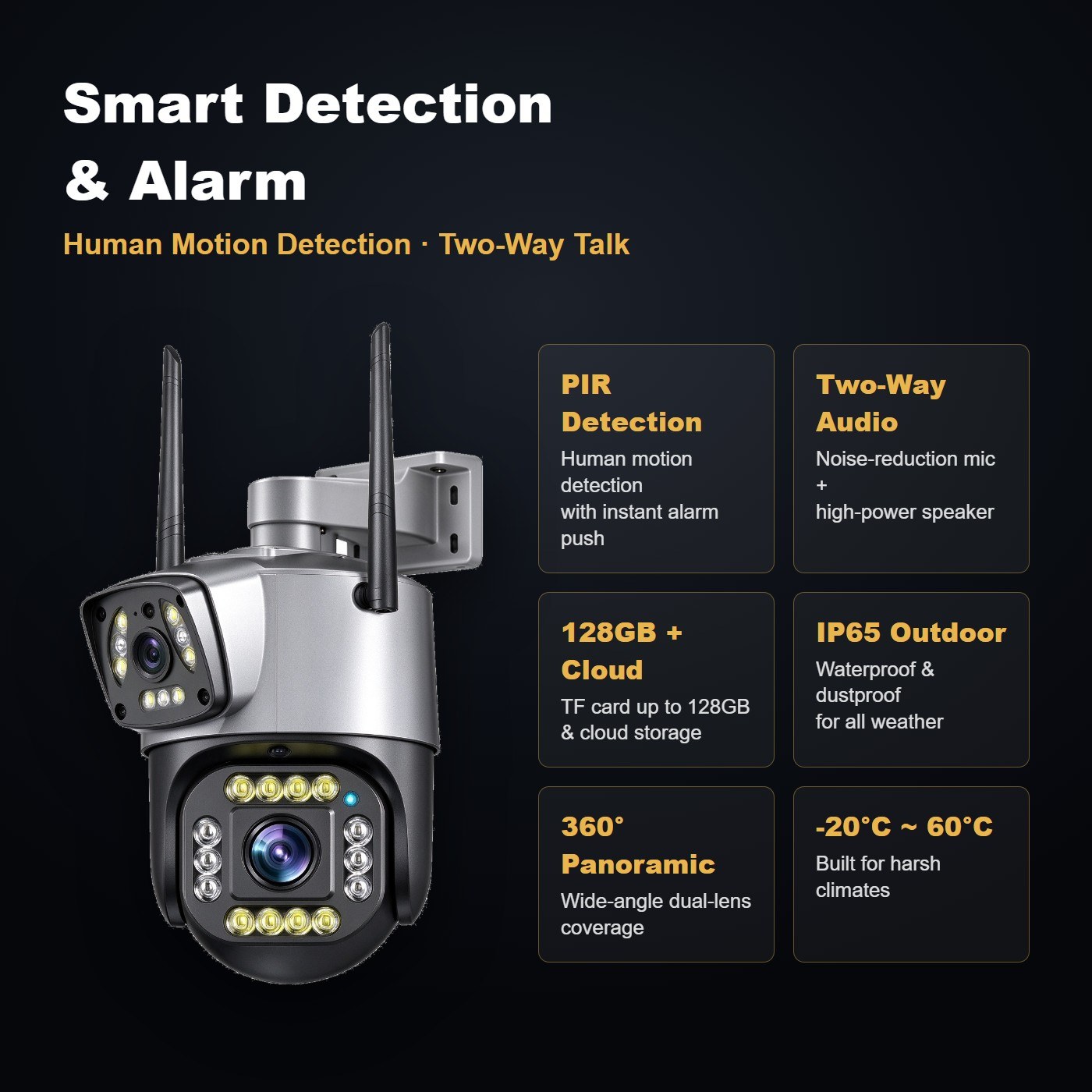

| Detection | Human motion detection + alarm push |
| Storage | TF card up to 128GB + cloud storage |
| Environmental | |
| Weatherproof | IP65 outdoor waterproof & dustproof |
| Operating Temperature | -20°C ~ +60°C |
| Packaging | |
| Qty/CTN | 32 PCS |
| Color Box | 240 × 153 × 147 MM |
| Carton | 62.7 × 49.5 × 61 CM |
| Unit Weight | 0.75 KG |
| G.W./CTN | 25.5 KG |
| In the Box | Screw kit, manual, DC power adapter |
| Mobile App | |
| Supported App | V380 Pro (iOS / Android) |
Applications
The quick path to two-view coverage on one camera.
LAN-free install on existing WiFi.
Entrances and corridors from a single unit.
Night-watch with full-color dual-light vision.
Stock areas and the rear door, together.
Perimeter corners reachable by the router signal.
Planning a full deployment? See the scenario guides: perimeter security cameras and solar security cameras for farms and ranches.
FAQ
Trial orders start small — talk to us about your volume. Logo printing, custom packaging and firmware defaults are available on OEM terms; we scale with you from first sample to full containers.

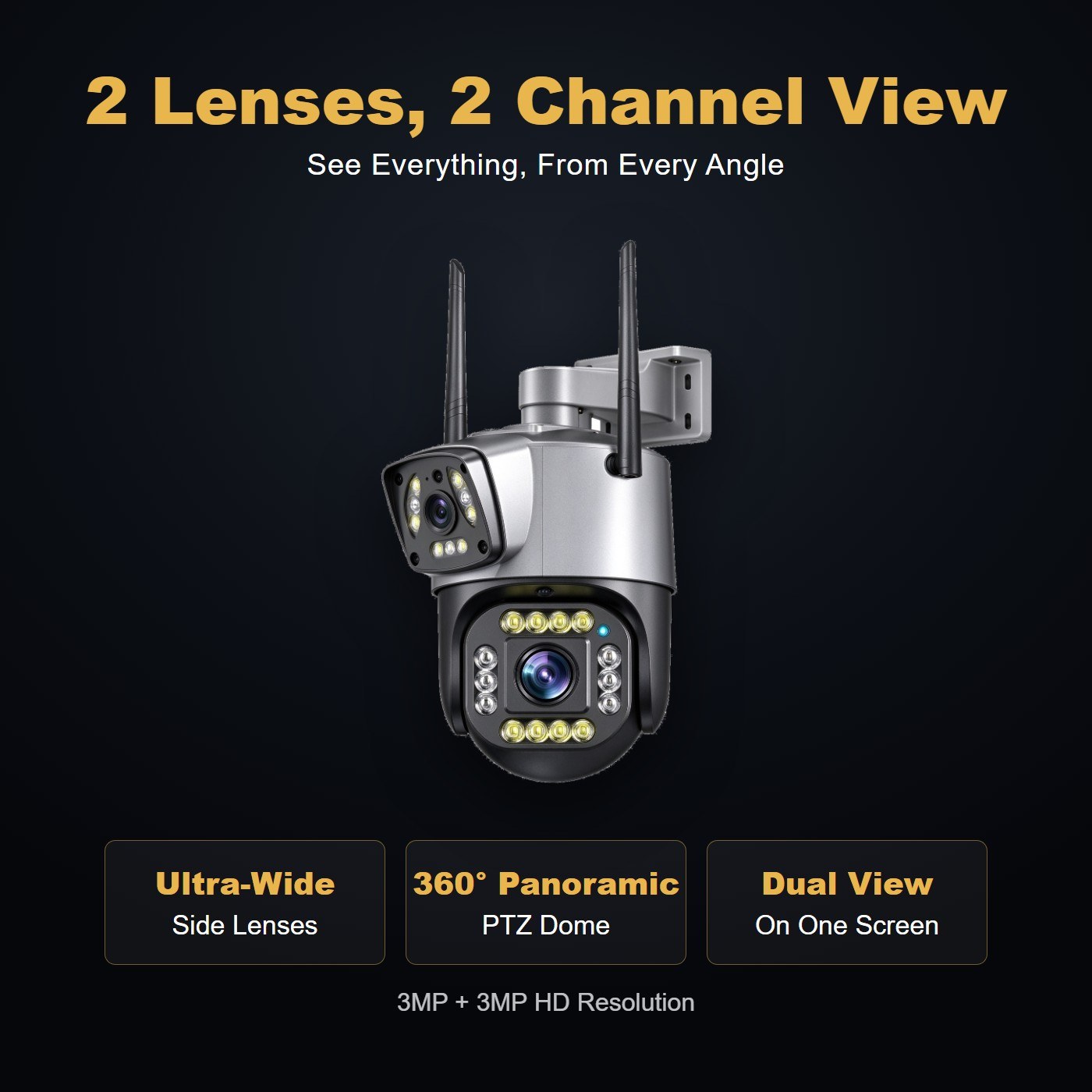

Two lenses, two live views on one screen: one wide-angle lens holds the whole scene while the second covers a tight detail view. Both streams display together in the app — no switching between cameras.
Yes — it runs from the included DC 12V waterproof power adapter. One cable to a socket or low-voltage line is the whole installation; the adapter is sealed for permanent outdoor use.
Yes — the 4G version connects over cellular data with a standard SIM card, so no router, broadband or cabling is needed. If the site has stable WiFi, order the WiFi version instead; both share the same app and features.
CE, FCC and RoHS compliance for applicable destinations. Tell us your target market and we'll confirm the exact certification package and documentation for your customs clearance.
We're a manufacturer, not a trading desk: spare parts, firmware updates and warranty handling come from our own factory in Shenzhen. Your customers stay supported — and so does your reputation.
V380 Pro (iOS / Android) is the companion app — free to download, with live view, playback, PIR push alerts, two-way talk and multi-user sharing. Pair by scanning the QR code on the camera.
Request a Quote
Quantities, target market, customization needs — the more detail, the sharper the quote. Typical reply within 24 hours.
