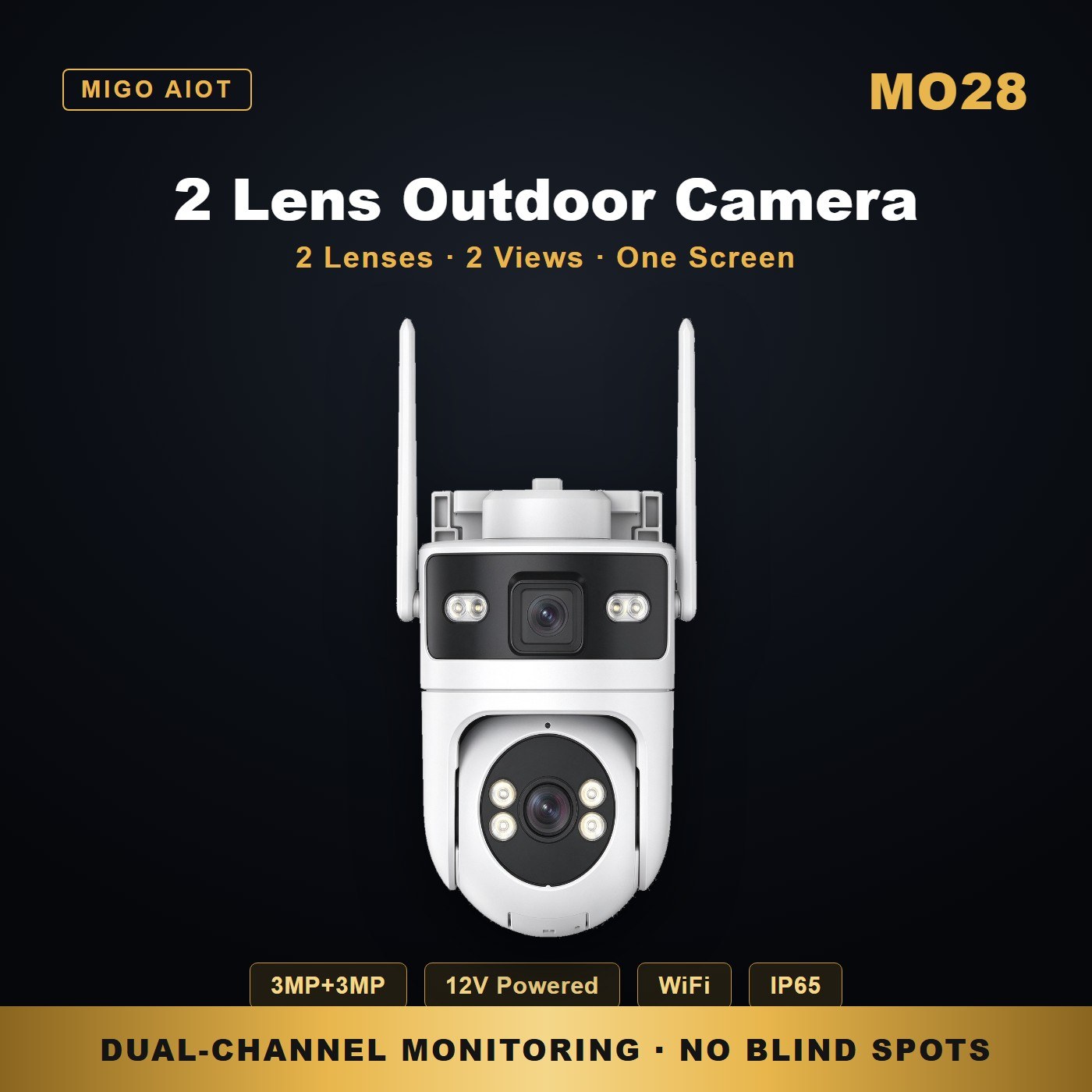

MO28 dual lens wifi camera 12V — key features

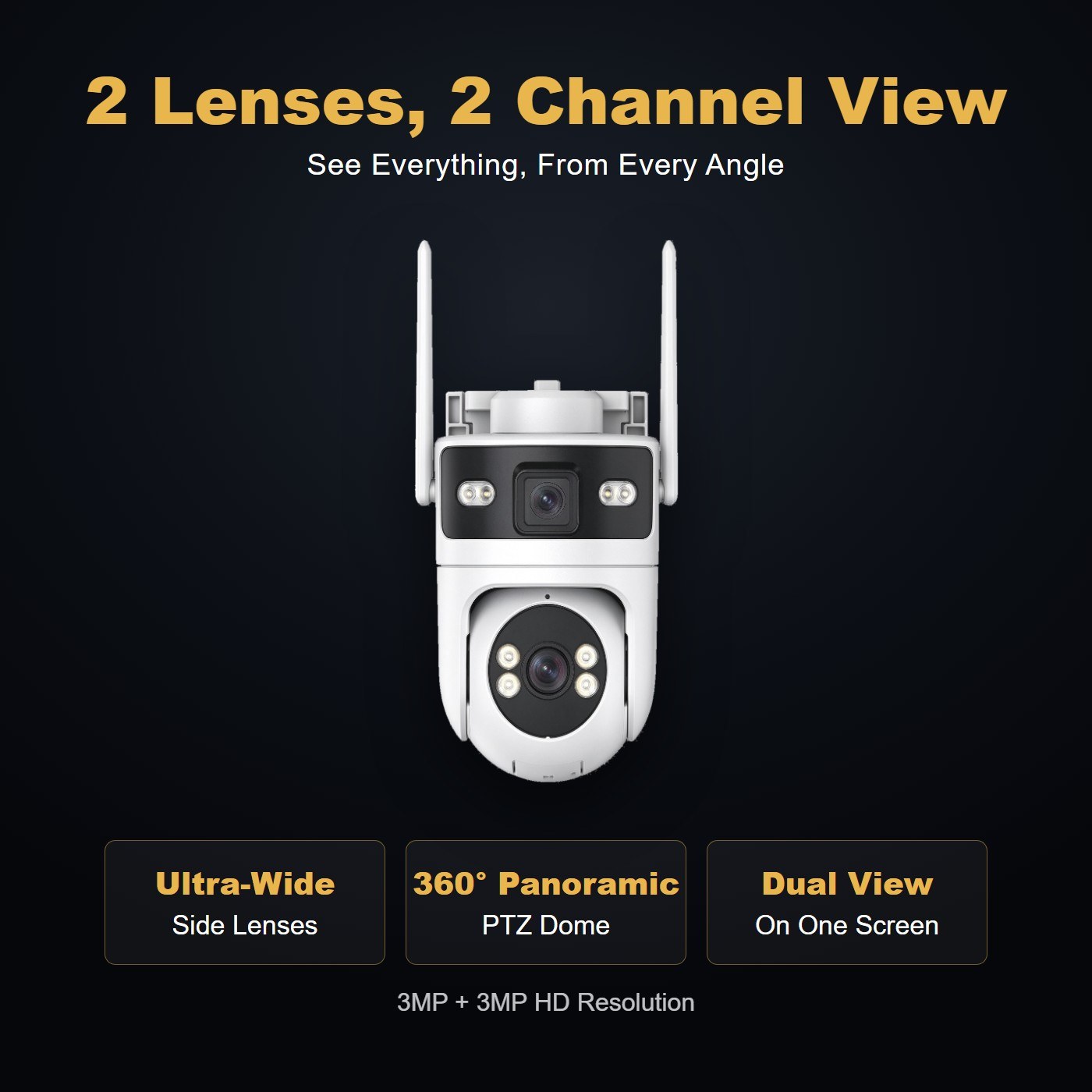

MO28 dual lens wifi camera 12V — multi-lens panoramic view

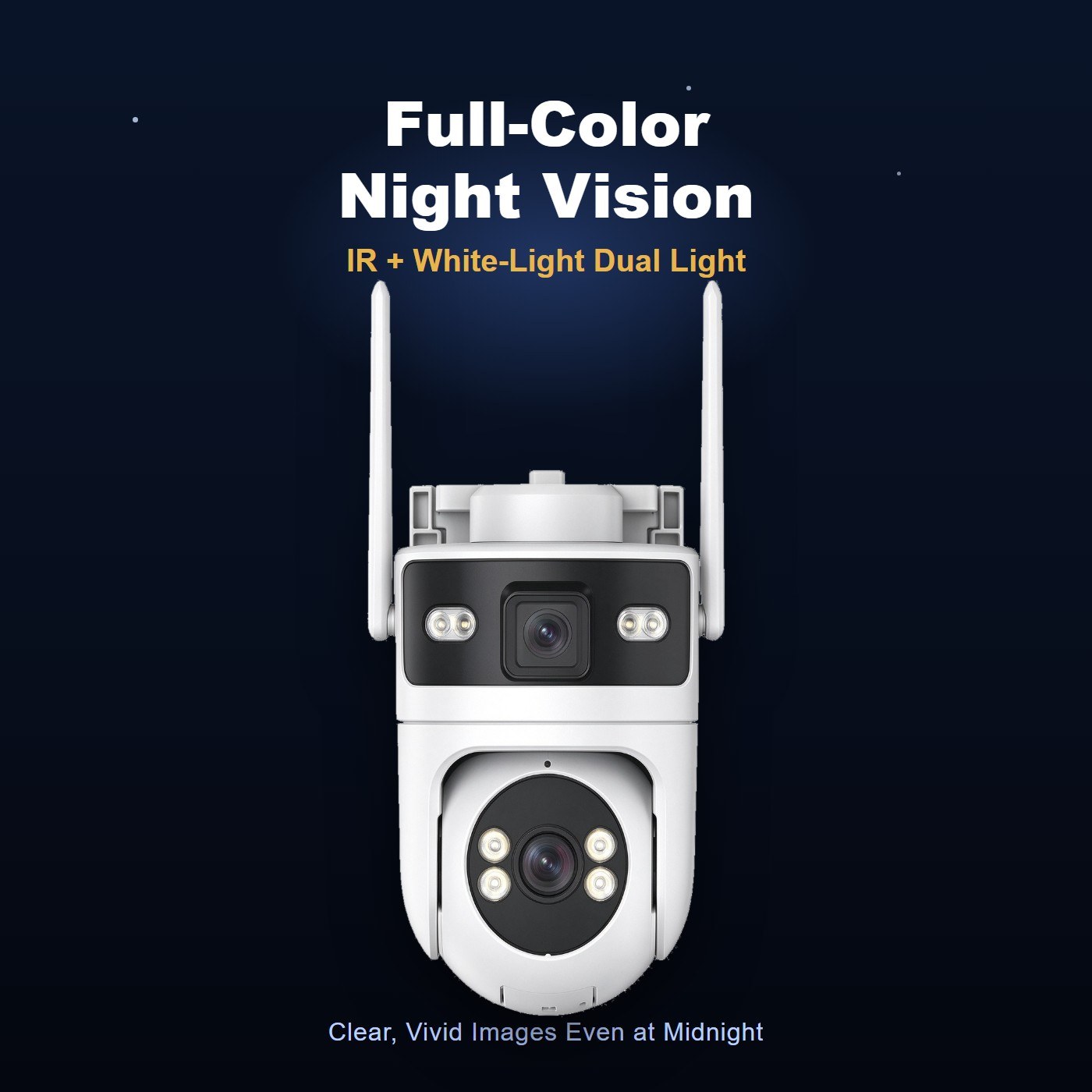

MO28 dual lens wifi camera 12V — full color night vision

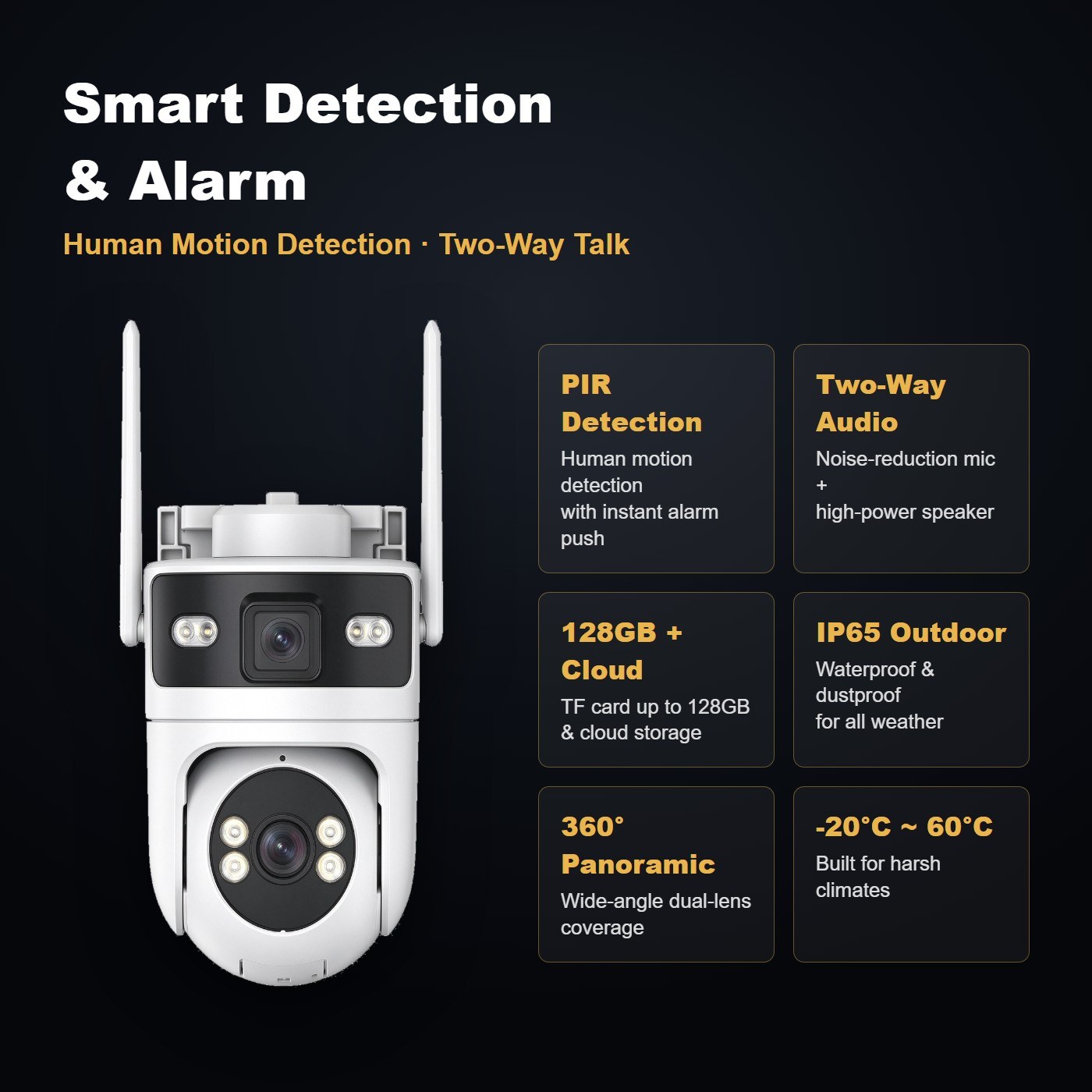

MO28 dual lens wifi camera 12V — smart functions and mobile app

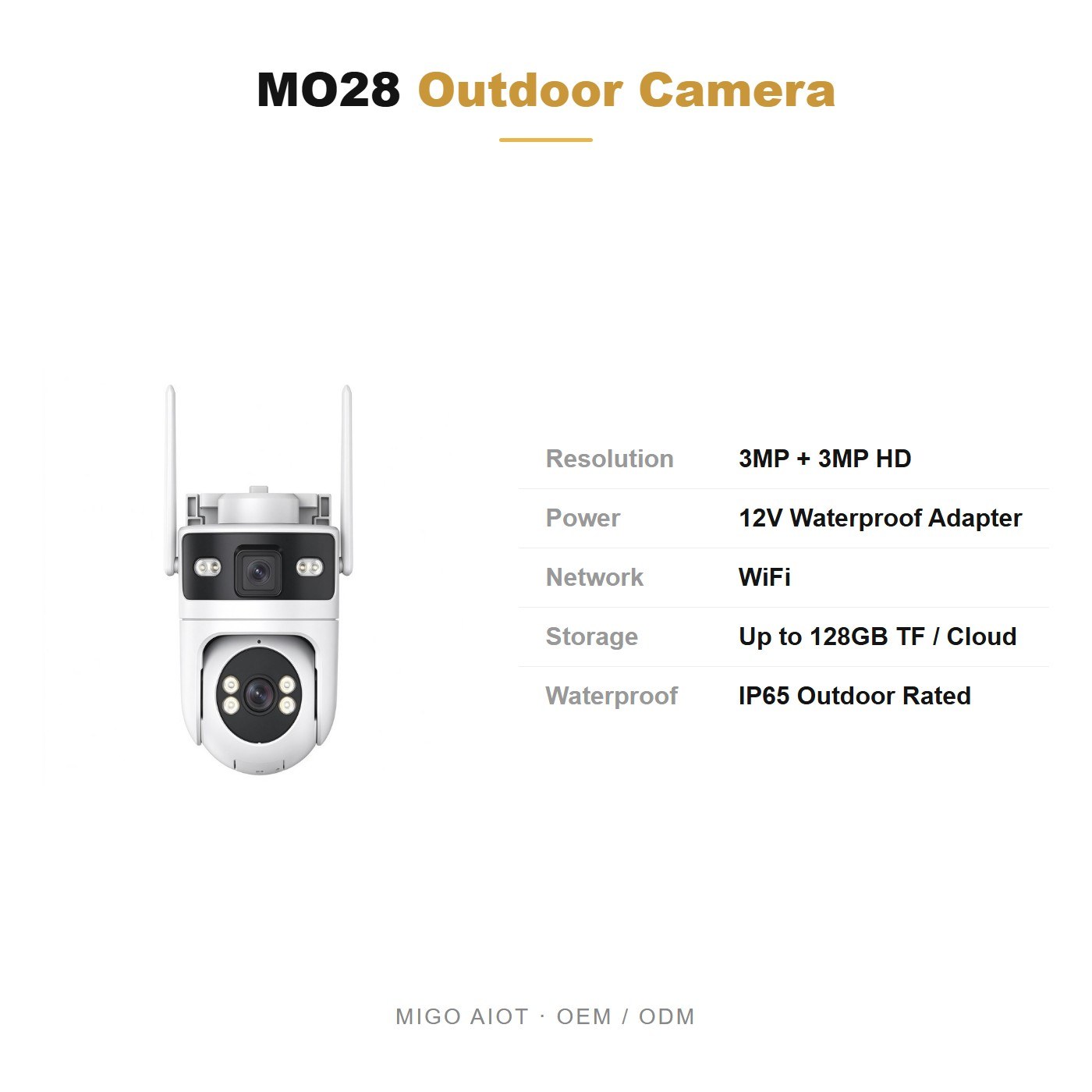

MO28 specifications and OEM terms
Outdoor Series · Plug-In 12V

MO28 Dual Lens Outdoor Camera, WiFi, 12V Powered

A 12V-powered dual-lens for installs where a low-voltage line is already there: gate controllers, alarm systems, landscape lighting. WiFi for data, 12V for power, no LAN port.

⚡ 12V Powered — taps existing low-voltage lines
👁️ Dual Lens — 3MP+3MP, 2 views on one screen
📶 WiFi Connected — no LAN port needed
🌧️ IP65 — sealed for outdoors
OEM / ODM available Sample orders welcome Factory-direct since 2016

Why This Camera

12 volts. That is all it asks.

12V

Power that is already on site

Gate motors, intercom systems and landscape lighting all run on 12V — the MO28 taps the same line instead of pulling a new circuit to the camera.

WiFi

Data over the air, nothing through the wall

No LAN port and no network drilling: connect via WiFi and both views are live on the phone.

2×

Two views from the gate post

Wide view down the street plus detail on the gate itself — exactly the pairing perimeter entrances need.

IP65

Weatherproof, always

The sealed housing and waterproof adapter handle outdoor duty on a post or pole through the seasons.

Technical Specifications

The full spec sheet.

Imaging
Resolution3MP + 3MP — 2 lenses, 2 views on one screen
Night VisionIR + white-light dual-light full color
CoverageUltra-wide angle, 360 panoramic view
Optics
Lens Configuration2 fixed lenses, 2 simultaneous views
App ViewBoth streams live on one screen in the app
Power
Power SupplyDC 12V waterproof power adapter (no LAN port)
AudioTwo-way talk: noise-reduction mic + high-power speaker
Connectivity & Smart
NetworkWiFi / 4G version (choose one at order)
DetectionHuman motion detection + alarm push
StorageTF card up to 128GB + cloud storage
Environmental
WeatherproofIP65 outdoor waterproof & dustproof
Operating Temperature-20°C ~ +60°C
Packaging
Qty/CTN40 PCS
Color Box170 × 145 × 112 MM
Carton59.5 × 35.5 × 58 CM
Unit Weight0.58 KG
G.W./CTN18 KG
In the BoxScrew kit, manual, DC power adapter
Mobile App
Supported AppV380 Pro (iOS / Android)

Applications

Where 12V already runs.

🚪 Motorized Gates

Tap the gate controller supply for camera power.

🔔 Intercom & Alarm Posts

Reuse existing 12V lines at the entrance.

💡 Landscape Lighting

Share the low-voltage garden circuit.

🏘️ Compound Entrances

Community gates with existing wiring.

🏭 Fence Lines

12V runs along fences feed cameras cheaply.

🏠 Porch & Carport Posts

Low-voltage handy, WiFi in range.

Planning a full deployment? See the scenario guides: perimeter security cameras and solar security cameras for farms and ranches.

FAQ

What buyers usually ask.

What's the MOQ for OEM orders?

Trial orders start small — talk to us about your volume. Logo printing, custom packaging and firmware defaults are available on OEM terms; we scale with you from first sample to full containers.

What does dual lens actually give me?

Two lenses, two live views on one screen: one wide-angle lens holds the whole scene while the second covers a tight detail view. Both streams display together in the app — no switching between cameras.

Does it need a power connection?

Yes — it runs from the included DC 12V waterproof power adapter. One cable to a socket or low-voltage line is the whole installation; the adapter is sealed for permanent outdoor use.

What certifications are available?

CE, FCC and RoHS compliance for applicable destinations. Tell us your target market and we'll confirm the exact certification package and documentation for your customs clearance.

What about after-sales support?

We're a manufacturer, not a trading desk: spare parts, firmware updates and warranty handling come from our own factory in Shenzhen. Your customers stay supported — and so does your reputation.

Which mobile app do the cameras use?

V380 Pro (iOS / Android) is the companion app — free to download, with live view, playback, PIR push alerts, two-way talk and multi-user sharing. Pair by scanning the QR code on the camera.
