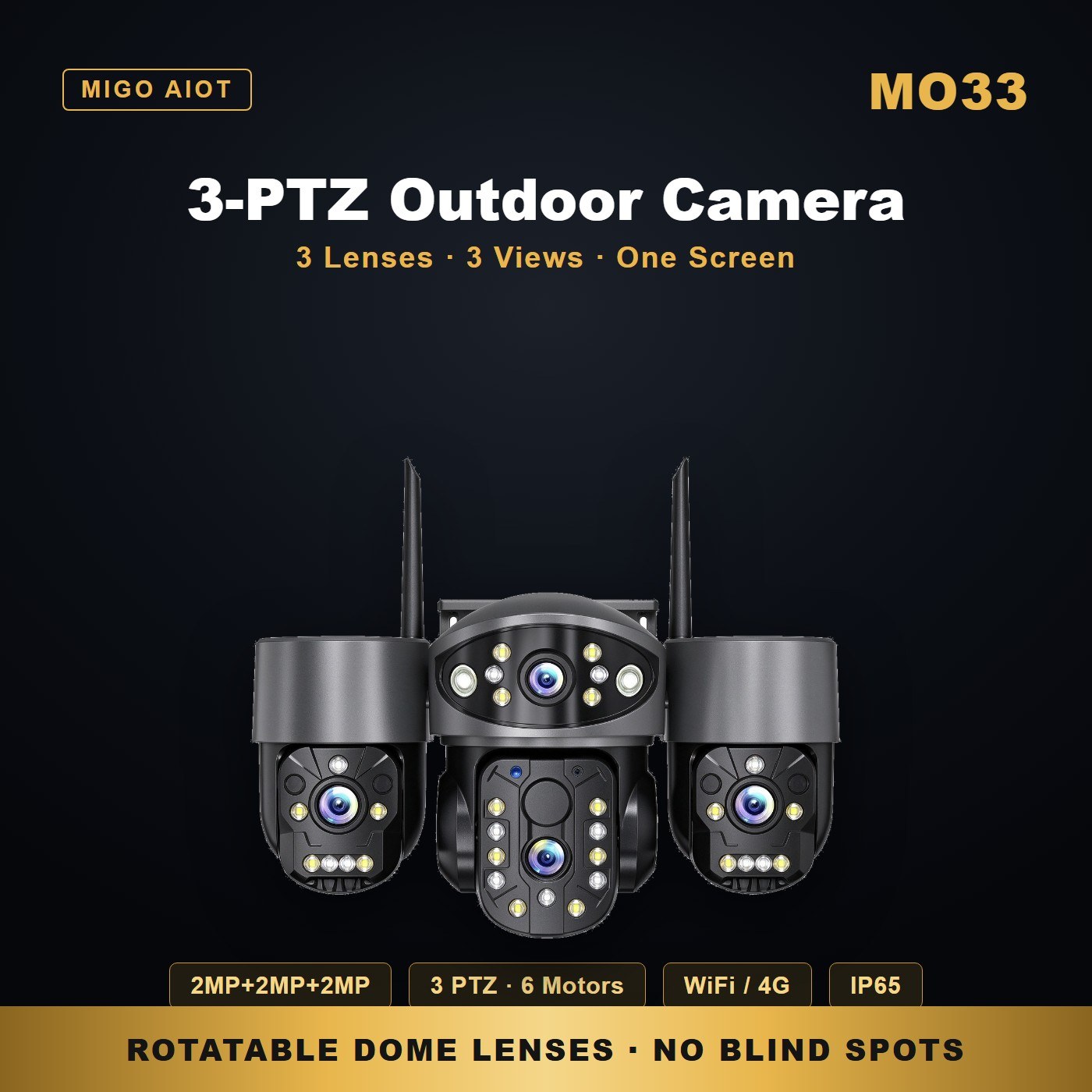

MO33 3 lens PTZ camera — key features

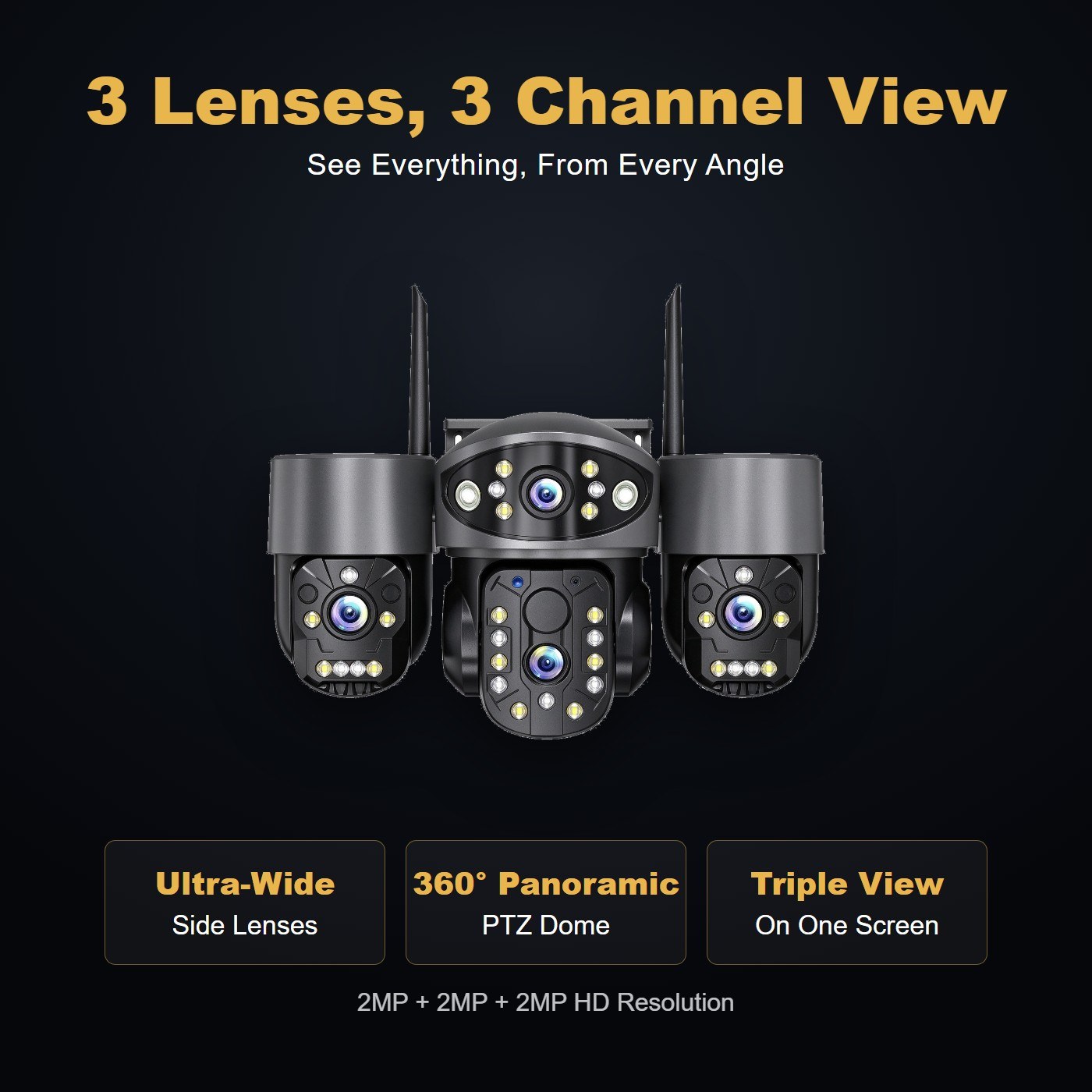

MO33 3 lens PTZ camera — multi-lens panoramic view

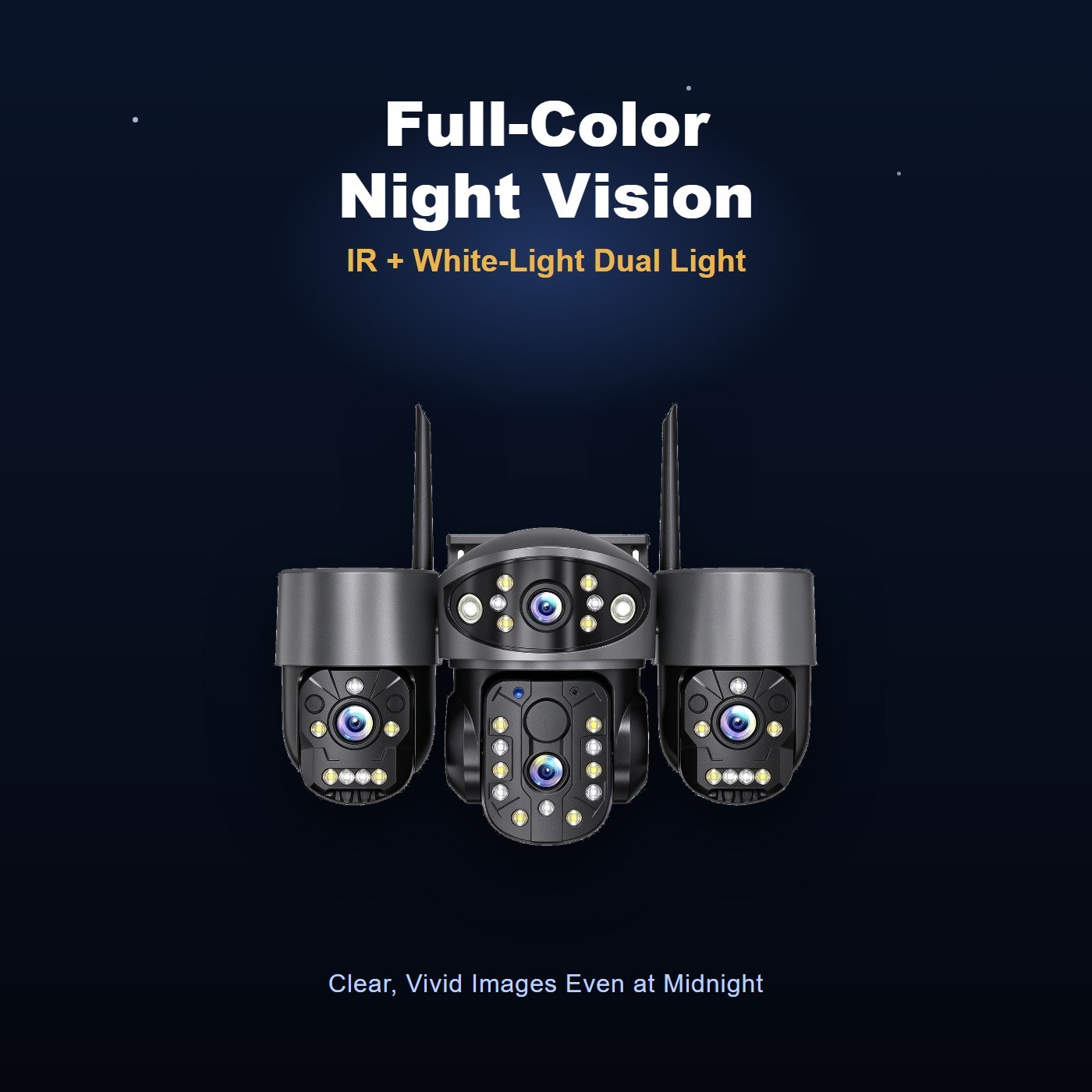

MO33 3 lens PTZ camera — full color night vision

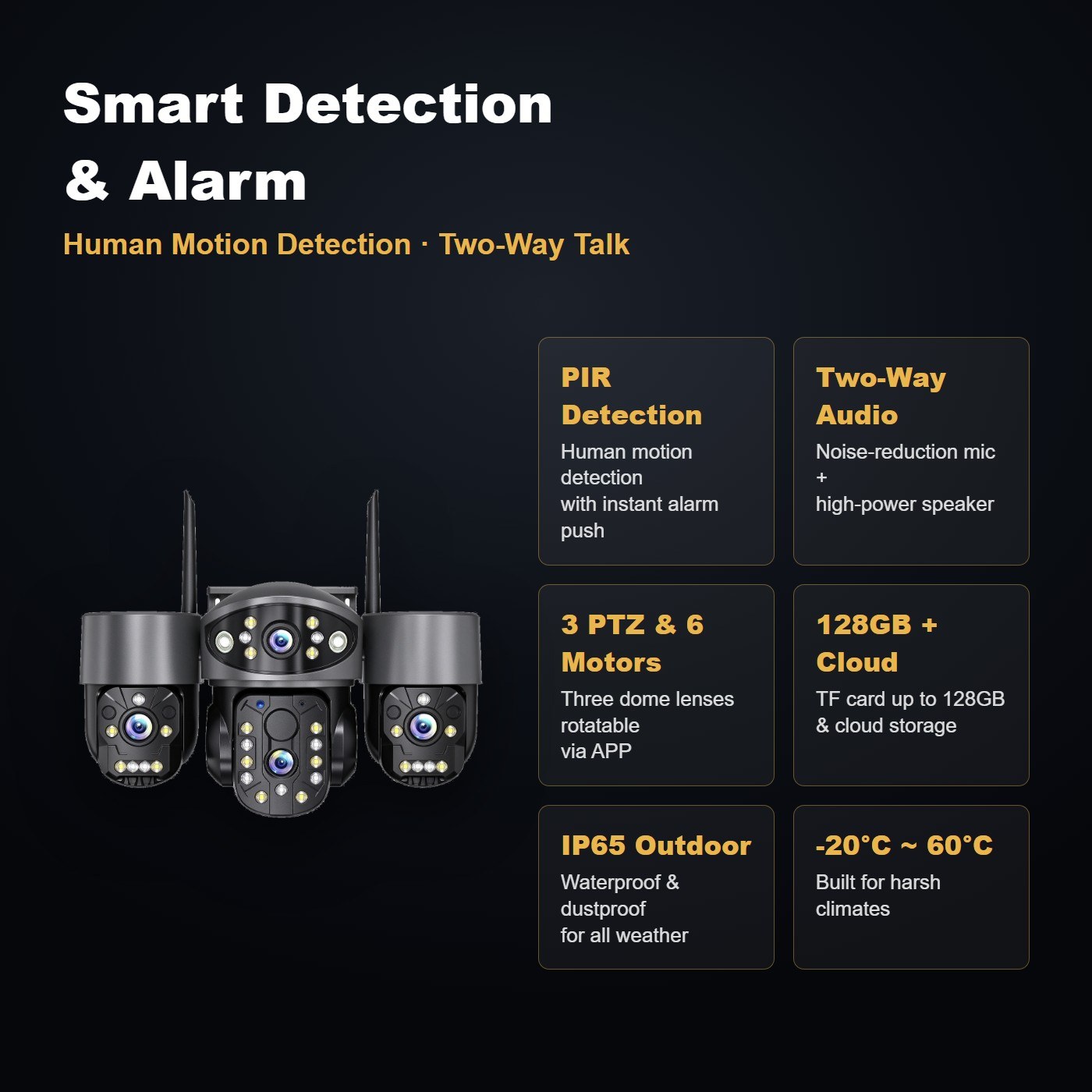

MO33 3 lens PTZ camera — smart functions and mobile app

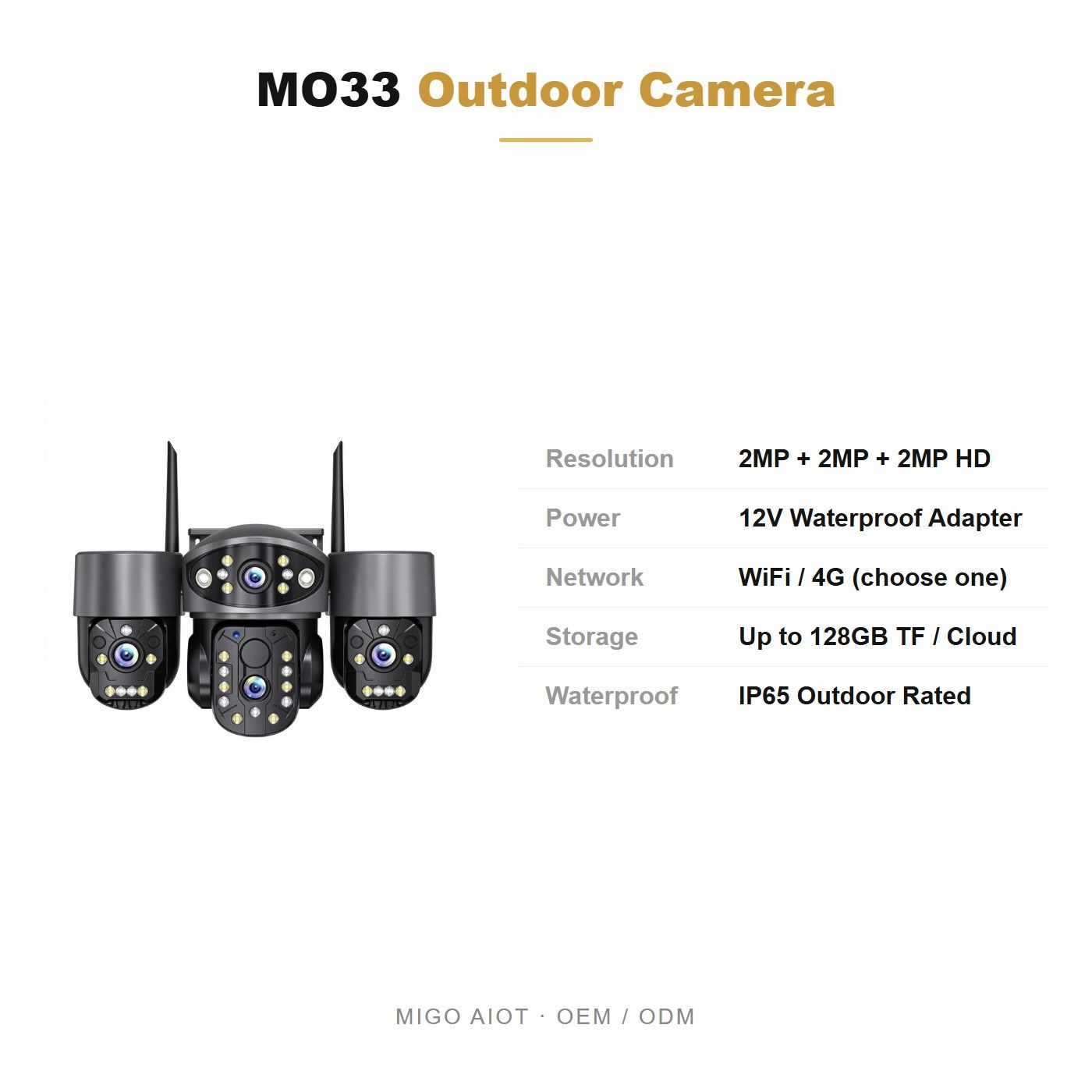

MO33 specifications and OEM terms
Outdoor Series · 3×PTZ Domes

MO33 3-Lens PTZ Outdoor Camera with 3 Aimable Dome Lenses

Three motorized domes, six motors, one screen. Each MO33 lens is aimable from the app — reposition all three views remotely while every lens keeps recording.

🎮 3 PTZ × 6 Motors — aim each dome from the app
👁️ 3 Lenses, 3 Views — all on one screen
📶 WiFi or 4G — works on any site
🌧️ IP65 — outdoor rated
OEM / ODM available Sample orders welcome Factory-direct since 2016

Why This Camera

Aim all three lenses without a ladder.

6

Motors, 3 domes × 2 axes

Each of the three dome lenses pans and tilts on its own motor pair. Adjust every view from your phone — no re-mounting, no ladder, no second visit.

3×

Three views that keep recording

Unlike a single PTZ that must choose one direction, all three lenses stream simultaneously while aiming — nothing stops recording to turn around.

Wide

Coverage from one junction point

Point one lens down each street and one at the entrance: a T-junction or compound gate gets full coverage from a single pole.

IP65

Outdoor duty, all axes sealed

Motorized does not mean fragile: the domes are sealed against rain and dust for permanent outdoor work.

Technical Specifications

The full spec sheet.

Imaging
Resolution2MP + 2MP + 2MP — 3 lenses, 3 views on one screen
Night VisionIR + white-light dual-light full color
CoverageUltra-wide angle, 360 panoramic view
Optics
Lens Configuration3 fixed lenses, 3 simultaneous views
App ViewAll three streams live on one screen in the app
PTZ Control3 motorized domes × 6 motors, aimable in the app
Power
Power SupplyDC 12V waterproof power adapter
AudioTwo-way talk: noise-reduction mic + high-power speaker
Connectivity & Smart
NetworkWiFi / 4G version (choose one at order)
DetectionHuman motion detection + alarm push
StorageTF card up to 128GB + cloud storage
Environmental
WeatherproofIP65 outdoor waterproof & dustproof
Operating Temperature-20°C ~ +60°C
Packaging
Qty/CTN24 PCS
Color Box225 × 210 × 220 MM
Carton86 × 46.5 × 68 CM
Unit Weight0.8 KG
G.W./CTN20 KG
In the BoxScrew kit, manual, DC 12V power adapter
Mobile App
Supported AppV380 Pro (iOS / Android)

Applications

Junctions, gates and wide yards.

🔀 Street Junctions

One camera aims down three directions at once.

🚪 Compound Gates

Entrance, approach and visitor lane, all live.

🏟️ Open Yards

Re-aim lenses as site layout and risks change.

🅿️ Multi-Row Parking

Adjust dome angles per row without re-installing.

🏭 Industrial Sites

Wide plants covered from one mounting point.

🏬 Building Corners

Two facades plus the corner from one unit.

Planning a full deployment? See the scenario guides: perimeter security cameras and solar security cameras for farms and ranches.

FAQ

What buyers usually ask.

What's the MOQ for OEM orders?

Trial orders start small — talk to us about your volume. Logo printing, custom packaging and firmware defaults are available on OEM terms; we scale with you from first sample to full containers.

Why three lenses instead of one PTZ?

A pan camera only looks where it is pointed at that moment. Three fixed lenses run simultaneously, so the approach, the wide field and the detail view are all recorded at once — nothing is missed while the camera 'turns around'.

Does the 4G version really work without WiFi?

Yes — the 4G version connects over cellular data with a standard SIM card, so no router, broadband or cabling is needed. If the site has stable WiFi, order the WiFi version instead; both share the same app and features.

Does it need a power connection?

Yes — it runs from the included DC 12V waterproof power adapter. One cable to a socket or low-voltage line is the whole installation; the adapter is sealed for permanent outdoor use.

What certifications are available?

CE, FCC and RoHS compliance for applicable destinations. Tell us your target market and we'll confirm the exact certification package and documentation for your customs clearance.

What about after-sales support?

We're a manufacturer, not a trading desk: spare parts, firmware updates and warranty handling come from our own factory in Shenzhen. Your customers stay supported — and so does your reputation.

Which mobile app do the cameras use?

V380 Pro (iOS / Android) is the companion app — free to download, with live view, playback, PIR push alerts, two-way talk and multi-user sharing. Pair by scanning the QR code on the camera.
