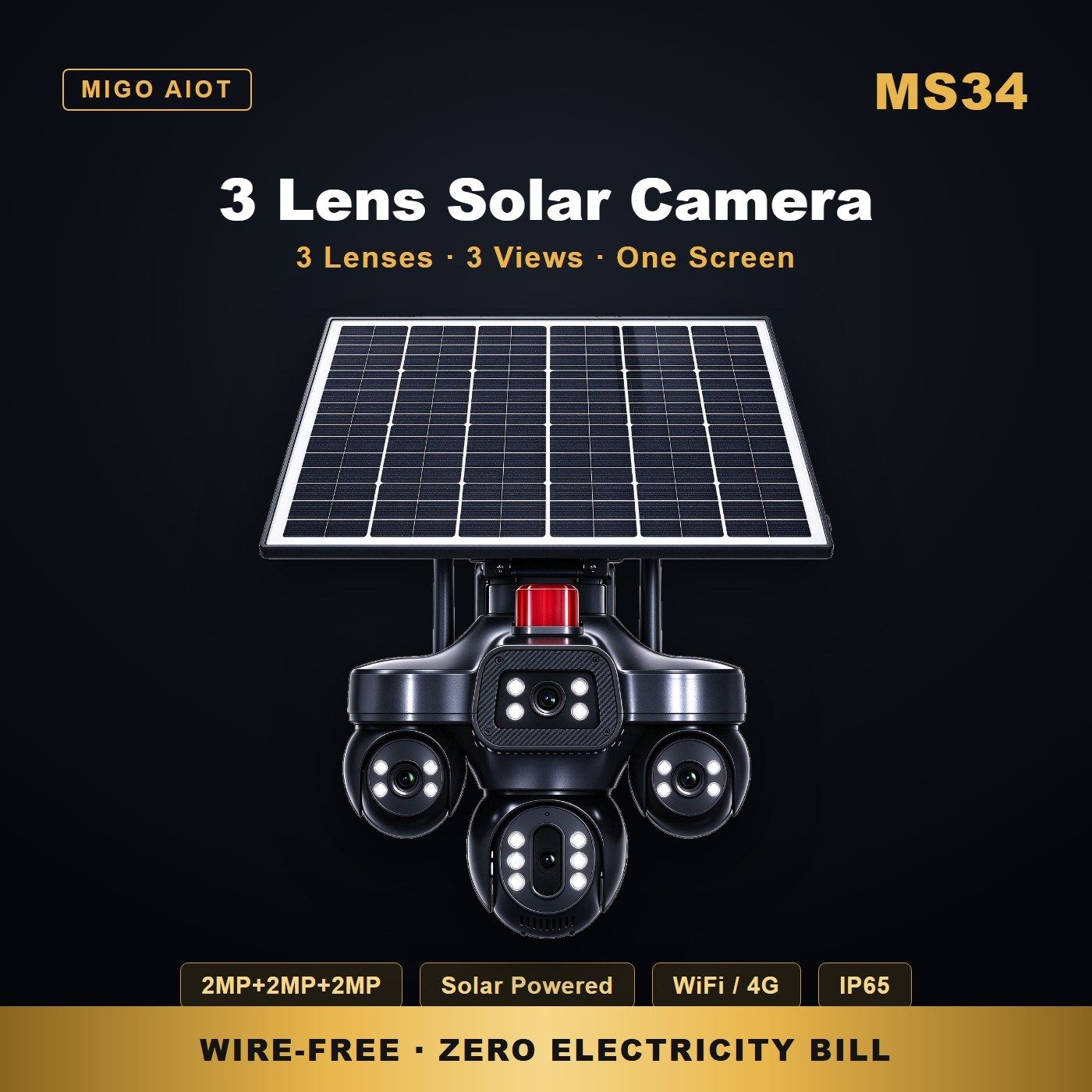

Three lenses. One screen. Zero power bills. The MS34 runs entirely on its 7.5W solar panel, streams all three views at once in the app, and — in the 4G version — works where there is no WiFi at all.
Why This Camera

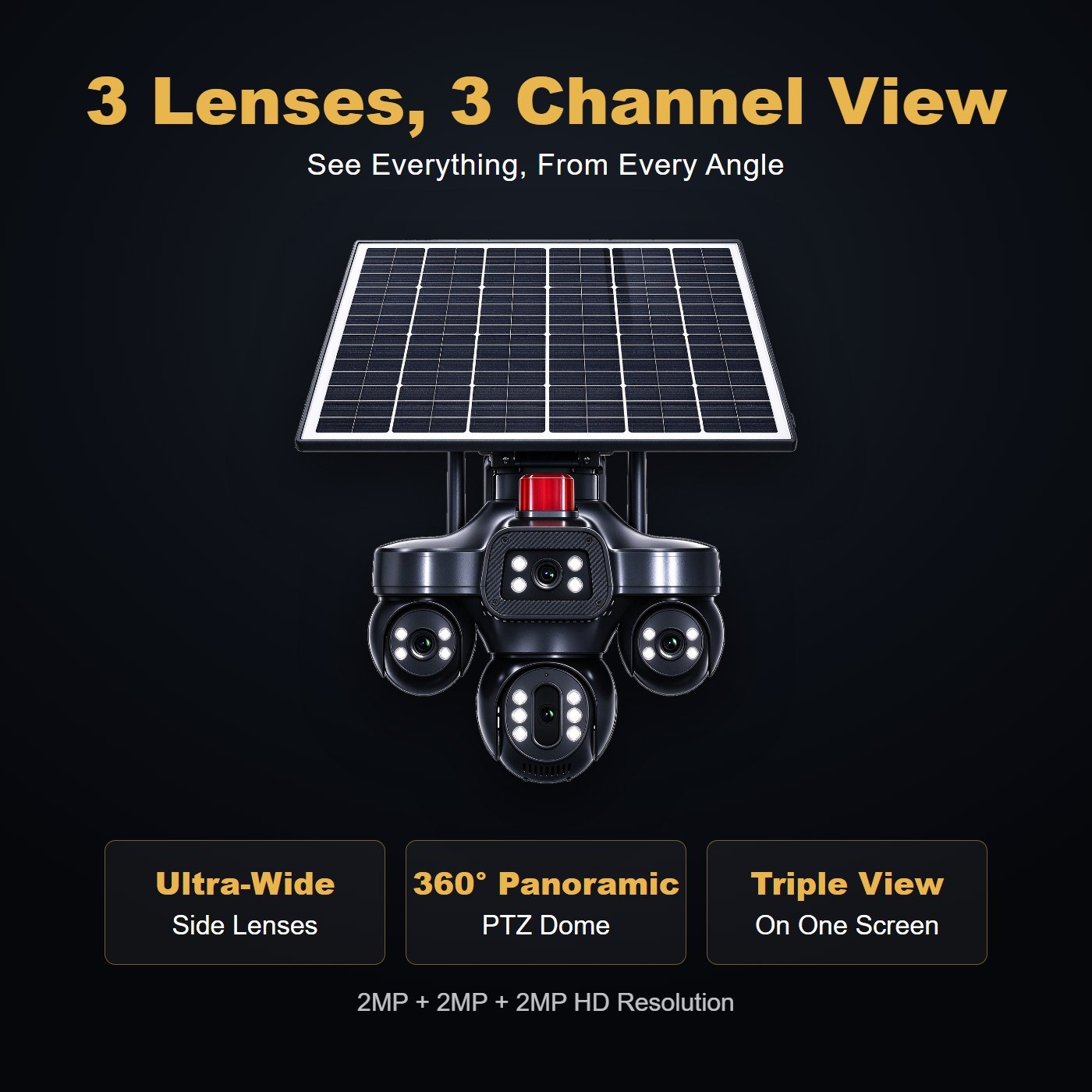

Set one lens on the approach road, one on the gate, one on the yard. All three streams show on one screen in the app — no blind spots, no switching between devices.
The 4G version takes a standard SIM card and runs on cellular data — ideal for farms, construction sites and remote properties where there is no network at all.
The integrated panel harvests daylight into the 18650 battery pack. Sized for typical motion-event duty cycles, it keeps the camera watching through the night and recharges by day.
Rain, dust or -20°C winters — the housing is sealed for permanent outdoor deployment on poles, walls and trees.

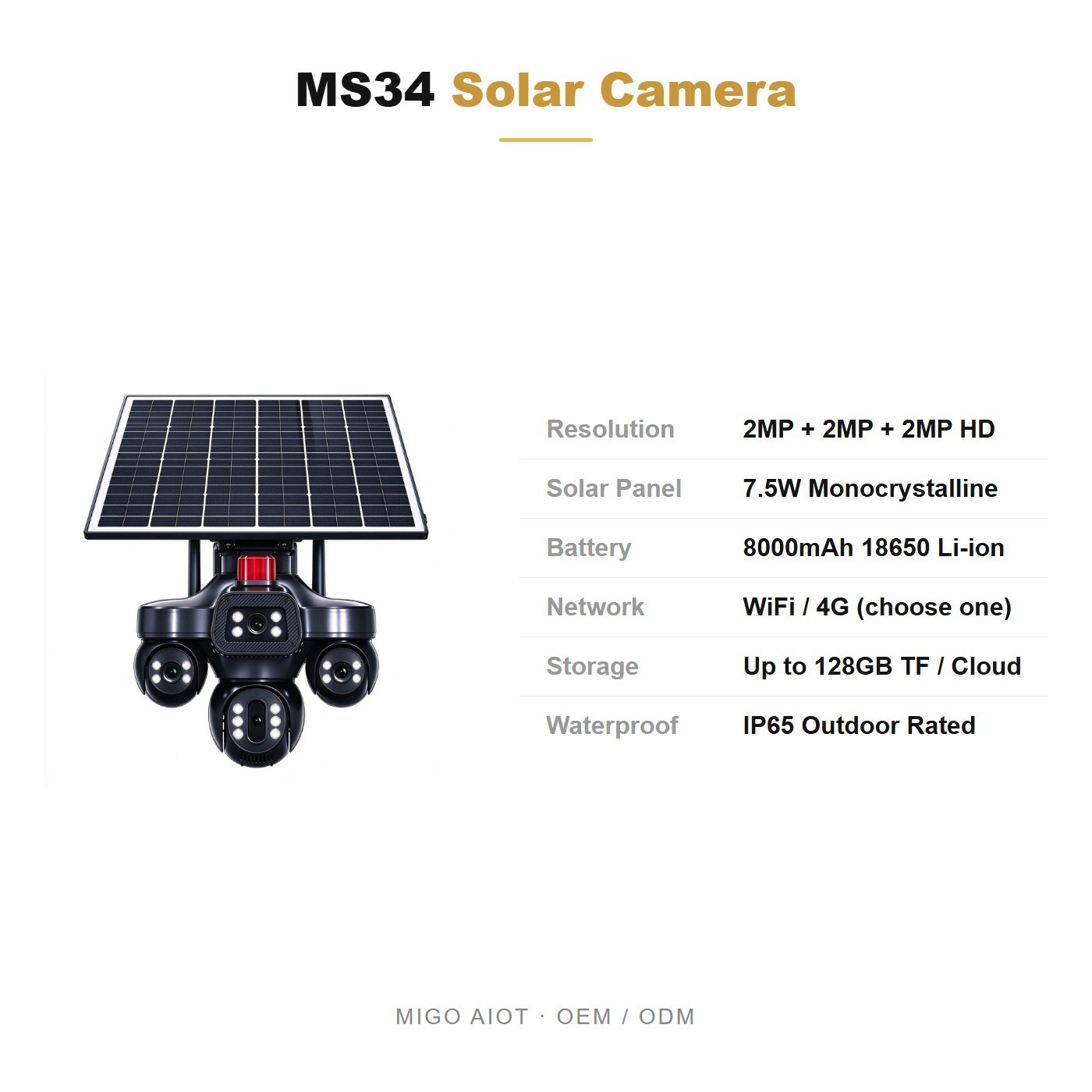

Technical Specifications
| Imaging | |
| Resolution | 2MP + 2MP + 2MP — 3 lenses, 3 views on one screen |
|---|---|

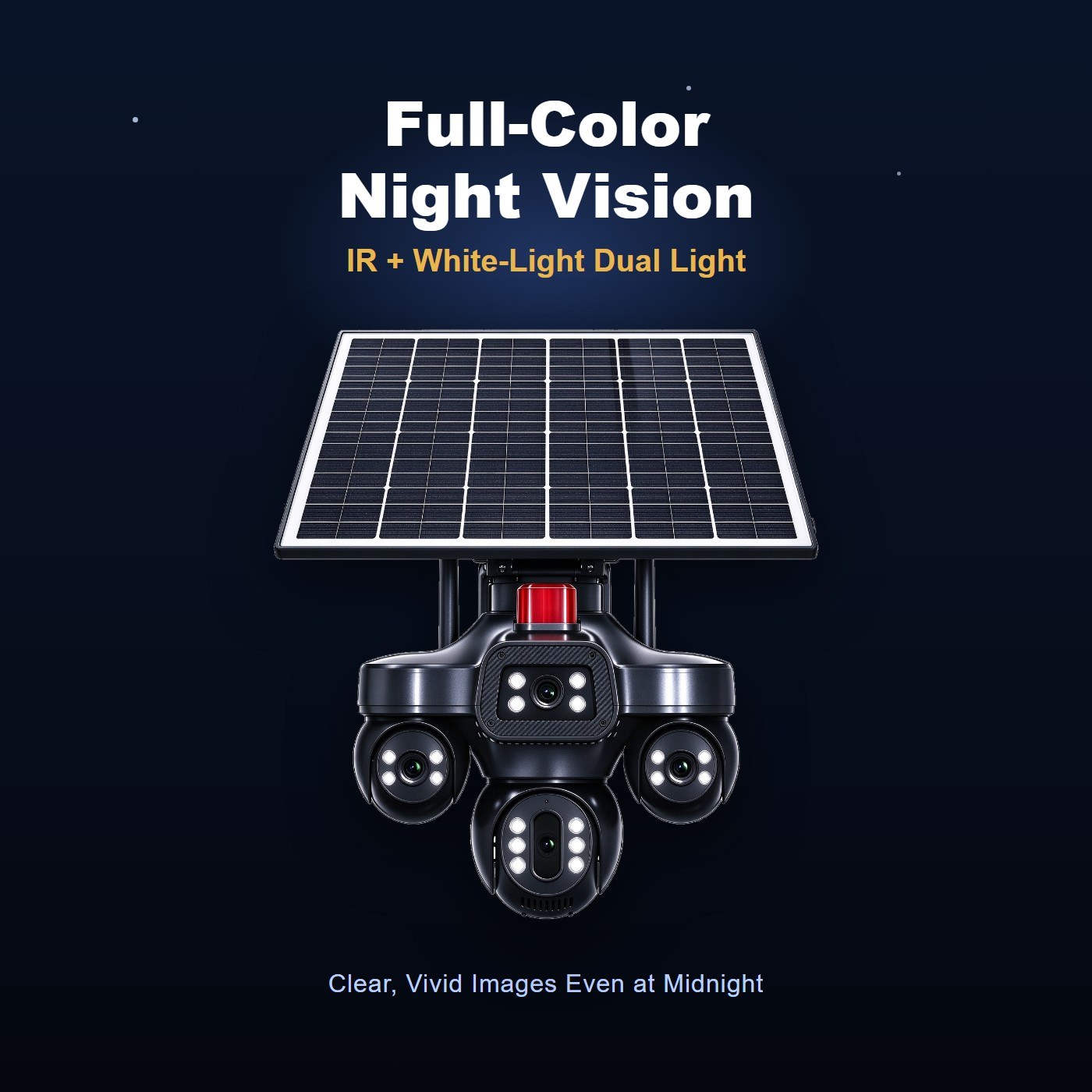

| Night Vision | IR + white-light dual-light full color |
| Coverage | Ultra-wide angle, 360° panoramic view |
| Optics | |
| Lens Configuration | 3 fixed lenses, 3 simultaneous views |
| App View | All three streams live on one screen in the app |
| Power & Solar | |
| Solar Panel | 7.5W integrated panel |
| Battery | 8000mAh 18650 Li-ion battery pack |
| Floodlight | High-density LED array floodlight |
| Working Mode | Wire-free, low-power standby, PIR wake-up |
| Connectivity & Smart | |
| Network | WiFi version or 4G version (choose one at order) |

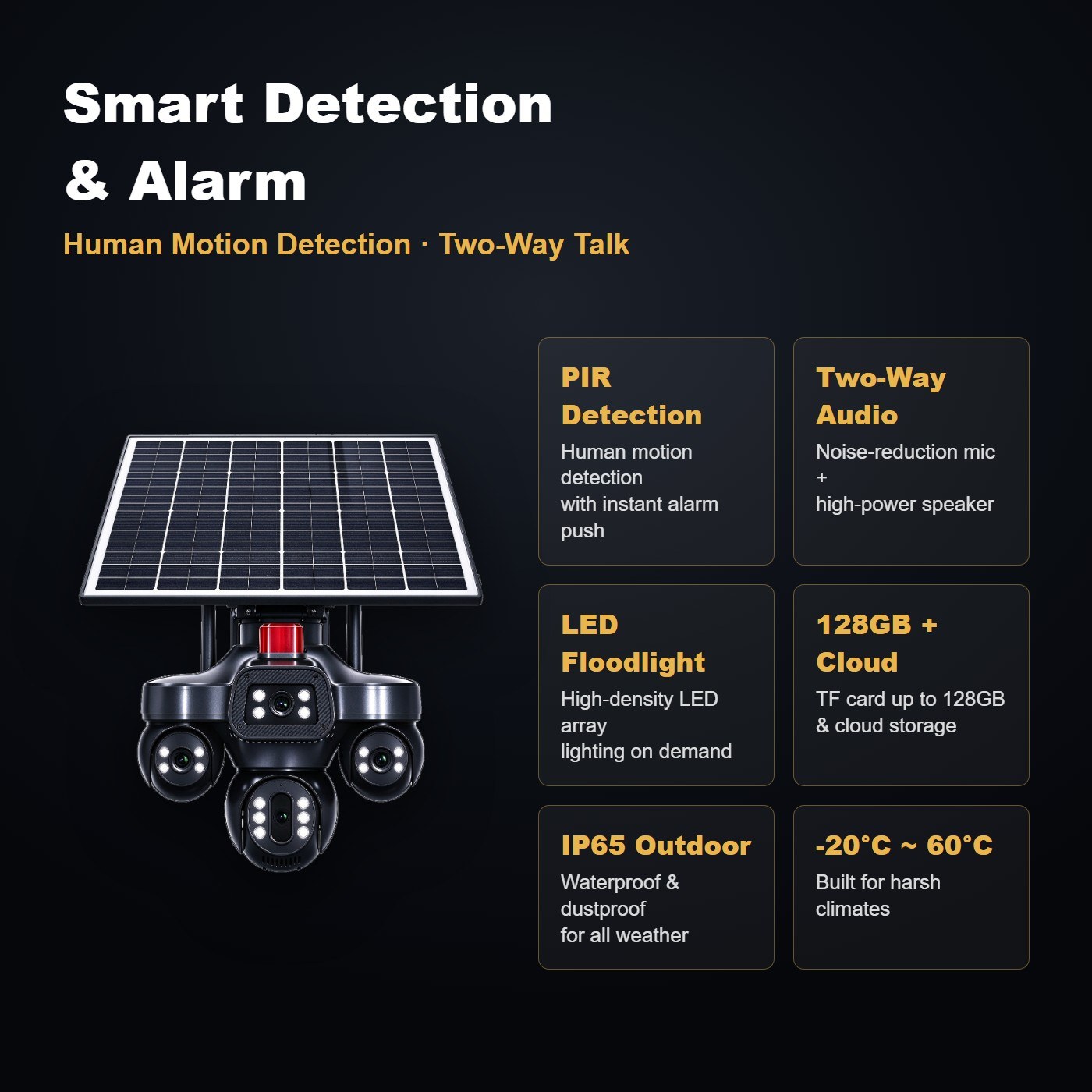

| Detection | PIR human motion detection + alarm push |
| Audio | Two-way talk: noise-reduction mic + high-power speaker |
| Storage | TF card up to 128GB + cloud storage |
| Environmental | |
| Weatherproof | IP65 outdoor waterproof & dustproof |
| Operating Temperature | -20°C ~ +60°C |
| Packaging | |
| Qty/CTN | 12 PCS |
| Color Box | 280 × 210 × 182 MM |
| Carton | 58 × 43.5 × 56.6 CM |
| G.W./CTN | 22.2 KG |
| In the Box | Screw kit, app quick-start manual, 7.5W solar panel, mounting bracket |
| Mobile App | |
| Supported App | V380 Pro (iOS / Android) |
Applications
Watch gates, lanes and livestock areas with no power line and no internet run.
Solar power plus 4G keeps the entrance covered miles from the nearest router.
Perimeter and material-yard monitoring that moves with the project — no trenching.
Check on the property between visits; the sun pays the electricity bill.
Cover feed stores and pens; floodlight plus alarm push scares off intruders at night.
Lighting and recording in one unit for yards the grid never reached.
Planning a full deployment? See the scenario guides: perimeter security cameras and solar security cameras for farms and ranches.
FAQ
Trial orders start small — talk to us about your volume. Logo printing, custom packaging and firmware defaults are available on OEM terms; we scale with you from first sample to full containers.
Yes — order the 4G version. It connects over cellular data with a standard SIM card, so the site needs no WiFi, no broadband and no network cabling. If the location has stable WiFi, the WiFi version is the simpler choice.
The 8000mAh battery pack carries the camera through nights and overcast stretches on typical motion-event duty, and the 7.5W panel recharges it whenever daylight returns. Mount it where it gets direct sun for the best harvest.
A standard SIM on a data plan from a local carrier. The camera works like a phone on the network — insert the card, set the APN if required, and it is online.
CE, FCC and RoHS compliance for applicable destinations. Tell us your target market and we'll confirm the exact certification package and documentation for your customs clearance.
We're a manufacturer, not a trading desk: spare parts, firmware updates and warranty handling come from our own factory in Shenzhen. Your customers stay supported — and so does your reputation.
V380 Pro (iOS / Android) is the companion app — free to download, with live view, playback, PIR push alerts, two-way talk and multi-user sharing. Pair by scanning the QR code on the camera.
Request a Quote
Quantities, target market, customization needs — the more detail, the sharper the quote. Typical reply within 24 hours.
