Solar Series · 360 Panoramic

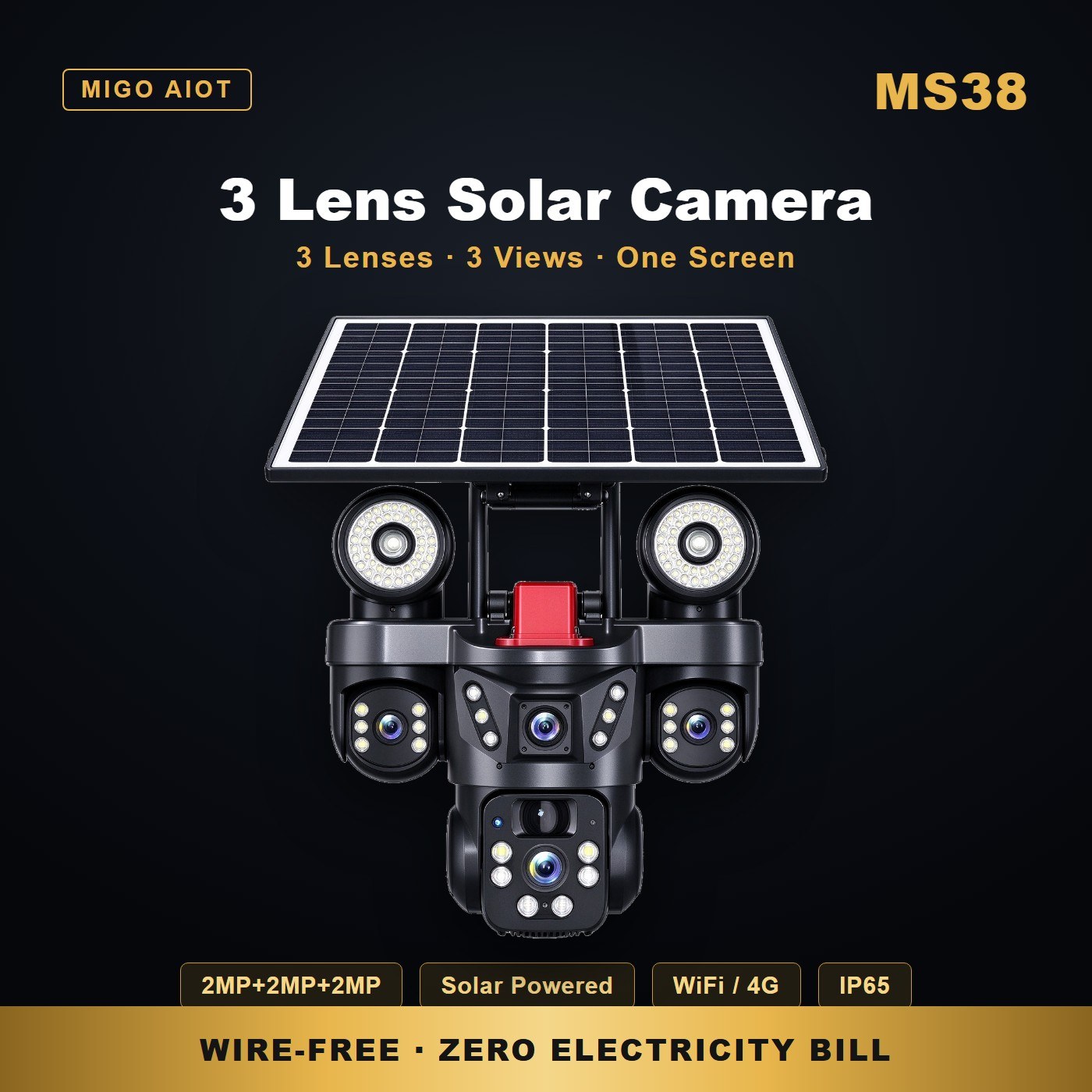

MS38 Solar Security Camera with 360° Panoramic View

Three lenses stitch a 360° panoramic view onto one screen. The MS38 watches the whole yard, driveway or compound from a single mounting point — powered entirely by daylight.

🌀 360° Panoramic — the whole site on one screen
👁️ 3 Lenses — wide, wider and widest, all live
☀️ Solar Powered — 7.5W + 8000mAh, wire-free
💡 Motion Floodlight — LED array deters at night
OEM / ODM available Sample orders welcome Factory-direct since 2016

Why This Camera

One mounting point. The whole compound.

360°

Panorama without gaps

The three-lens array covers the full circle around the pole. Corners that a single-lens camera turns its back on are exactly where the MS38 looks.

One

One screen, not three apps

All three views tile together in the app — approach, yard and flank in a single glance instead of a camera-switching session.

Solar

A pole, and nothing else

No grid connection, no cabling: the panel and battery make any pole or wall a surveillance outpost within minutes of unboxing.

Alert

PIR detection, floodlight response

Human motion triggers push alerts and the LED array — intruders discover they are on camera the bright way.

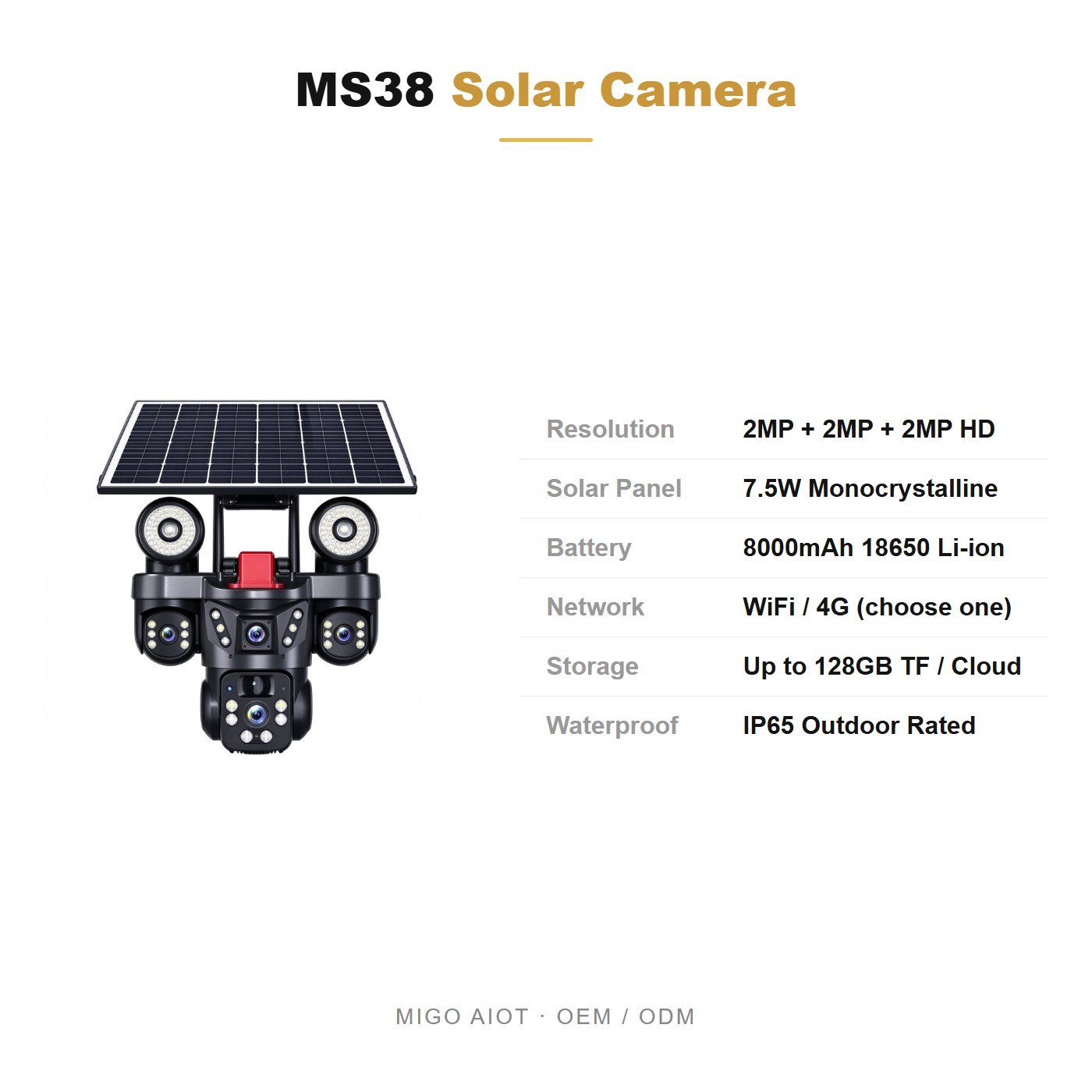

Technical Specifications

The full spec sheet.

Imaging
Resolution2MP + 2MP + 2MP — 3 lenses, 3 views on one screen

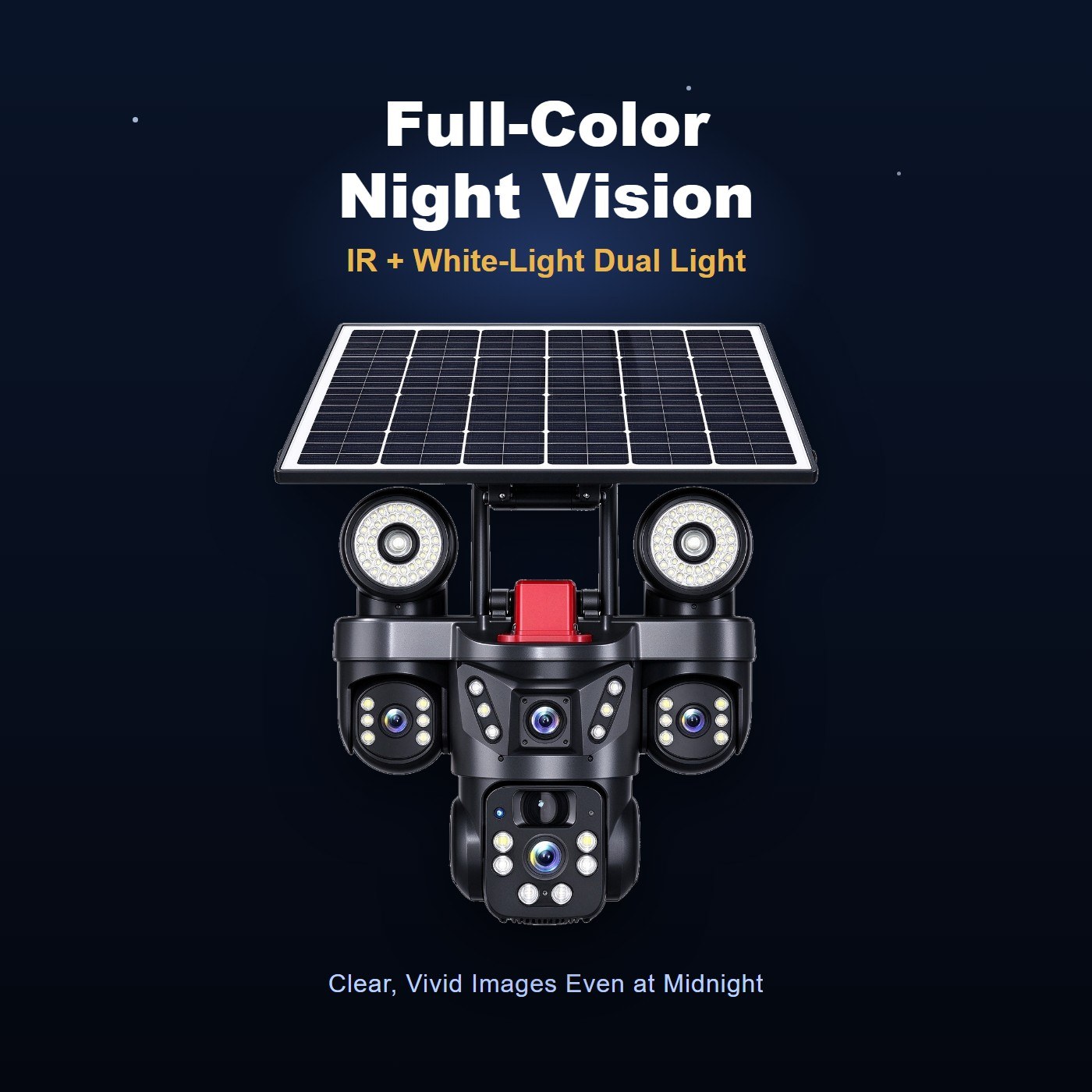

Night VisionIR + white-light dual-light full color
CoverageUltra-wide angle, 360° panoramic view
Optics
Lens Configuration3 fixed lenses, 3 simultaneous views
App ViewAll three streams live on one screen in the app
Power & Solar
Solar Panel7.5W integrated panel
Battery8000mAh 18650 Li-ion battery pack
FloodlightHigh-density LED array floodlight
Working ModeWire-free, low-power standby, PIR wake-up
Connectivity & Smart
NetworkWiFi version or 4G version (choose one at order)

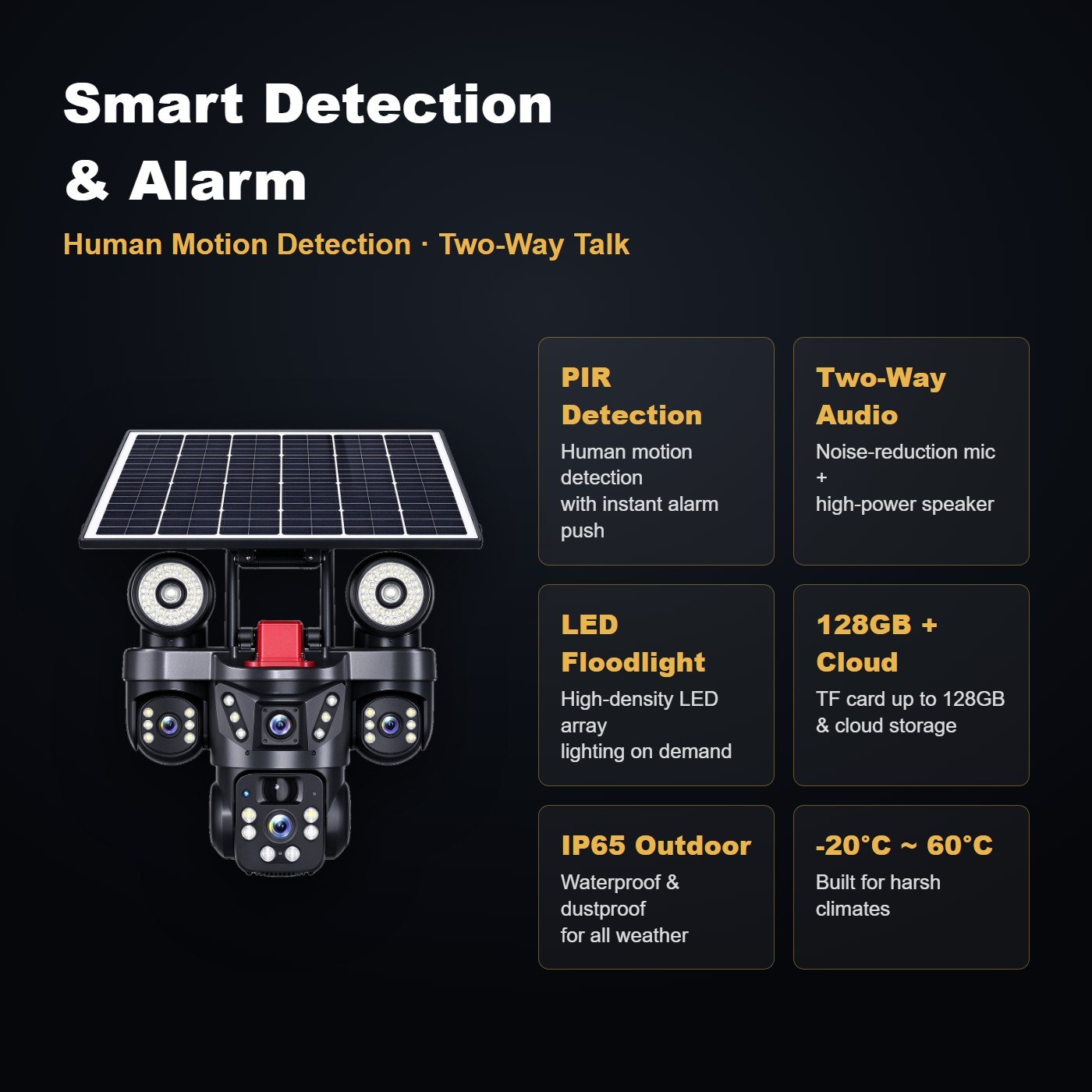

DetectionPIR human motion detection + alarm push
AudioTwo-way talk: noise-reduction mic + high-power speaker
StorageTF card up to 128GB + cloud storage
Environmental
WeatherproofIP65 outdoor waterproof & dustproof
Operating Temperature-20°C ~ +60°C
Packaging
Qty/CTN12 PCS
Color Box247 × 196 × 233 MM
Carton50.9 × 48.1 × 60.8 CM
G.W./CTN21.4 KG
In the BoxScrew kit, app quick-start manual, 7.5W solar panel, mounting bracket
Mobile App
Supported AppV380 Pro (iOS / Android)

Applications

Wide sites, one camera.

🏘️ Compounds & Courtyards

One center-mounted unit replaces a multi-camera install.

🚗 Yards with Vehicles

Every parking angle in frame —Approach, sides and exits all live.

🛒 Commercial Forecourts

Forecourt and entrance coverage for shops without cabling works.

🏟️ Open Storage Areas

360° watch over materials and containers left in the open.

🚜 Farmyards

Gate, barn lane and pens from one pole in the middle.

🎪 Event & Temporary Sites

Rapid 360° coverage where cabling is out of the question.

Planning a full deployment? See the scenario guides: perimeter security cameras and solar security cameras for farms and ranches.

FAQ

What buyers usually ask.

What's the MOQ for OEM orders?

Trial orders start small — talk to us about your volume. Logo printing, custom packaging and firmware defaults are available on OEM terms; we scale with you from first sample to full containers.

How does it handle cloudy weather?

The 8000mAh battery pack carries the camera through nights and overcast stretches on typical motion-event duty, and the 7.5W panel recharges it whenever daylight returns. Mount it where it gets direct sun for the best harvest.

Does it work without WiFi or broadband?

Yes — order the 4G version. It connects over cellular data with a standard SIM card, so the site needs no WiFi, no broadband and no network cabling. If the location has stable WiFi, the WiFi version is the simpler choice.

What certifications are available?

CE, FCC and RoHS compliance for applicable destinations. Tell us your target market and we'll confirm the exact certification package and documentation for your customs clearance.

What about after-sales support?

We're a manufacturer, not a trading desk: spare parts, firmware updates and warranty handling come from our own factory in Shenzhen. Your customers stay supported — and so does your reputation.

Which mobile app do the cameras use?

V380 Pro (iOS / Android) is the companion app — free to download, with live view, playback, PIR push alerts, two-way talk and multi-user sharing. Pair by scanning the QR code on the camera.

Request a Quote

Get pricing on the MS38 Solar 360° Panoramic Camera.

Quantities, target market, customization needs — the more detail, the sharper the quote. Typical reply within 24 hours.
