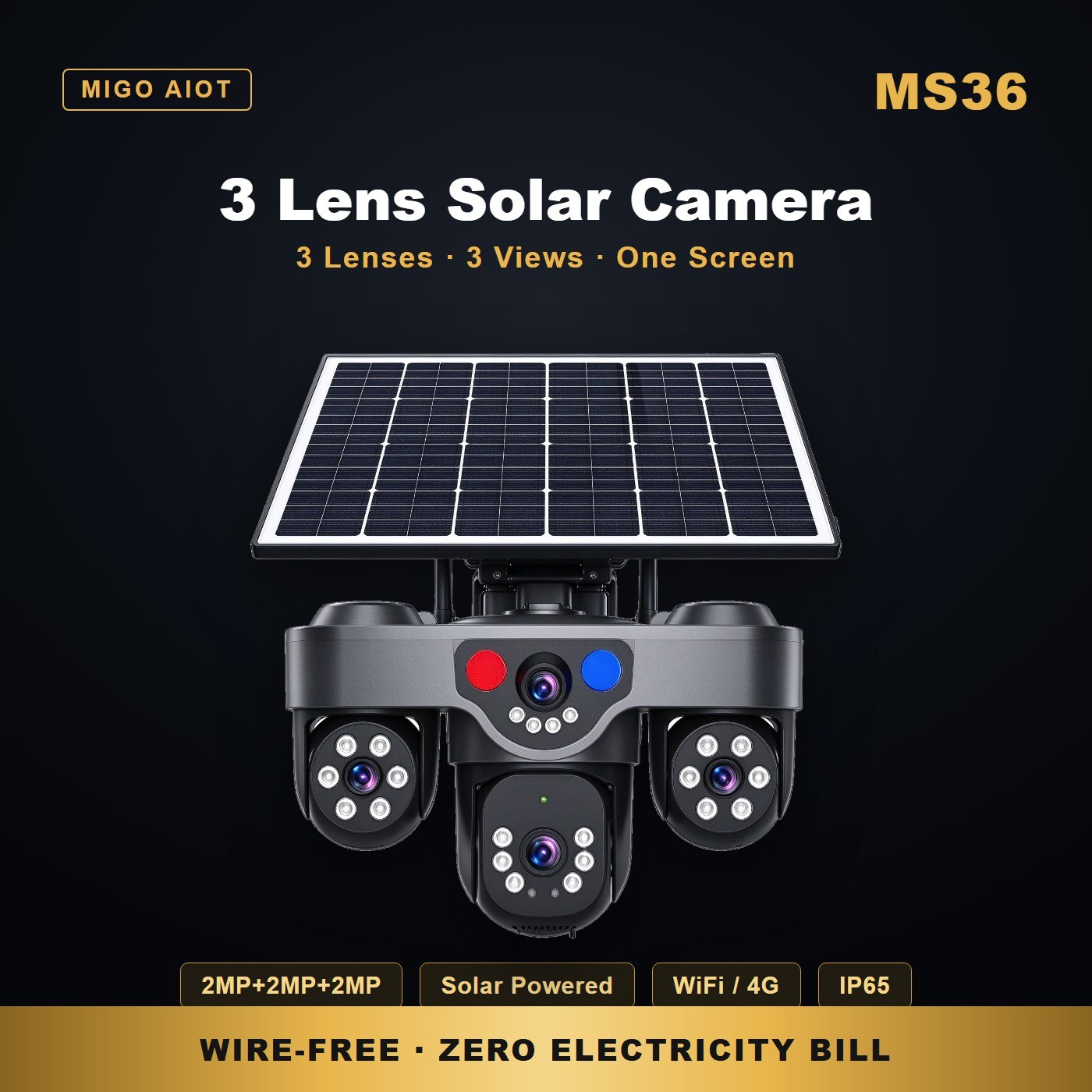

The do-everything outdoor camera: three lenses, an integrated LED floodlight, and a solar panel on top. The MS36 mounts anywhere with a bracket and never asks for electricity.
Why This Camera
The LED array floods the area on human detection while three lenses record — one bracket, one install, one purchase instead of two.

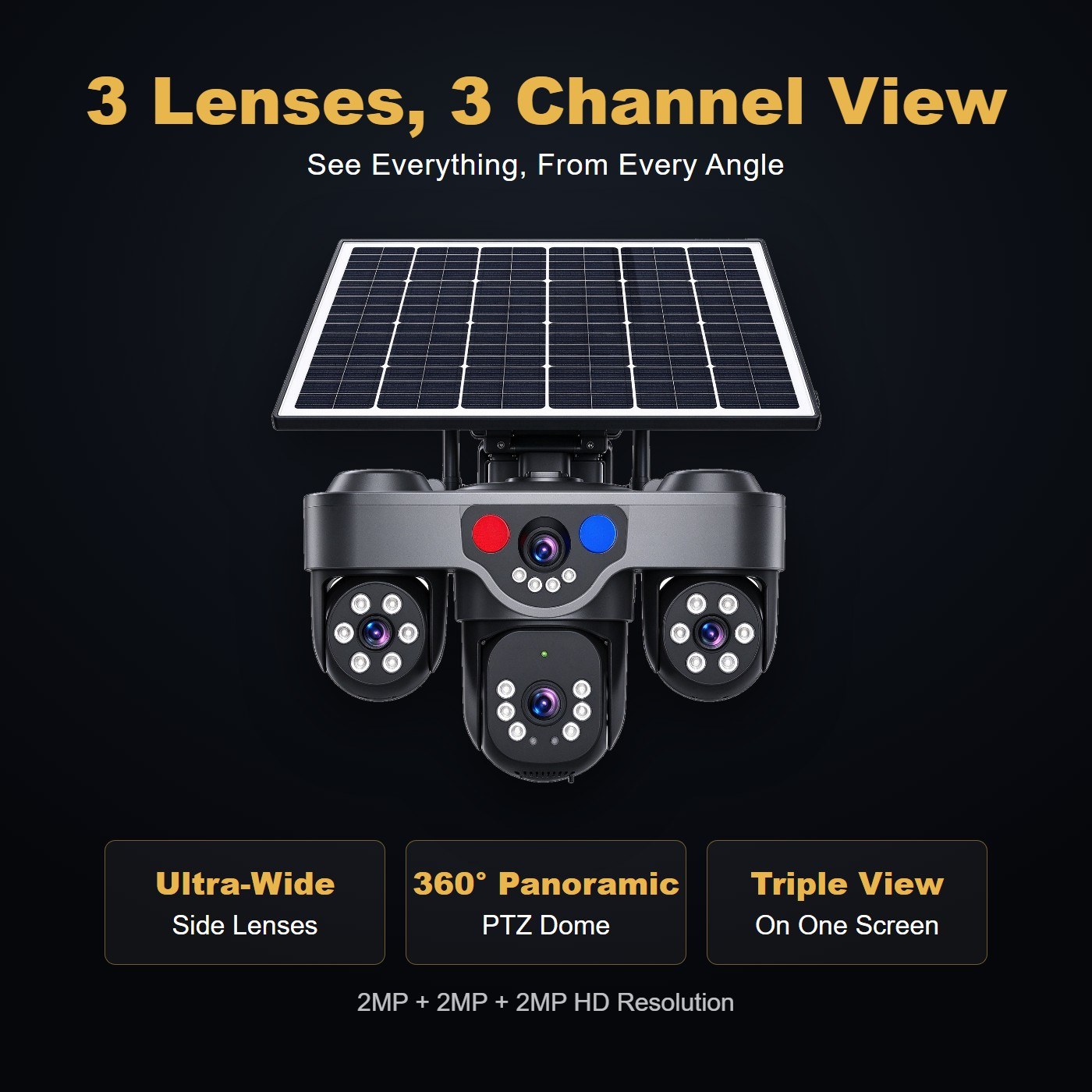

Entrance, side yard and approach all show on one screen in the app. Wide coverage without buying three cameras.
No conduit, no trenching, no power bill. Two screws and a spot with daylight are the entire infrastructure requirement.

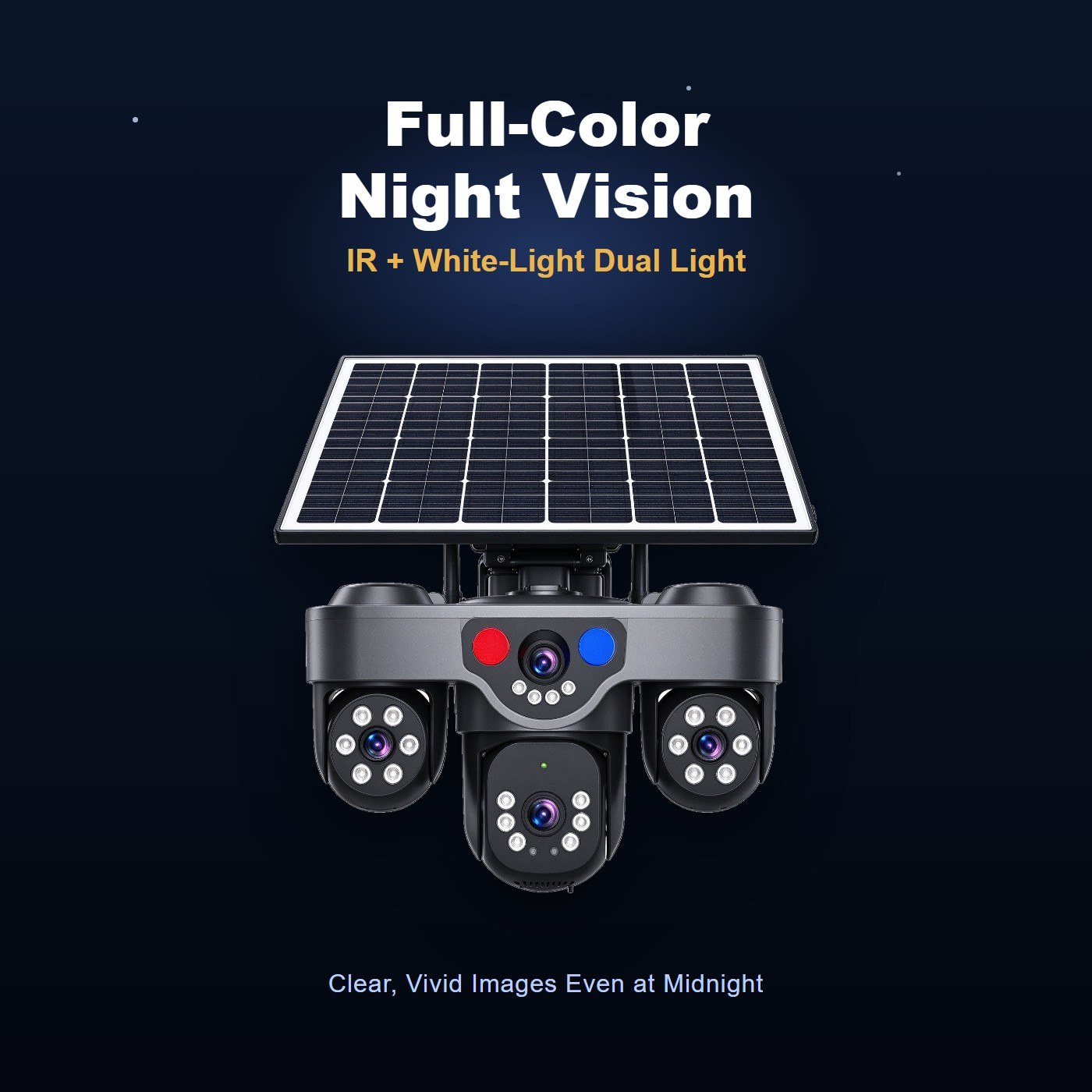

IR plus white-light sources keep footage in color after dark — faces, clothing and vehicles come through usable.

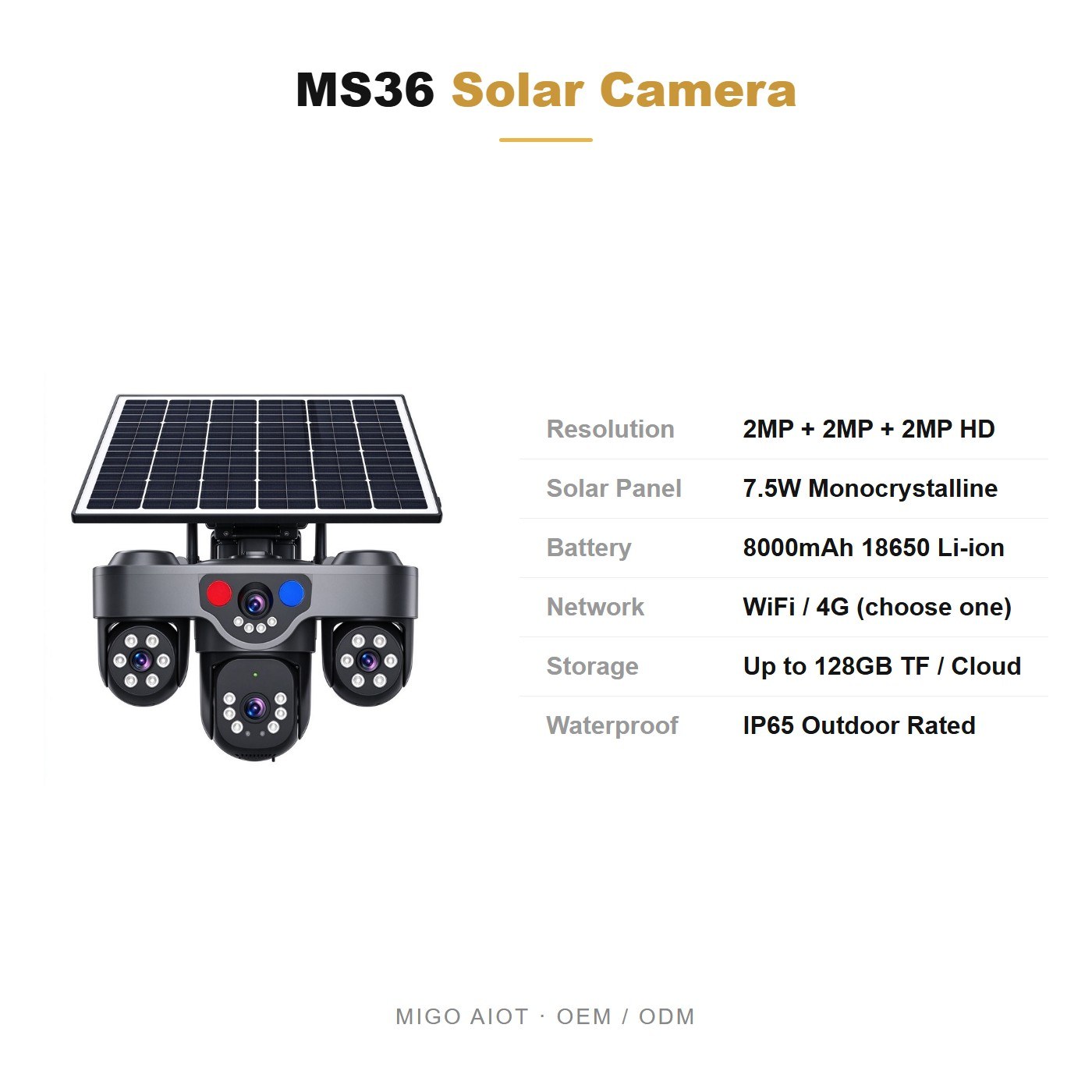

Technical Specifications
| Imaging | |
| Resolution | 2MP + 2MP + 2MP — 3 lenses, 3 views on one screen |
|---|---|
| Night Vision | IR + white-light dual-light full color |
| Coverage | Ultra-wide angle, 360° panoramic view |
| Optics | |
| Lens Configuration | 3 fixed lenses, 3 simultaneous views |
| App View | All three streams live on one screen in the app |
| Power & Solar | |
| Solar Panel | 7.5W integrated panel |
| Battery | 8000mAh 18650 Li-ion battery pack |
| Floodlight | High-density LED array floodlight |
| Working Mode | Wire-free, low-power standby, PIR wake-up |
| Connectivity & Smart | |
| Network | WiFi version or 4G version (choose one at order) |

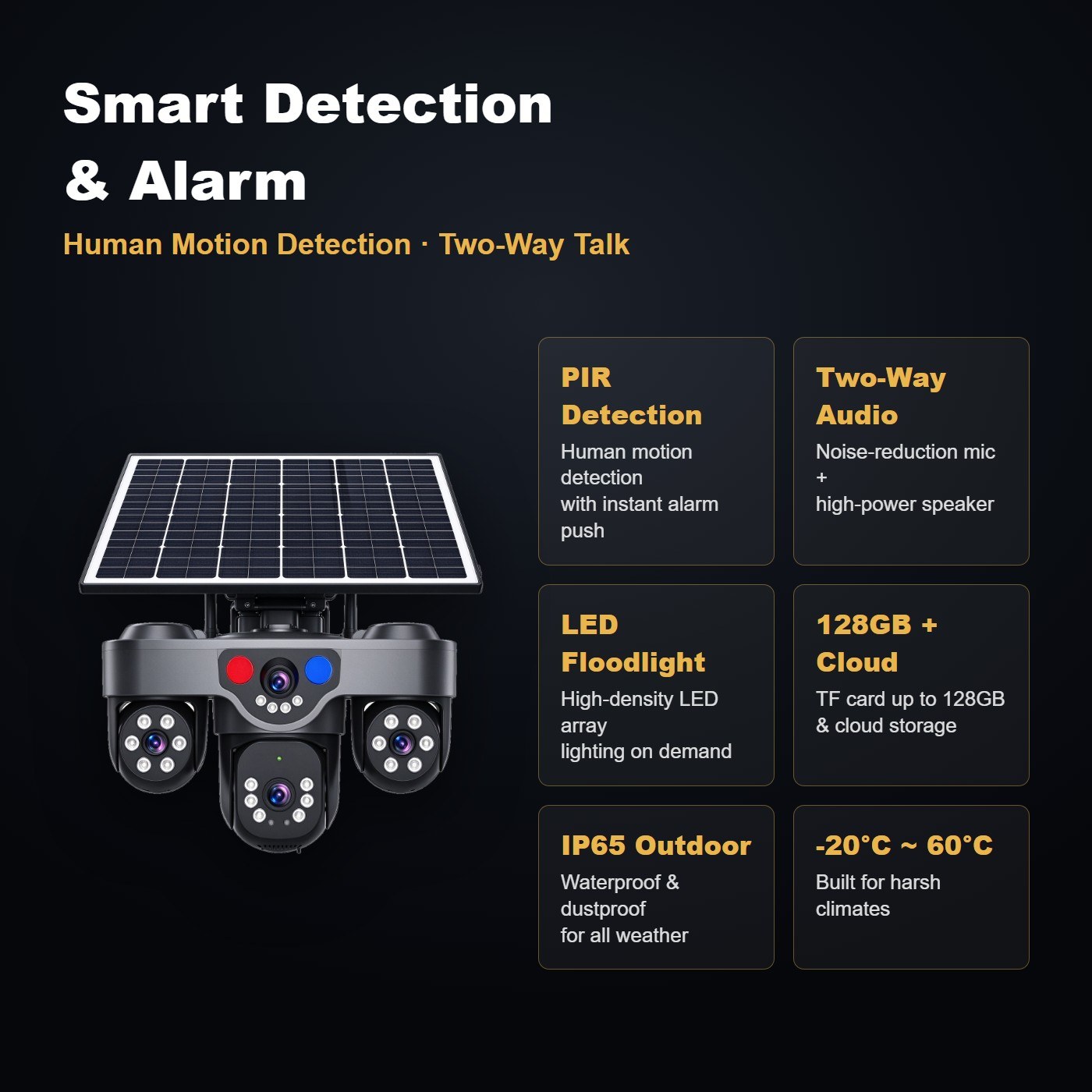

| Detection | PIR human motion detection + alarm push |
| Audio | Two-way talk: noise-reduction mic + high-power speaker |
| Storage | TF card up to 128GB + cloud storage |
| Environmental | |
| Weatherproof | IP65 outdoor waterproof & dustproof |
| Operating Temperature | -20°C ~ +60°C |
| Packaging | |
| Qty/CTN | 12 PCS |
| Color Box | 250 × 200 × 195 MM |
| Carton | 51.5 × 41.5 × 60.5 CM |
| G.W./CTN | 17.2 KG |
| In the Box | Screw kit, app quick-start manual, 7.5W solar panel, mounting bracket |
| Mobile App | |
| Supported App | V380 Pro (iOS / Android) |
Applications
Cover the side gate, garden and driveway from one corner mount.
Shopfront and rear entrance watched and lit with a single unit.
Perimeter spots without cabling get proper coverage overnight.
Blind corners outside the fence line — lit and recorded.
Motion-triggered floodlight plus push alerts to the phone.
Runs itself between visits; nothing to maintain but sunlight.
Planning a full deployment? See the scenario guides: perimeter security cameras and solar security cameras for farms and ranches.
FAQ
Trial orders start small — talk to us about your volume. Logo printing, custom packaging and firmware defaults are available on OEM terms; we scale with you from first sample to full containers.
The 8000mAh battery pack carries the camera through nights and overcast stretches on typical motion-event duty, and the 7.5W panel recharges it whenever daylight returns. Mount it where it gets direct sun for the best harvest.
Yes — order the 4G version. It connects over cellular data with a standard SIM card, so the site needs no WiFi, no broadband and no network cabling. If the location has stable WiFi, the WiFi version is the simpler choice.
CE, FCC and RoHS compliance for applicable destinations. Tell us your target market and we'll confirm the exact certification package and documentation for your customs clearance.
We're a manufacturer, not a trading desk: spare parts, firmware updates and warranty handling come from our own factory in Shenzhen. Your customers stay supported — and so does your reputation.
V380 Pro (iOS / Android) is the companion app — free to download, with live view, playback, PIR push alerts, two-way talk and multi-user sharing. Pair by scanning the QR code on the camera.
Request a Quote
Quantities, target market, customization needs — the more detail, the sharper the quote. Typical reply within 24 hours.
