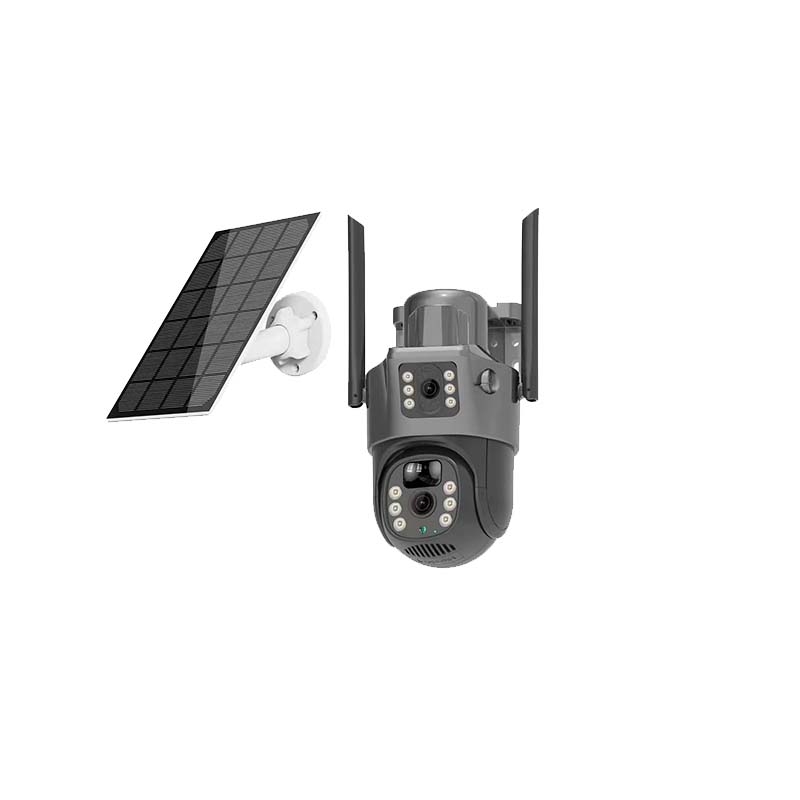

MS22 Dual-Lens Solar PTZ Camera with Detachable Panel

Name: MS22 Solar Dual-Lens PTZ Camera with External Panel
Brand: Migo Aiot

Why This Camera

Why This Camera.

Off-Grid

Engineered for places the grid cannot reach

The 4G solar-powered low-power outdoor camera is engineered for environments where traditional power and network infrastructure are unavailable or impractical. Its integrated solar panel and high-capacity battery ensure continuous operation without wiring, making it ideal for remote or temporary installations.

Dual

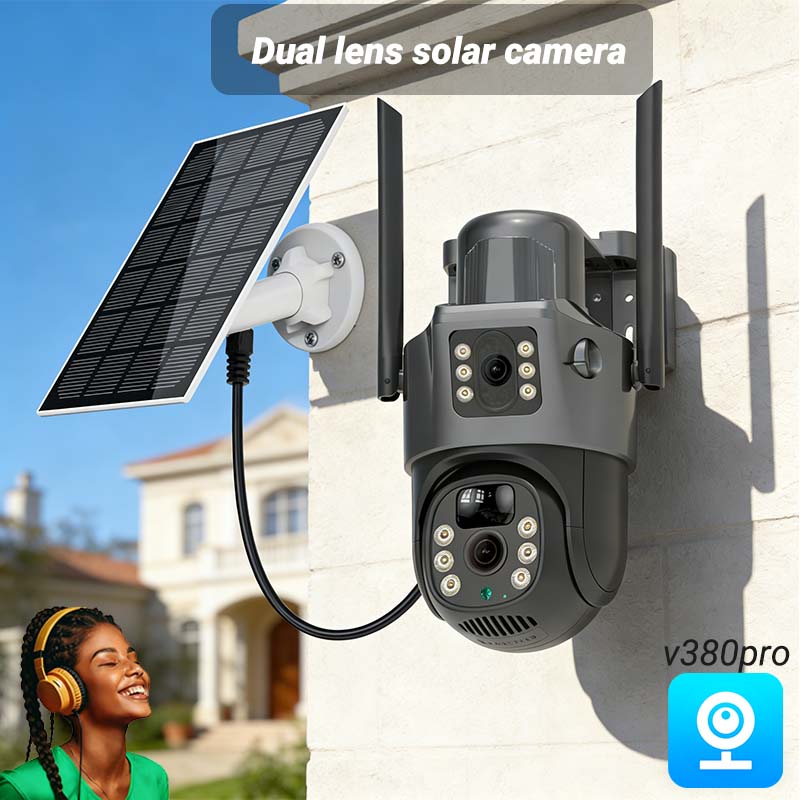

Dual-lens + PTZ control

The camera features a dual-lens system with PTZ functionality, allowing users to remotely adjust the viewing angle and zoom in on specific areas via mobile app. A fixed wide-angle holds the scene while the PTZ lens captures detail — context and close-up in one device.

Deter

PIR detection + visual deterrence

Equipped with PIR motion detection and alert lights, it actively deters intruders by triggering visual alarms and sending real-time notifications to your smartphone. The IP66 waterproof rating ensures reliable performance in rain, dust and extreme temperatures.

Engage

Two-way audio, active engagement

Its low-power design extends battery life during cloudy periods. Two-way audio enables live communication, turning passive monitoring into active engagement — talk to visitors, warn intruders, or check in on staff from anywhere.

Technical Specifications

The full spec sheet.

Imaging
Image Sensor	1/3" color CMOS Sensor
Resolution	8MP
Effective Pixels	1920(H)*2160(V)
Compression	H.264/H.265
Electronic Shutter Time	Auto（1/1.5s~1/30000s）
Minimun Illumination	0.01 Lux
S/N Ratio	46dB
Scanning System	Progressive
Video Output	Wireless network
Reset Button	YES
PTZ
Horizontal Rotation Range	0~355°
Tilt Rotation Range	0~90°
Guard Points	NO
Optics
Focus Length	4mm+4mm
Focus Control	Fixed
Lens Type	Fixed
Pixels	8Mp Pixels
Night Vision
Infrared LED	12PCS Infrared light +12PCS White light
Infrared Distance	10M
IR Status	AGC auto control
IR Power On	Auto Control
Connectivity
RJ45	NO
Protocol	TCP/IP, UDP/IP, DHCP, MQTT, P2P
ONVIF	NO
P2P	Support
4G	FDD:B1/B3/B5/B8，TDD:B34/B38/B39/B40/B41
4G band options	EU / Middle East / Africa edition: FDD-LTE B1/B3/B5/B7/B8/B20/B28 · TDD-LTE B38/B40/B41 (standard production). Americas edition: available on custom order, not held in stock — band list confirmed in writing per order.
WIFI	Version available (4G SIM and WiFi are separate versions, specify the destination market at order)
Main Stream	1920*2160@15fps
Sub Stream	640*720@15fps
Smart Phone	support
Image & Smart Features
Day/Night	Color/ B&W (IR-CUT )
Image Config	YES
BLC	Support
3DNR	Support
WDR	YES
Motion Detection	Support
Privacy Masking	YES
Recording Mode	SDcard
Language	Simplified Chinese, English, Japanese, German, Russian, French, Italian, Spanish
Audio & Storage
Audio	2-Way Audio (MIC and Speaker)
Alarm	Motion Detection, PIR human body infrared detection
SD Card Slot	Support Max 256G
Build & Power
Housing	plastic,IP65
Bracket	Support
IR Cut Filter	YES
Power	DC 5V/1.5A or 7.5 W solar panel Battery(8000mAh)
Operation Temperature	-10° ~ 45°C /10% ~ 80% (no condensation)
Storage Temperature	-20°C ~ 60° /0% ~ 90% (no condensation)
Packaging
weight	1.6KG
Box size	260MM190MM125MM
Outer box size	52.5X41.5X56.9CM
Weight of one box	20KG（12PCS）

Applications

Where this camera wins.

🌳 Walled Compounds & Tree Cover

Where canopies and roof lines throw shade across mounting points, a low-power solar design keeps units online through cloudy stretches.

🌾 Farms & Outbuildings

Dual-lens PTZ coverage of gates, feed stores and yards. 4G solar operation removes trenching across fields and paddocks.

🏗️ Temporary Sites & Events

Deploy on poles or fencing within minutes and relocate as the layout changes — no cabling to pull twice.

🏡 Rural Homes & Driveways

Watch entrance and yard together from one unit, with full-color night detail and two-way audio from the phone.

🛰️ Remote Infrastructure

Pump stations, towers and utility points where no grid or WiFi exists — battery autonomy carries overcast weeks.

Planning a full deployment? See the scenario guides: solar security cameras for farms and ranches and off-grid and remote site cameras.

FAQ

What buyers usually ask.

What's the MOQ for OEM orders?

Trial orders start small — talk to us about your volume. Logo printing, custom packaging and firmware defaults are available on OEM terms; we scale with you from first sample to full containers.

Does it really work through cloudy weeks or winter?

Yes — every solar model ships with a LiFePO4 battery sized to cover at least 5–7 nights of typical motion-event use on a single charge. In low-sun regions we recommend the dual-panel MS4x series for extra harvest margin.

How long is the panel cable?

The detachable panel ships with a generous cable for typical wall/roof separation. Longer cable runs are available on OEM — let us know your install layout and we'll match the cable length.

What is black-light night vision?

Black-light (or super-starlight) night vision uses a large-aperture low-illumination sensor plus invisible 940nm IR fill. It delivers full-color or near-color footage in near-total darkness without the visible red glow of conventional IR cameras — clearer evidence, zero giveaway.

What certifications are available?

CE, FCC and RoHS compliance for applicable destinations. Tell us your target market and we'll confirm the exact certification package and documentation for your customs clearance.

What about after-sales support?

We're a manufacturer, not a trading desk: spare parts, firmware updates and warranty handling come from our own factory in Shenzhen. Your customers stay supported — and so does your reputation.
