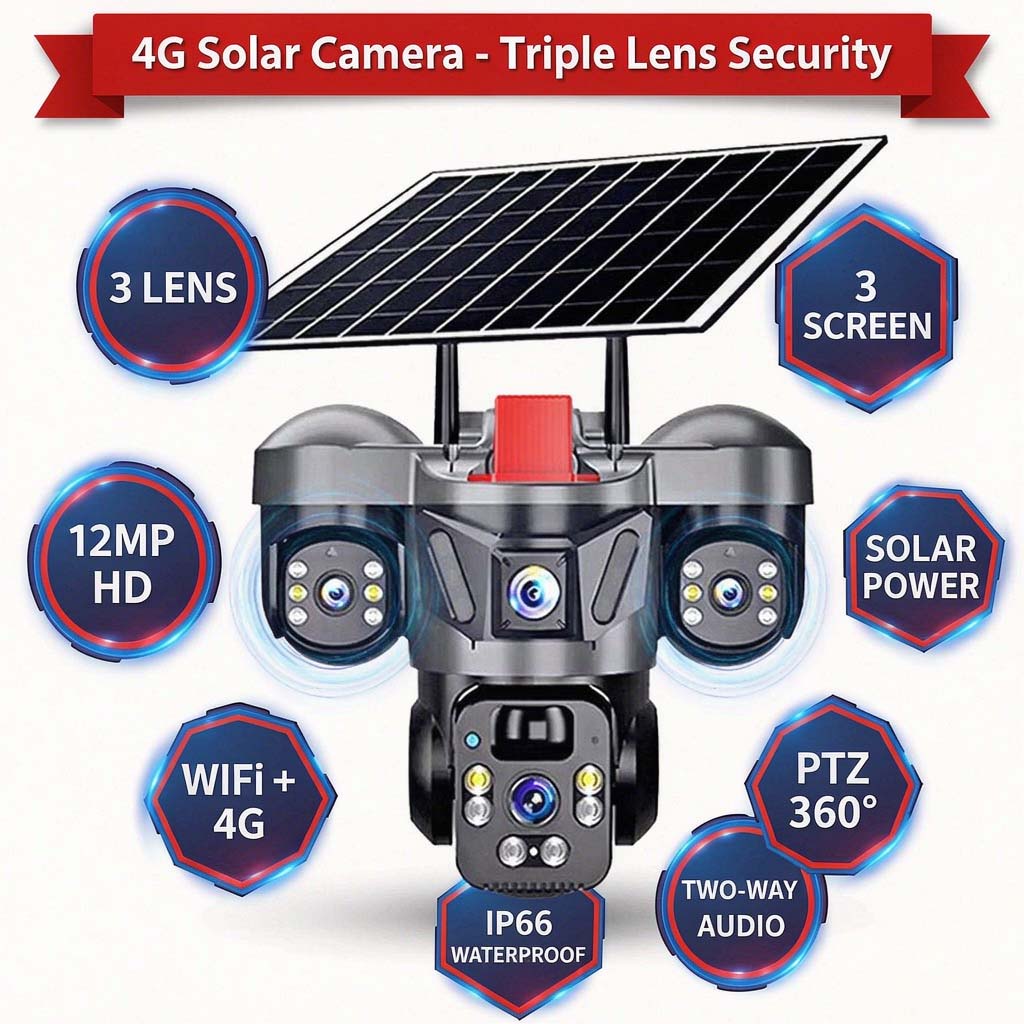

MS31 3-lens solar PTZ security camera — three simultaneous camera channels

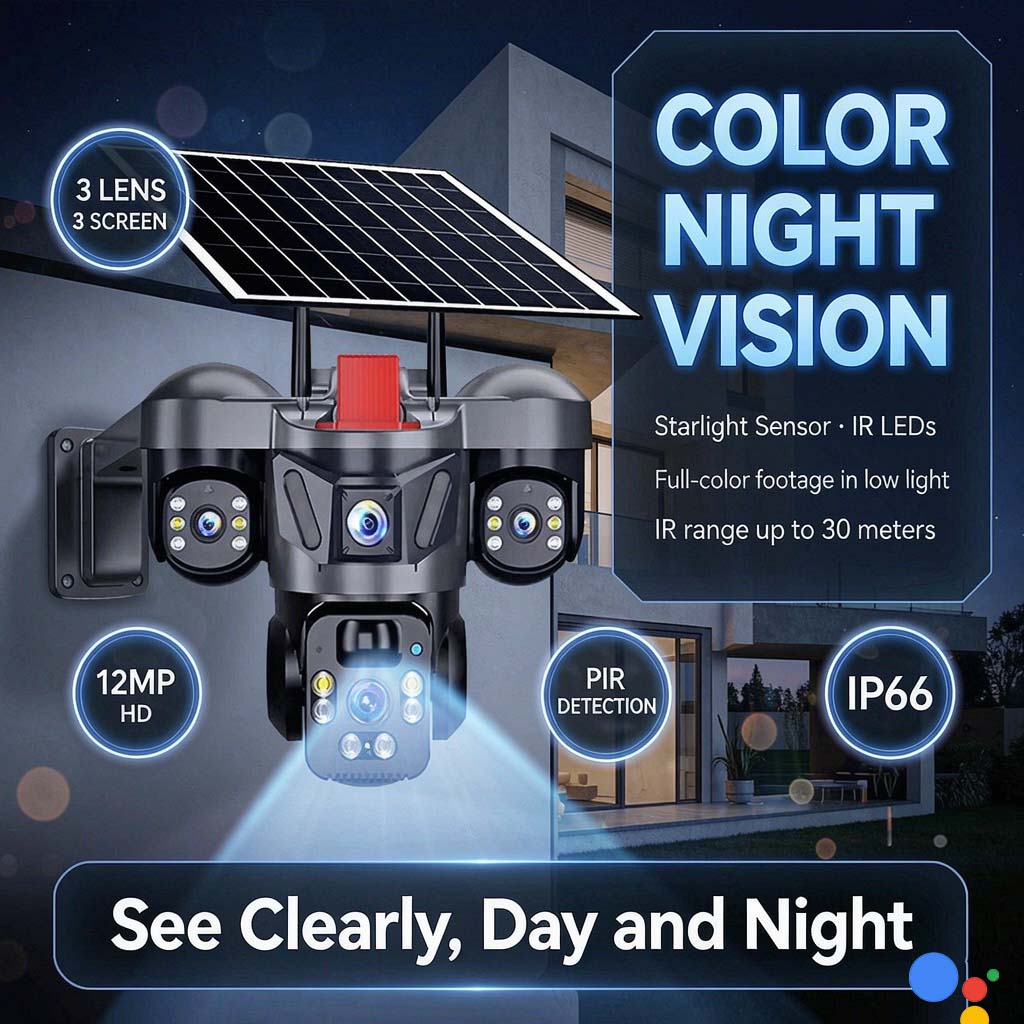

MS31 3-lens solar PTZ security camera — 360-degree PTZ control

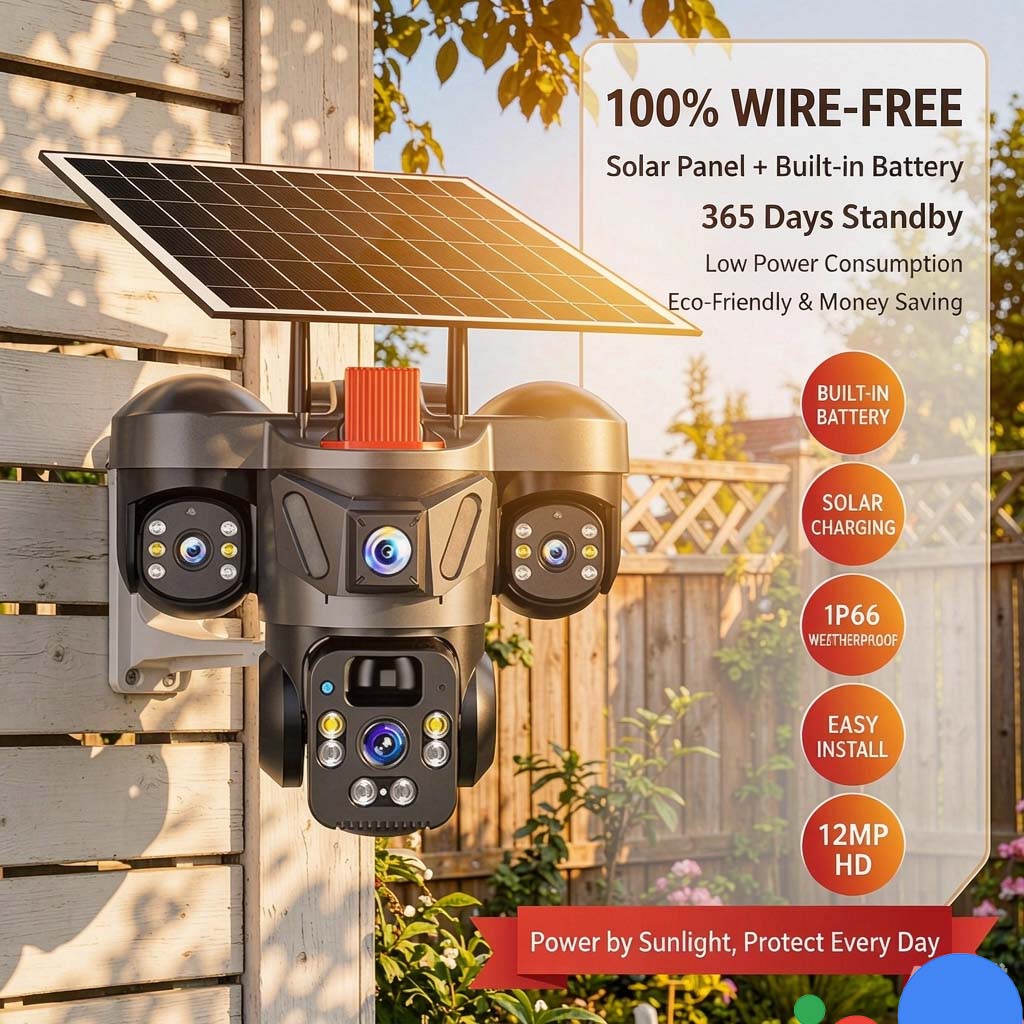

MS31 3-lens solar PTZ security camera — full-color night vision

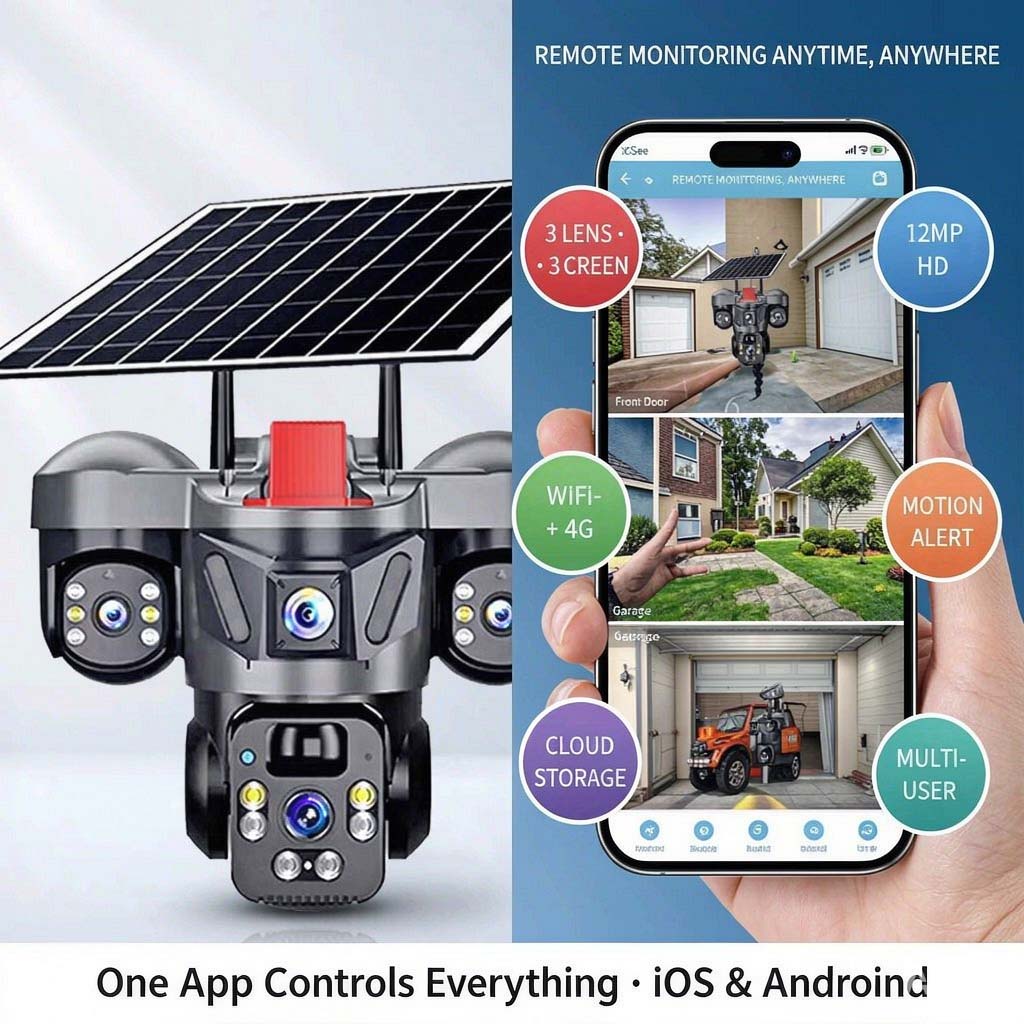

MS31 3-lens solar PTZ security camera — IP66 weatherproof housing

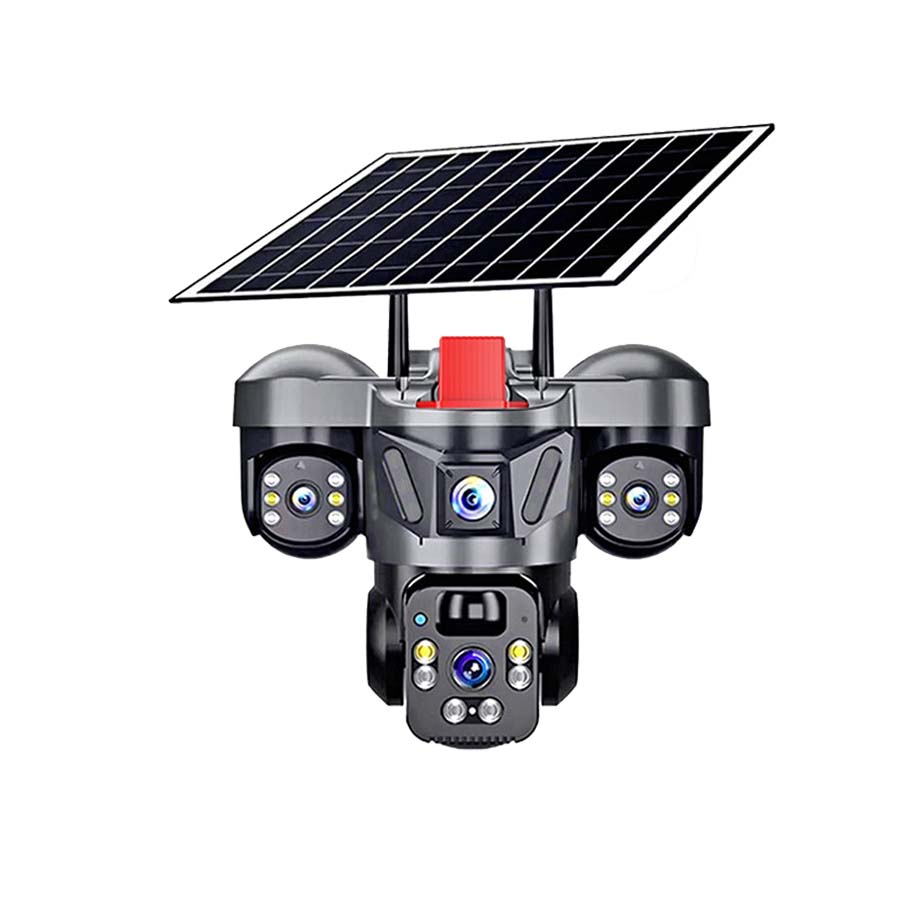

MS31 3-lens solar PTZ security camera — two-way audio intercom
Solar Series · 4G / WiFi

MS31 Solar 3-Lens Camera, 4G / WiFi

Three lenses on one solar-powered camera — order the 4G SIM version or the WiFi version, whichever your site supports. Full-color night vision captures color evidence without trenching for power.

📶 4G or WiFi + Solar — order the version your site supports; zero wiring either way.
👁️ 3-Lens, 3-Channel & PTZ — wide-angle and zoom monitoring for complete, blind-spot-free coverage.
🌧️ IP66 Waterproof & Low-Power — built to withstand harsh weather and ensure continuous operation even on cloudy days.
🔊 Remote Access & Two-Way Audio — real-time viewing, instant alerts and direct two-way talk right from your phone.
OEM / ODM available Sample orders welcome Factory-direct since 2016

Why This Camera

Why This Camera.

Off-Grid

Engineered for places the grid cannot reach

Choose the 4G version and the camera needs no power line and no network cable — a standard SIM and the integrated solar panel are the entire infrastructure. Choose the WiFi version where a router already covers the site. Either way one solar panel and one battery pack keep it running, so there is nothing to wire and nothing to refuel.

Triple

3-lens + PTZ control

The camera features a 3-lens system with PTZ functionality, allowing users to remotely adjust the viewing angle and zoom in on specific areas via mobile app. Three independent lenses cover more ground than one or two-lens cameras — wide overview plus detailed close-ups simultaneously.

Alert

PIR detection + full-color night vision

PIR human detection wakes the camera the moment someone enters the frame and pushes the alert straight to your phone. Infrared plus white-light dual-source night vision keeps the picture in color after dark, so faces, clothing and vehicles come through usable — and the IP66 housing holds the same performance through rain, dust and extreme temperatures.

Engage

Two-way audio, active engagement

Its low-power design extends battery life during cloudy periods. Two-way audio enables live communication, turning passive monitoring into active engagement — talk to visitors, warn intruders, or check in on staff from anywhere.

Technical Specifications

The full spec sheet.

Imaging
Image Sensor1/3" color CMOS Sensor
Resolution2MP + 2MP + 2MP
Effective Pixels1920(H)*2160(V)
CompressionH.264/H.265
Electronic Shutter TimeAuto(1/1.5s~1/30000s)
Minimun Illumination0.01 Lux
S/N Ratio46dB
Scanning SystemProgressive
Video OutputWireless network
Reset ButtonYES
PTZ
Horizontal Rotation Range0~355°
Tilt Rotation Range0~90°
Guard PointsNO
Optics
Focus Length4mm+4mm+4mm
Focus ControlFixed
Lens TypeFixed
Pixels6M Pixels
Night Vision
Infrared LED24PCS Infrared light +24PCS White light
Infrared Distance10M
IR StatusAGC auto control
IR Power OnAuto Control
Connectivity
RJ45NO
ProtocolTCP/IP, UDP/IP, DHCP, MQTT, P2P
ONVIFNO
P2PSupport
4G band optionsEU / Middle East / Africa edition: FDD-LTE B1/B3/B5/B7/B8/B20/B28 · TDD-LTE B38/B40/B41 (standard production). Americas edition: available on custom order, not held in stock — band list confirmed in writing per order.
WIFIVersion available (4G SIM and WiFi are separate versions, specify the destination market at order)
Main Stream1920×2160@15fps
Sub Stream640*720@15fps
Smart Phonesupport
Image & Smart Features
Day/NightColor/ B&W (IR-CUT )
Image ConfigYES
BLCSupport
3DNRSupport
WDRYES
Motion DetectionSupport
Privacy MaskingYES
Recording ModeSDcard
LanguageSimplified Chinese, English, Japanese, German, Russian, French, Italian, Spanish
Audio & Storage
Audio2-Way Audio (MIC and Speaker)
AlarmMotion Detection, PIR human body infrared detection
SD Card SlotSupport Max 256G
Build & Power
Housingplastic,IP66
BracketSupport
IR Cut FilterYES
PowerDC 5V/1.5A or 7.5W solar panel Battery(8000mAh)
Operation Temperature-30°C ~ +60°C
Storage Temperature-30°C ~ +60°C, 0% ~ 90% RH (no condensation)
Packaging
weight1.7KG
Box size262*215*195mm
Outer box size595*490*530MM
Weight of one box20KG(12PCS)
Mobile AppV380 Pro (iOS / Android)

Applications

Where this camera wins.

🌾 Farms & Ranches

The workhorse configuration for agricultural sites: three simultaneous views over gate, yard and feed store from a single solar pole.

🐄 Livestock & Pens

Watch calving pens, poultry houses and water points together — no PTZ rotation delay, no blind window while the motor turns.

🏗️ Construction Yards

Cover material stacks, the site gate and the plant compound in one unit, relocatable as the works advance.

🏞️ Orchards & Open Land

Long-distance coverage across open ground with 4G backhaul where WiFi cannot reach.

🏘️ Estates & Compounds

One unit replaces several fixed cameras around residential compounds, with two-way audio and instant alerts.

Planning a full deployment? See the scenario guides: solar security cameras for farms and ranches and construction site security cameras.

Sizing & setup

Getting the most out of an MS31 install.

Aim the panel, not just the camera

The 7.5 W panel only delivers into the 8000 mAh pack when it gets a clean view of midday sun — equator-facing, out of eave shadow, brushed free of dust in dry season. A unit aimed at the target but with its panel in shade is a unit running on borrowed charge.

One MS31 covers one junction

Three fixed 4 mm lenses hold three separate views permanently — nothing rotates away. Design one unit per junction or approach rather than one per building, and you will not need to explain a blind corner later.

Mount height decides what the PIR sees

Three to four metres suits the 1.7 kg body and puts the PIR cone across the approach path. Higher and you record the tops of heads; lower and the detection zone shortens exactly where you want the earliest warning.

Rated −20 °C to +60 °C

Plastic housing at 10–80% humidity. Gulf and inland desert sites can exceed that in direct sun — tell us the conditions before you order, because shading and placement usually solve it before any custom hardware is needed.

Which model

MS31, MS32, MS43 or MO31?

You want it to follow a subject it has spotted

MS32 carries the same three-lens body with auto-tracking on the pan-tilt head — worth it on long driveways and compound lanes where one alert needs to be followed down its length. See the full spec sheet.

One point needs more than three views

MS43 puts four lenses plus a pan-tilt head on a 16000 mAh pack — the choice for a gate, its approach and both flanks from a single mount. See the full spec sheet.

The site already has mains power

MO31 keeps the three-lens idea on DC power with no panel to aim and no charge budget to manage — and it runs the same V380 Pro app, so both can sit in one installer account. See the full spec sheet.

Ordering & shipping

Terms that decide the deal.

Samples and trial orders

Evaluation samples ship as 1–2 units so you can test on a real site. Trial orders up to 100 units carry their own price tier, and the sample charge is credited against your first bulk order rather than refunded in cash — first bulk orders start at 300 units.

Lead time

Standard-configuration orders ship in 7–14 days. OEM branding — logo, carton artwork and firmware defaults — adds time and is quoted against the specific job instead of assumed.

Payment and trade terms

Standard terms are T/T with 50% deposit and 50% before shipment. We quote FOB Shenzhen, or CIF to your port. Delivered-duty-paid is not something we sell — the customs entry stays in your name.

Warranty and spares

Twelve months, handled direct from our own factory in Shenzhen — spare parts, firmware updates and RMA replacements come from the people who built the unit.

Packing and freight

Ships in master cartons of 12 units, carton footprint 595*490*530MM, 20KG gross per carton. Give us your port and we will quote freight on CIF terms, or hand over on FOB Shenzhen if you run your own forwarder.

FAQ

What buyers usually ask.

What's the MOQ for OEM orders?

Trial orders start small — talk to us about your volume. Logo printing, custom packaging and firmware defaults are available on OEM terms; we scale with you from first sample to full containers.

Does it really work through cloudy weeks or winter?

Yes — every solar model ships with a Li-ion pack built from replaceable 18650 cells, and every one of them records continuously rather than in clips. Capacity in mAh is stated on the datasheet, and sizing is done against your local worst-week sunlight rather than a spec-sheet average; in low-sun regions we recommend the dual-panel MS4x series for extra harvest margin.

Should I order the 4G version or the WiFi version?

It depends on the site, not the camera. The 4G version needs only a standard SIM on a local data plan and works where there is no broadband at all; the WiFi version joins an existing router. Everything else — three lenses, PTZ, night vision, solar power — is identical. Tell us the destination market and we quote the right version and band set.

How does full-color night vision work?

Two light sources share the housing — infrared LEDs for covert illumination and white-light LEDs that switch the sensor to full color. The result is footage that shows faces, clothing and vehicle colors rather than grayscale, which matters when an image has to stand up as evidence.

What certifications are available?

We manufacture as an OEM and do not hold finished CE or FCC test reports under our own name. What we do instead is support your own local approval: we supply the documents we actually hold, including detailed specifications, label artwork and wiring drawings, plus the battery paperwork your shipment needs. Tell us your destination market and what your authority asks for, and we will confirm in writing which documents ship with the order and which your side has to obtain locally.

What about after-sales support?

Spare parts, firmware updates and warranty handling come from our own factory in Shenzhen. Your customers stay supported — and so does your reputation.

Which mobile app do the cameras use?

V380 Pro (iOS / Android) is the companion app — free to download, with live view, playback, PIR push alerts, two-way talk and multi-user sharing. Pair by scanning the QR code on the camera.

Can it share one app account with my other cameras?

If your other units run V380 Pro — the MO31, MO32, MS32, MS21, MS22, MS41 and MSL31 among them — then yes, they sit together in one account, which is usually how installers prefer to hand a site over. Models on the Hieasy side such as MS42 and MS23 are a separate app; tell us before you mix fleets and we will steer you to the right family.

How many days fit on the 256 GB card?

It depends on whether you record continuously or only on motion events, and on how busy the scene is. The slot takes up to 256 GB. Give us your retention target — three days, a week, longer — and we will size the card with you and ship it fitted.

Which networks will the 4G version run on?

Tell us the carriers the units will sit on and we match the module to them, confirming the band plan with you before production rather than shipping a generic configuration. The WiFi version is the alternative wherever a router is reliably in range.

What are the payment and delivery terms on the MS31?

Deposit and balance by T/T — 50% to start and 50% before shipment — quoted FOB Shenzhen or CIF to your port. Standard configurations ship in 7–14 days; OEM branding adds time and is quoted per job. Delivered-duty-paid terms are not offered.
