MS32 3-lens solar security camera — three simultaneous views

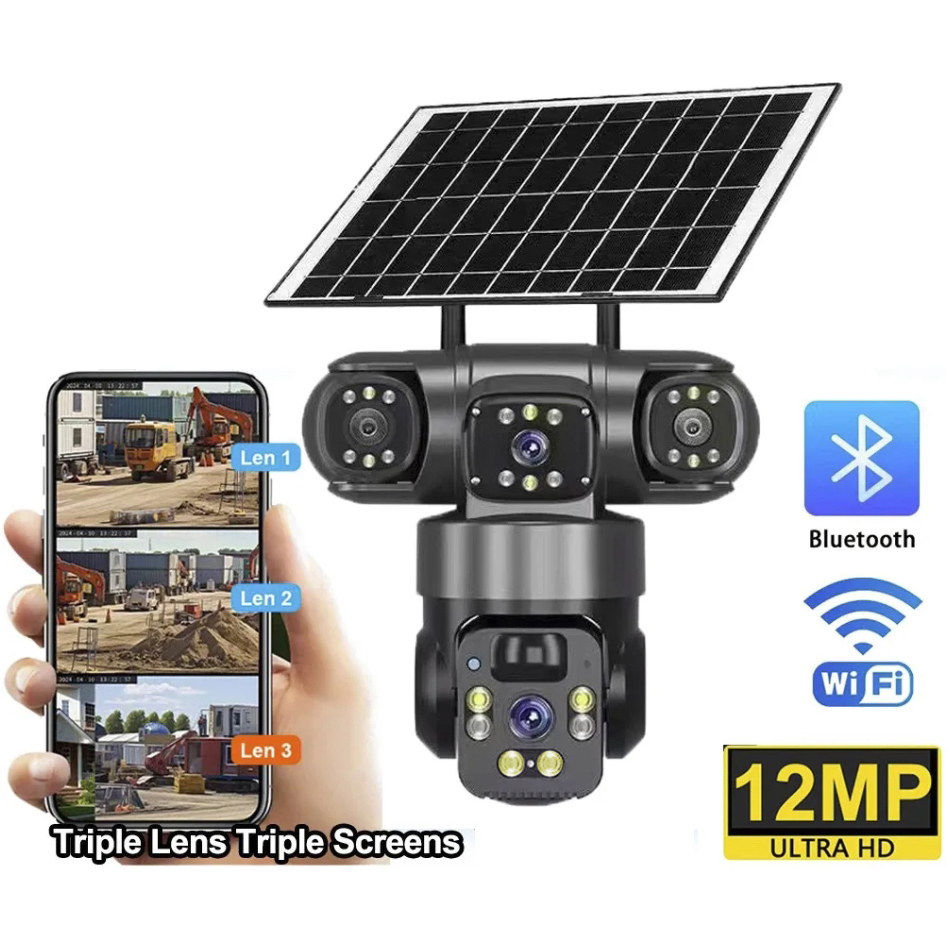

MS32 3-lens solar security camera — 360-degree PTZ remote control

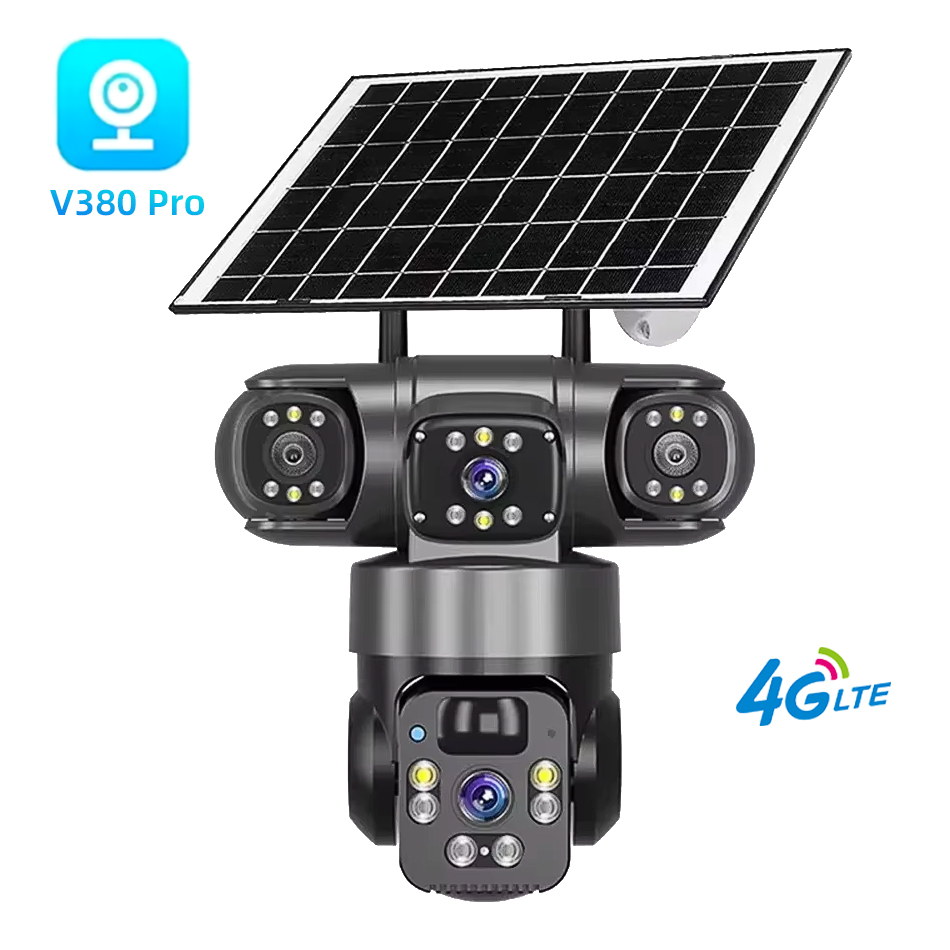

MS32 3-lens solar security camera — full-color night vision
MS32 3-lens solar security camera — PIR human detection

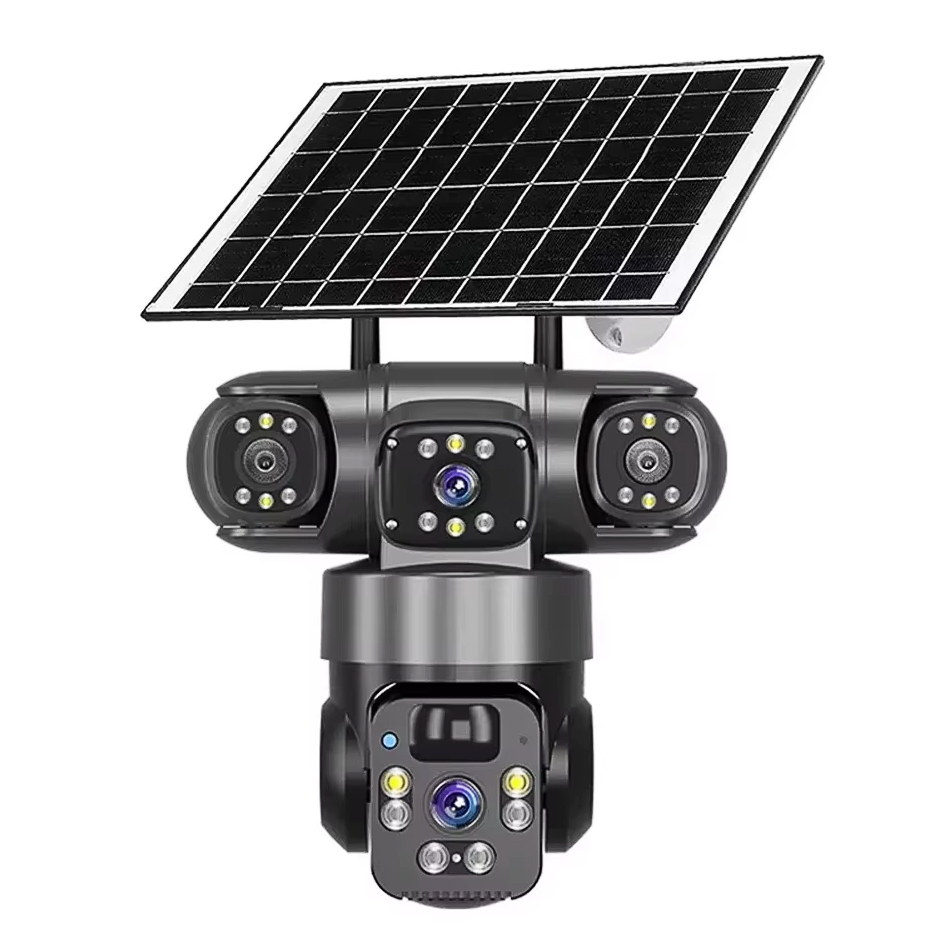

MS32 3-lens solar security camera — 4G solar powered
Solar Series · Triple PTZ

MS32 Triple-Lens Solar PTZ Camera with Auto-Tracking

A 3-lens solar-powered security camera with 4G connectivity. Three independent lenses deliver wide-angle and zoom monitoring simultaneously for complete, blind-spot-free coverage. IP66 waterproof and low-power design keeps it running through cloudy days. Remote access and two-way audio from your smartphone.

📶 4G & Solar Powered — truly wireless deployment with zero wiring required.
👁️ 3-Lens, 3-Channel & PTZ — wide-angle and zoom monitoring for complete, blind-spot-free coverage.
🌧️ IP66 Waterproof & Low-Power — built to withstand harsh weather and ensure continuous operation even on cloudy days.
🔊 Remote Access & Two-Way Audio — real-time viewing, instant alerts and direct two-way talk right from your phone.
OEM / ODM available Sample orders welcome Factory-direct since 2016

Why This Camera

Why This Camera.

Off-Grid

Engineered for places the grid cannot reach

The 4G solar-powered low-power outdoor camera is engineered for environments where traditional power and network infrastructure are unavailable or impractical. Its integrated solar panel and high-capacity battery ensure continuous operation without wiring, making it ideal for remote or temporary installations.

Triple

3-lens + PTZ control

The camera features a 3-lens system with PTZ functionality, allowing users to remotely adjust the viewing angle and zoom in on specific areas via mobile app. Three independent lenses cover more ground than one or two-lens cameras — wide overview plus detailed close-ups simultaneously.

Deter

PIR detection + visual deterrence

Equipped with PIR motion detection and alert lights, it actively deters intruders by triggering visual alarms and sending real-time notifications to your smartphone. The IP66 waterproof rating ensures reliable performance in rain, dust and extreme temperatures.

Engage

Two-way audio, active engagement

Its low-power design extends battery life during cloudy periods. Two-way audio enables live communication, turning passive monitoring into active engagement — talk to visitors, warn intruders, or check in on staff from anywhere.

Technical Specifications

The full spec sheet.

Imaging
Image Sensor1/3" color CMOS Sensor
Resolution2MP + 2MP + 2MP
Effective Pixels1920(H)*2160(V)
CompressionH.264/H.265
Electronic Shutter TimeAuto(1/1.5s~1/30000s)
Minimun Illumination0.01 Lux
S/N Ratio46dB
Scanning SystemProgressive
Video OutputWireless network
Reset ButtonYES
PTZ
Horizontal Rotation Range0~355°
Tilt Rotation Range0~90°
Guard PointsNO
Optics
Focus Length4mm+4mm+4mm
Focus ControlFixed
Lens TypeFixed
Pixels6M Pixels
Night Vision
Infrared LED24PCS Infrared light +24PCS White light
Infrared Distance10M
IR StatusAGC auto control
IR Power OnAuto Control
Connectivity
RJ45NO
ProtocolTCP/IP, UDP/IP, DHCP, MQTT, P2P
ONVIFNO
P2PSupport
4G band optionsEU / Middle East / Africa edition: FDD-LTE B1/B3/B5/B7/B8/B20/B28 · TDD-LTE B38/B40/B41 (standard production). Americas edition: available on custom order, not held in stock — band list confirmed in writing per order.
WIFIVersion available (4G SIM and WiFi are separate versions, specify the destination market at order)
Main Stream1920×2160@15fps
Sub Stream640*720@15fps
Smart Phonesupport
Image & Smart Features
Day/NightColor/ B&W (IR-CUT )
Image ConfigYES
BLCSupport
3DNRSupport
WDRYES
Motion DetectionSupport
Privacy MaskingYES
Recording ModeSDcard
LanguageSimplified Chinese, English, Japanese, German, Russian, French, Italian, Spanish
Audio & Storage
Audio2-Way Audio (MIC and Speaker)
AlarmMotion Detection, PIR human body infrared detection
SD Card SlotSupport Max 256G
Build & Power
Housingplastic,IP66
BracketSupport
IR Cut FilterYES
PowerDC 5V/1.5A or 7.5W solar panel Battery(8000mAh)
Operation Temperature-30°C ~ +60°C
Storage Temperature-30°C ~ +60°C, 0% ~ 90% RH (no condensation)
Packaging
weight1.7KG
Box size262*215*195mm
Outer box size595*490*530MM
Weight of one box20KG(12PCS)
Mobile AppV380 Pro (iOS / Android)

Applications

Where this camera wins.

🅿️ Parking Areas & Lots

Cover entry lane, rows and pay station together. Full-color night vision records vehicle colour and detail without extra lighting.

🚧 Entrances & Checkpoints

The gate deserves a dedicated fixed view. Wide-angle plus zoom lenses record every vehicle at the only point it must slow down.

🏭 Yards & Depots

Watch the loading lane and the boundary fence of transport yards, with alerts pushed the moment movement is detected.

🏘️ Residential Complexes

One unit over resident parking and the gate, replacing several fixed cameras and all of their cabling.

🌾 Farm Entrances

Record every vehicle on the only approach road — often more useful than watching the buildings themselves.

Planning a full deployment? See the scenario guides: parking lot camera solutions and perimeter security cameras.

Placement notes

Auto-tracking works well — in the right spot.

Give it something to follow sideways

Tracking follows a subject moving across the frame far better than one walking straight at the lens. Aim it along a driveway or a fence line rather than straight down a short approach, and the tracking has something to work with.

Clear the PIR cone of moving heat

Overhanging branches, a flapping tarpaulin and metal that bakes in the sun all register as motion to a PIR sensor. Trim back anything that moves in the wind before you blame the camera for false alerts.

Rotation spends charge budget

The 7.5 W panel feeds 8000 mAh, and every tracking sweep draws from it. On sites with heavy night traffic, event-based recording preserves far more autonomy than 24-hour continuous capture.

Rated −20 °C to +60 °C

Same plastic housing and 10–80% humidity range as the rest of the line. On hot exposed sites the simple fix is usually shade over the body, not a change of hardware — say the word up front.

Which model

MS32, MS31 or MO32?

You want the alert followed without paying for tracking

MS31 is the same three-lens, three-view body on the same V380 Pro app without the tracking head — the better buy where every approach already sits in a fixed frame. See the full spec sheet.

One mount has to cover four directions

MS43 adds a fourth lens to its pan-tilt head and carries a larger 16000 mAh pack — fewer units to mount where the views outnumber three. See the full spec sheet.

Mains power is already on site

MO32 moves the same idea onto DC power with a warning tone and two-way talk, no panel to aim and no charge budget to plan around. See the full spec sheet.

Ordering & shipping

Terms that decide the deal.

Samples and trial orders

Evaluation samples ship as 1–2 units so you can test on a real site. Trial orders up to 100 units carry their own price tier, and the sample charge is credited against your first bulk order rather than refunded in cash — first bulk orders start at 300 units.

Lead time

Standard-configuration orders ship in 7–14 days. OEM branding — logo, carton artwork and firmware defaults — adds time and is quoted against the specific job instead of assumed.

Payment and trade terms

Standard terms are T/T with 50% deposit and 50% before shipment. We quote FOB Shenzhen, or CIF to your port. Delivered-duty-paid is not something we sell — the customs entry stays in your name.

Warranty and spares

Twelve months, handled direct from our own factory in Shenzhen — spare parts, firmware updates and RMA replacements come from the people who built the unit.

Packing and freight

Ships in master cartons of 12 units, carton footprint 595*490*530MM, 20KG gross per carton. Give us your port and we will quote freight on CIF terms, or hand over on FOB Shenzhen if you run your own forwarder.

FAQ

What buyers usually ask.

What's the MOQ for OEM orders?

Trial orders start small — talk to us about your volume. Logo printing, custom packaging and firmware defaults are available on OEM terms; we scale with you from first sample to full containers.

Does it really work through cloudy weeks or winter?

Yes — every solar model ships with a Li-ion pack built from replaceable 18650 cells, and every one of them records continuously rather than in clips. Capacity in mAh is stated on the datasheet, and sizing is done against your local worst-week sunlight rather than a spec-sheet average; in low-sun regions we recommend the dual-panel MS4x series for extra harvest margin.

Can all three PTZ lenses track at the same time?

Each lens can be set independently — fixed preset, manual aim, or auto-tracking. In practice, most customers set one lens to auto-track the main approach and the other two to fixed presets for the other zones.

What is black-light night vision?

Black-light (or super-starlight) night vision uses a large-aperture low-illumination sensor plus invisible 940nm IR fill. It delivers full-color or near-color footage in near-total darkness without the visible red glow of conventional IR cameras — clearer evidence, zero giveaway.

What certifications are available?

We manufacture as an OEM and do not hold finished CE or FCC test reports under our own name. What we do instead is support your own local approval: we supply the documents we actually hold, including detailed specifications, label artwork and wiring drawings, plus the battery paperwork your shipment needs. Tell us your destination market and what your authority asks for, and we will confirm in writing which documents ship with the order and which your side has to obtain locally.

What about after-sales support?

Spare parts, firmware updates and warranty handling come from our own factory in Shenzhen. Your customers stay supported — and so does your reputation.

Which mobile app do the cameras use?

V380 Pro (iOS / Android) is the companion app — free to download, with live view, playback, PIR push alerts, two-way talk and multi-user sharing. Pair by scanning the QR code on the camera.

What will set the tracking off — animals, cars, headlights?

Detection keys on PIR human-body infrared rather than on pixel change alone, which is why a passing cat or a swinging branch usually does not start a sweep. Sources of fast heat change — an exhaust aimed at the unit, a metal sheet baking then cooling — are the things worth siting away from.

Do I still aim it myself, or does tracking do that?

You still aim it. The three fixed 4 mm lenses set the baseline coverage and they never move; tracking extends your view within the remaining pan and tilt range once something trips the sensor. Set the resting frame first, then let it follow.

Does tracking work after dark?

Yes — detection is infrared rather than image-based, so it does not depend on light. Colour detail at night comes from the white-light array, specified at 10 m; beyond that distance you get black-and-white infrared footage, so plan camera spacing to that number.

What are the payment and delivery terms on the MS32?

Deposit and balance by T/T — 50% to start and 50% before shipment — quoted FOB Shenzhen or CIF to your port. Standard configurations ship in 7–14 days; OEM branding adds time and is quoted per job. Delivered-duty-paid terms are not offered.
