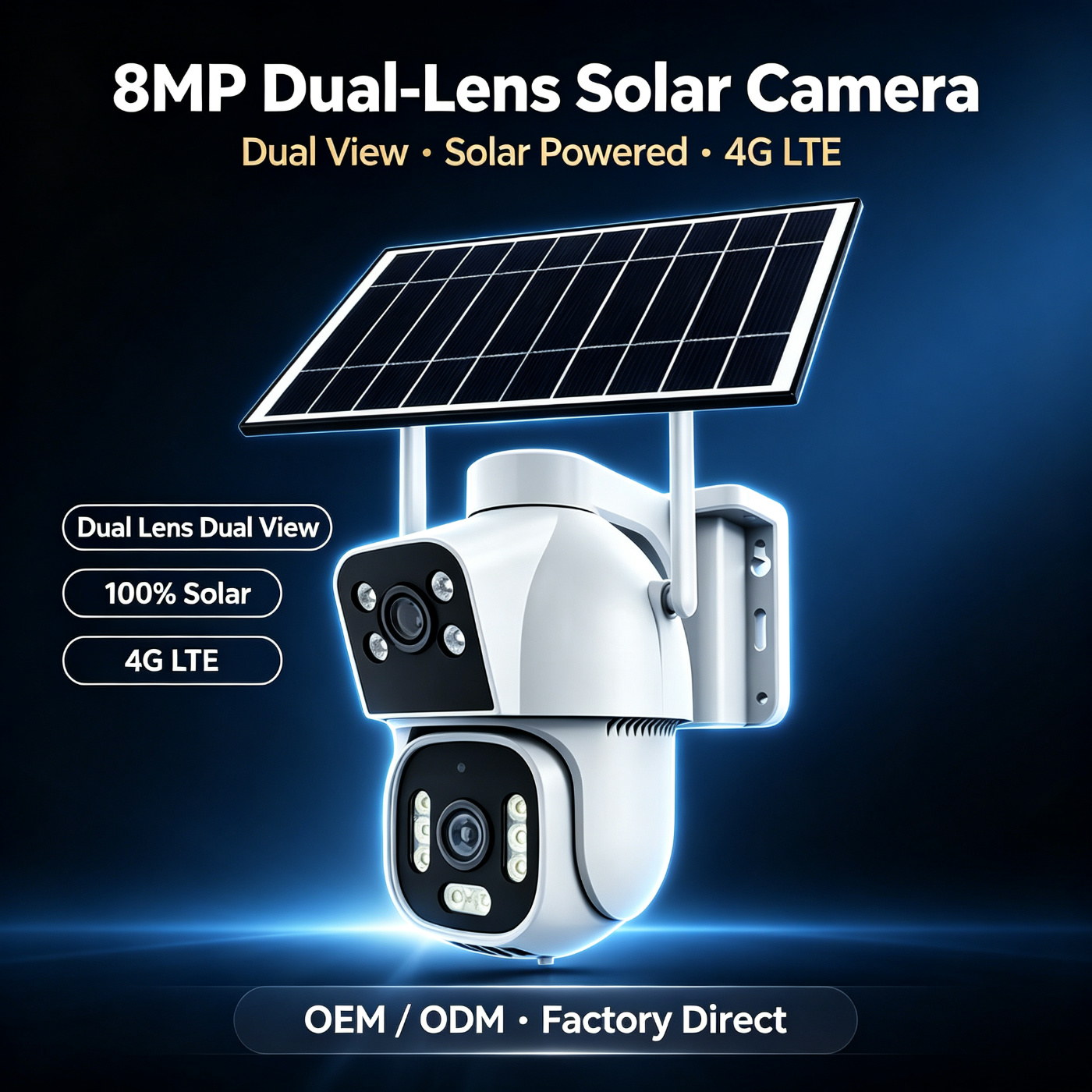

MS23 dual-lens solar security camera — dual-lens PTZ control

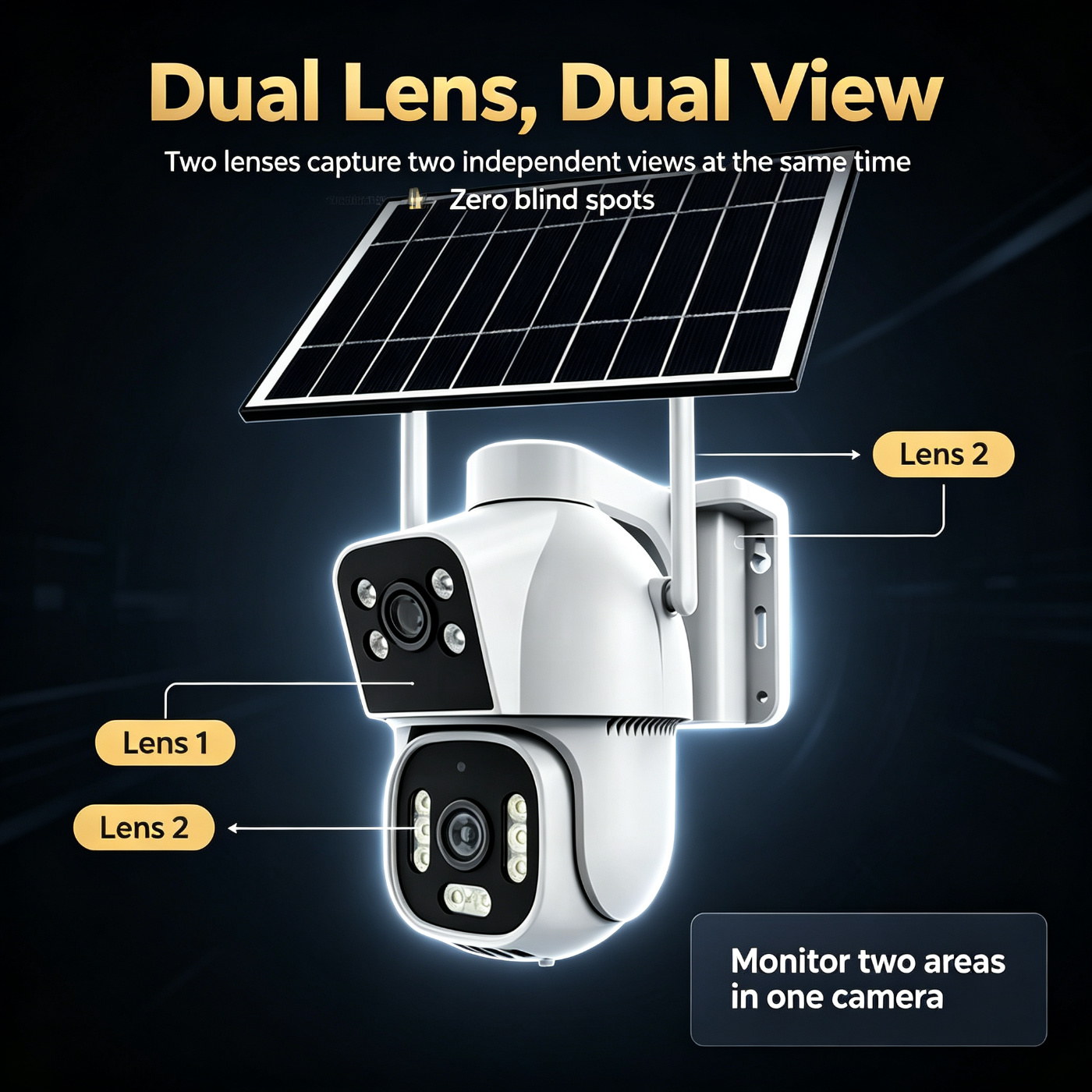

MS23 dual-lens solar security camera — 4G solar powered deployment

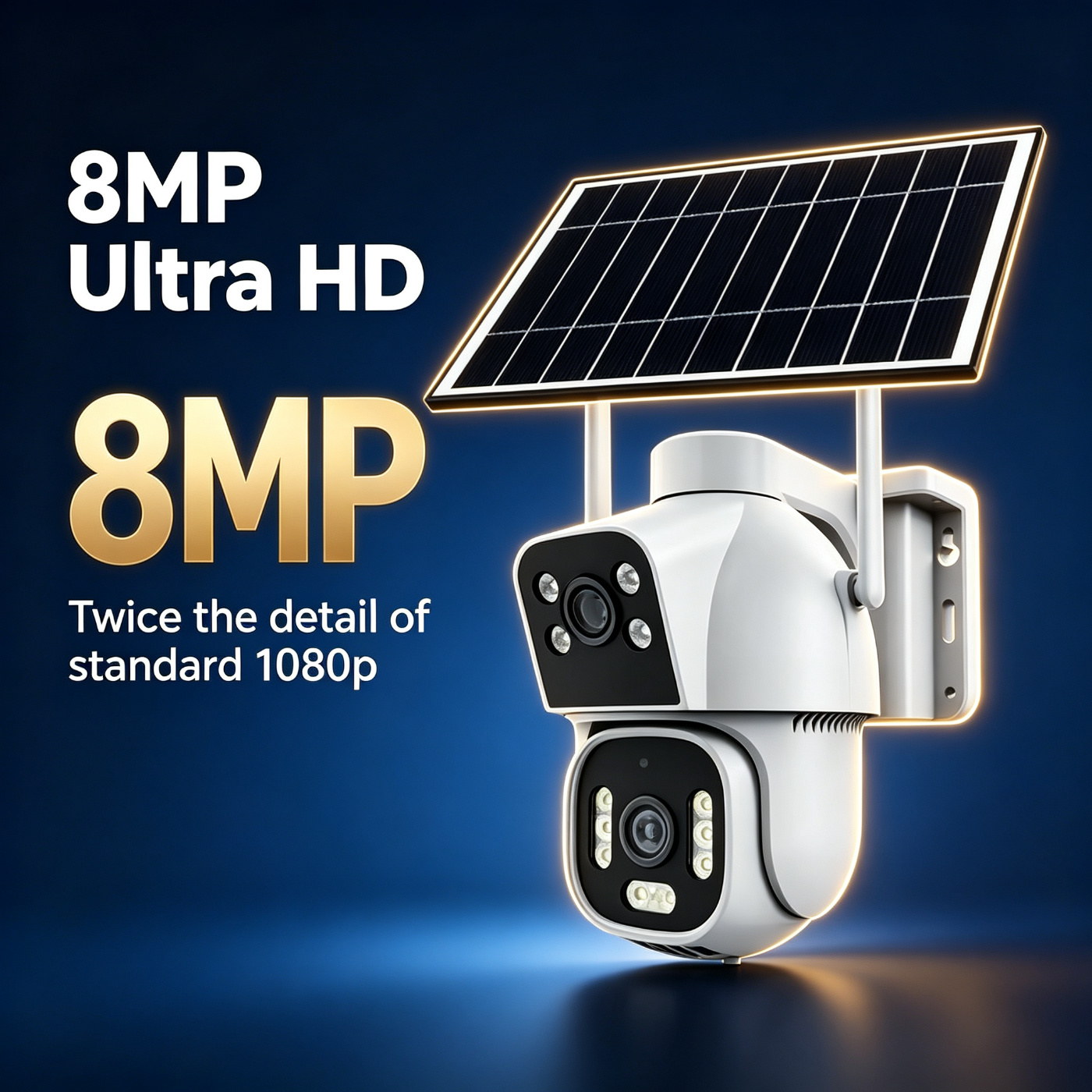

MS23 dual-lens solar security camera — PIR human detection

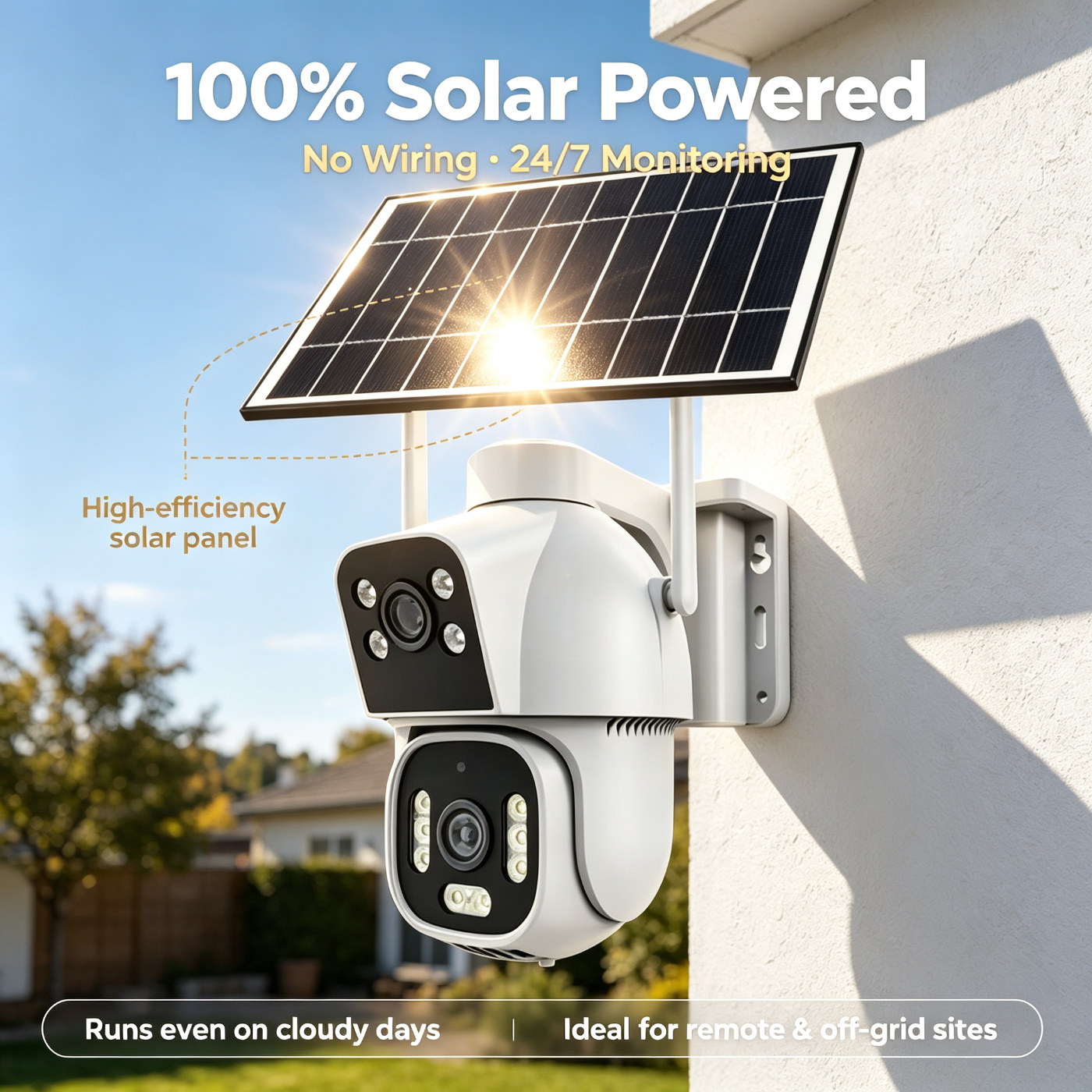

MS23 dual-lens solar security camera — full-color night vision

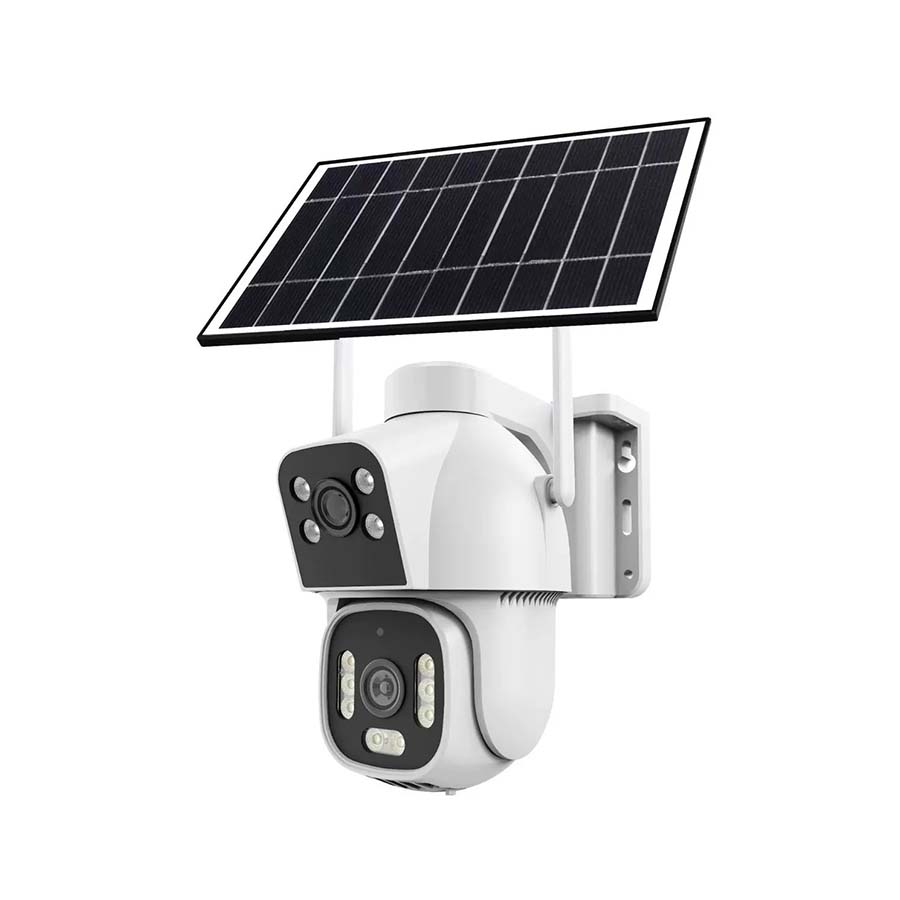

MS23 dual-lens solar security camera — IP66 weatherproof housing
Solar Series · White Finish

MS23 White Dual-Lens Solar Security Camera

A compact dual-lens solar PTZ with 4G connectivity. Fixed wide-angle plus PTZ detail, no wiring required. IP66 weatherproof and low-power design keeps it running through cloudy days. Remote access and two-way audio give you real-time viewing and live intercom from anywhere.

📶 4G & Solar Powered — no wiring required, enabling truly wireless deployment.
👁️ Dual-Lens & PTZ Control — wide-angle and zoom monitoring for complete, blind-spot-free coverage.
🌧️ IP66 Weatherproof & Low Power — withstands harsh weather and ensures continuous operation even on cloudy days.
🔊 Remote Access & Two-Way Audio — real-time viewing, instant alerts and live intercom control right from your smartphone.
OEM / ODM available Sample orders welcome Factory-direct since 2016

Why This Camera

Why This Camera.

Off-Grid

Engineered for places the grid cannot reach

The 4G solar-powered low-power outdoor camera is engineered for environments where traditional power and network infrastructure are unavailable or impractical. Its integrated solar panel and high-capacity battery ensure continuous operation without wiring, making it ideal for remote or temporary installations.

Dual

Dual-lens + PTZ control

The camera features a dual-lens system with PTZ functionality, allowing users to remotely adjust the viewing angle and zoom in on specific areas via mobile app. A fixed wide-angle holds the scene while the PTZ lens captures detail — context and close-up in one device.

Deter

PIR detection + visual deterrence

Equipped with PIR motion detection and alert lights, it actively deters intruders by triggering visual alarms and sending real-time notifications to your smartphone. The IP66 waterproof rating ensures reliable performance in rain, dust and extreme temperatures.

Engage

Two-way audio, active engagement

Its low-power design extends battery life during cloudy periods. Two-way audio enables live communication, turning passive monitoring into active engagement — talk to visitors, warn intruders, or check in on staff from anywhere.

Technical Specifications

The full spec sheet.

Imaging
Image Sensor1/3" color CMOS Sensor
Resolution2MP + 2MP
Effective Pixels1920(H)*2160(V)
CompressionH.264/H.265
Electronic Shutter TimeAuto(1/1.5s~1/30000s)
Minimun Illumination0.01 Lux
S/N Ratio46dB
Scanning SystemProgressive
Video OutputWireless network
Reset ButtonYES
PTZ
Horizontal Rotation Range0~355°
Tilt Rotation Range0~90°
Guard PointsNO
Optics
Focus Length4mm+4mm
Focus ControlFixed
Lens TypeFixed
Pixels4M Pixels
Night Vision
Infrared LED12PCS Infrared light +12PCS White light
Infrared Distance10M
IR StatusAGC auto control
IR Power OnAuto Control
Connectivity
RJ45NO
ProtocolTCP/IP, UDP/IP, DHCP, MQTT, P2P
ONVIFNO
P2PSupport
4G band optionsEU / Middle East / Africa edition: FDD-LTE B1/B3/B5/B7/B8/B20/B28 · TDD-LTE B38/B40/B41 (standard production). Americas edition: available on custom order, not held in stock — band list confirmed in writing per order.
WIFIVersion available (4G SIM and WiFi are separate versions, specify the destination market at order)
Main Stream1920*2160@15fps
Sub Stream640*720@15fps
Smart Phonesupport
Image & Smart Features
Day/NightColor/ B&W (IR-CUT )
Image ConfigYES
BLCSupport
3DNRSupport
WDRYES
Motion DetectionSupport
Privacy MaskingYES
Recording ModeSDcard
LanguageSimplified Chinese, English, Japanese, German, Russian, French, Italian, Spanish
Audio & Storage
Audio2-Way Audio (MIC and Speaker)
AlarmMotion Detection, PIR human body infrared detection
SD Card SlotSupport Max 256G
Build & Power
Housingplastic,IP66
BracketSupport
IR Cut FilterYES
PowerDC 5V/1.5A or 7.5W solar panel Battery(12000mAh)
Operation Temperature-30°C ~ +60°C
Storage Temperature-30°C ~ +60°C, 0% ~ 90% RH (no condensation)
Packaging
weight1.6KG
Box size260MM*190MM*125MM
Outer box size52.5X41.5X56.9CM
Weight of one box20KG(12PCS)
Mobile AppHieasy (iOS / Android)

Applications

Where this camera wins.

🏠 First-Time Installations

An entry point into solar surveillance: dual-lens coverage, PIR alerts and app control at the most accessible price in the catalogue.

🏘️ Rental & Seasonal Property

Protect vacant houses, holiday homes and rental compounds that sit empty for weeks at a time.

🌾 Small Plots & Gardens

One unit covers the gate and yard of a smallholding — solar powered, no electrician, no monthly site visits.

🏪 Small Shops & Stores

Keep an eye on stock doors and side alleys after closing, with full-color night footage and instant alerts.

🚗 Driveways & Garages

Watch vehicles and entries with wide-angle plus zoom views, and warn off prowlers through two-way audio.

Planning a full deployment? See the scenario guides: solar security cameras for farms and ranches and off-grid and remote site cameras.

Placement notes

Where a white dual-lens unit earns its keep.

White is a practical choice, not only a look

A light shell absorbs less sun than a dark one and draws less attention on residential sites where a black box reads as surveillance equipment. The trade-off is that dust and insect marks show more readily — pick a mounting spot you can reach with a cloth.

Two views, one mount, one packet

Two 4 mm fixed lenses give a wide view and a detail view together on one screen — the right shape for a doorway, a gate or a single parking bay rather than a whole compound.

Serious autonomy for the weight

At 1.6 kg carrying 12000 mAh from a 7.5W panel, this has one of the better autonomy-to-weight ratios in the solar line, which is why it suits wall and pole mounts you would rather not reinforce.

Rated −20 °C to +60 °C

Plastic housing at 10–80% humidity, bracket hardware supplied. Shaded placement extends both finish life and battery life in hot climates.

Which model

MS23, MS31 or MSL31?

One point needs three directions watched

MS31 holds three fixed views at once for junction and approach coverage — and unlike this model it runs V380 Pro. See the full spec sheet.

A camera plus lighting goes in anyway

MSL31 puts the cameras inside a solar street-light pole: one foundation, one crew, one maintenance visit instead of two. See the full spec sheet.

A compound corner needs four views and a tracking head

MS43 is the step up where two views will not cover what that point demands. See the full spec sheet.

Ordering & shipping

Terms that decide the deal.

Samples and trial orders

Evaluation samples ship as 1–2 units so you can test on a real site. Trial orders up to 100 units carry their own price tier, and the sample charge is credited against your first bulk order rather than refunded in cash — first bulk orders start at 300 units.

Lead time

Standard-configuration orders ship in 7–14 days. OEM branding — logo, carton artwork and firmware defaults — adds time and is quoted against the specific job instead of assumed.

Payment and trade terms

Standard terms are T/T with 50% deposit and 50% before shipment. We quote FOB Shenzhen, or CIF to your port. Delivered-duty-paid is not something we sell — the customs entry stays in your name.

Warranty and spares

Twelve months, handled direct from our own factory in Shenzhen — spare parts, firmware updates and RMA replacements come from the people who built the unit.

Packing and freight

Ships in master cartons of 12 units, carton footprint 52.5X41.5X56.9CM, 20KG gross per carton. Give us your port and we will quote freight on CIF terms, or hand over on FOB Shenzhen if you run your own forwarder.

FAQ

What buyers usually ask.

What's the MOQ for OEM orders?

Trial orders start small — talk to us about your volume. Logo printing, custom packaging and firmware defaults are available on OEM terms; we scale with you from first sample to full containers.

Does it really work through cloudy weeks or winter?

Yes — every solar model ships with a Li-ion pack built from replaceable 18650 cells, and every one of them records continuously rather than in clips. Capacity in mAh is stated on the datasheet, and sizing is done against your local worst-week sunlight rather than a spec-sheet average; in low-sun regions we recommend the dual-panel MS4x series for extra harvest margin.

Is white available on other solar models?

Selectively — MS23 is our dedicated white-finish dual-lens, and MS43 is the white dual-panel premium model. For other SKUs in white, talk to us about OEM color runs; minimums apply.

What is black-light night vision?

Black-light (or super-starlight) night vision uses a large-aperture low-illumination sensor plus invisible 940nm IR fill. It delivers full-color or near-color footage in near-total darkness without the visible red glow of conventional IR cameras — clearer evidence, zero giveaway.

What certifications are available?

We manufacture as an OEM and do not hold finished CE or FCC test reports under our own name. What we do instead is support your own local approval: we supply the documents we actually hold, including detailed specifications, label artwork and wiring drawings, plus the battery paperwork your shipment needs. Tell us your destination market and what your authority asks for, and we will confirm in writing which documents ship with the order and which your side has to obtain locally.

What about after-sales support?

Spare parts, firmware updates and warranty handling come from our own factory in Shenzhen. Your customers stay supported — and so does your reputation.

Which mobile app do the cameras use?

Hieasy (iOS / Android) is the companion app — free to download, with live view, playback, PIR push alerts, two-way talk and multi-user sharing. Pair by scanning the QR code on the camera.

Does the white finish hold up in strong sun?

It is the same UV-stable plastic housing used across the line, rated −20 °C to +60 °C. In practice the two things that age a light-coloured shell are direct afternoon sun and accumulated dust — mounting under an eave where the view still works costs nothing and buys years.

Which card should I put in it?

The slot takes up to 256 GB. If the unit will write continuously rather than on events, use an endurance-rated card designed for constant rewriting; a standard card is fine for event-based recording. We can supply either, fitted and formatted.

Do I need one app account per camera?

No — Hieasy-family units all sit under the same installer account, which is how most sites get handed over. What does matter is that Hieasy and V380 Pro are separate apps, so tell us what else you run before ordering a mixed fleet.

What are the payment and delivery terms on the MS23?

Deposit and balance by T/T — 50% to start and 50% before shipment — quoted FOB Shenzhen or CIF to your port. Standard configurations ship in 7–14 days; OEM branding adds time and is quoted per job. Delivered-duty-paid terms are not offered.
