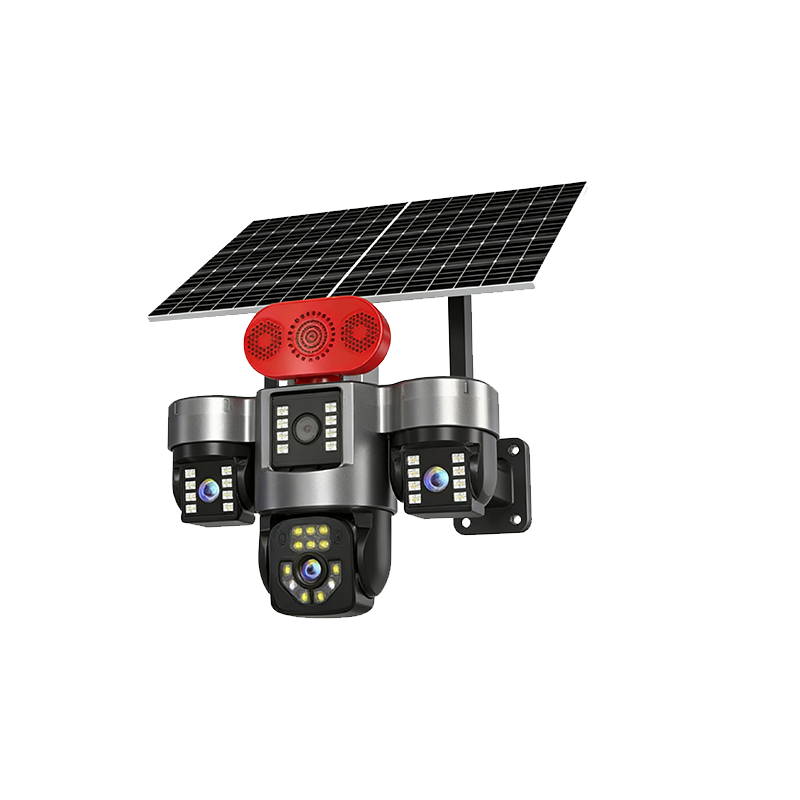

A 3-lens solar-powered security camera with 4G connectivity. Three independent lenses deliver wide-angle and zoom monitoring simultaneously for complete, blind-spot-free coverage. IP66 waterproof and low-power design keeps it running through cloudy days. Remote access and two-way audio from your smartphone.
Why This Camera
The 4G solar-powered low-power outdoor camera is engineered for environments where traditional power and network infrastructure are unavailable or impractical. Its integrated solar panel and high-capacity battery ensure continuous operation without wiring, making it ideal for remote or temporary installations.
The camera features a 3-lens system with PTZ functionality, allowing users to remotely adjust the viewing angle and zoom in on specific areas via mobile app. Three independent lenses cover more ground than one or two-lens cameras — wide overview plus detailed close-ups simultaneously.

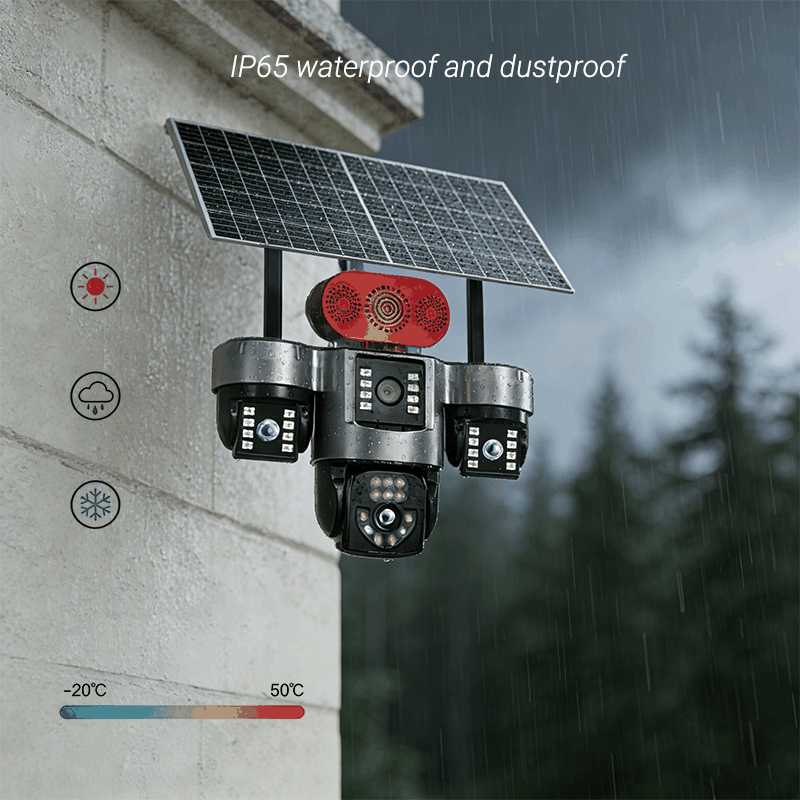

Equipped with PIR motion detection and alert lights, it actively deters intruders by triggering visual alarms and sending real-time notifications to your smartphone. The IP66 waterproof rating ensures reliable performance in rain, dust and extreme temperatures.
Its low-power design extends battery life during cloudy periods. Two-way audio enables live communication, turning passive monitoring into active engagement — talk to visitors, warn intruders, or check in on staff from anywhere.
Technical Specifications
| Imaging | |
| Image Sensor | 1/3" color CMOS Sensor |
|---|---|
| Resolution | 2MP + 2MP + 2MP |
| Effective Pixels | 1920(H)*2160(V) |
| Compression | H.264/H.265 |
| Electronic Shutter Time | Auto(1/1.5s~1/30000s) |
| Minimun Illumination | 0.01 Lux |
| S/N Ratio | 46dB |
| Scanning System | Progressive |
| Video Output | Wireless network |
| Reset Button | YES |
| PTZ | |
| Horizontal Rotation Range | 0~355° |
| Tilt Rotation Range | 0~90° |
| Guard Points | NO |
| Optics | |
| Focus Length | 4MM+4MM+4MM |
| Focus Control | Fixed |
| Lens Type | Fixed |
| Pixels | 6M Pixels |
| Night Vision | |
| Infrared LED | 28PCS Infrared light +28PCS White light |
| Infrared Distance | 10M |
| IR Status | AGC auto control |
| IR Power On | Auto Control |
| Connectivity | |
| RJ45 | NO |
| Protocol | TCP/IP, UDP/IP, DHCP, MQTT, P2P |
| ONVIF | NO |
| P2P | Support |
| 4G | FDD-LTE: B1/B3/B5/B7/B8/B20/B28 · TDD-LTE: B38/B40/B41 · GSM: 900/1800 MHz |
| 4G band options | EU / Middle East / Africa edition: FDD-LTE B1/B3/B5/B7/B8/B20/B28 · TDD-LTE B38/B40/B41 (standard production). Americas edition: available on custom order, not held in stock — band list confirmed in writing per order. |
| WIFI | Version available (4G SIM and WiFi are separate versions, specify the destination market at order) |
| Main Stream | 1920*2160@15fps |
| Sub Stream | 640*720@15fps |
| Smart Phone | support |
| Image & Smart Features | |
| Day/Night | Color/ B&W (IR-CUT ) |
| Image Config | YES |
| BLC | Support |
| 3DNR | Support |
| WDR | YES |
| Motion Detection | Support |
| Privacy Masking | YES |
| Recording Mode | SDcard |
| Language | Simplified Chinese, English, Japanese, German, Russian, French, Italian, Spanish |
| Audio & Storage | |
| Audio | 2-Way Audio (MIC and Speaker) |
| Alarm | Motion Detection, PIR human body infrared detection |
| SD Card Slot | Support Max 256GB |
| Build & Power | |
| Housing | plastic,IP66 |
| Bracket | Support |
| IR Cut Filter | YES |
| Power | DC 5V/1.5A or 7.5W solar panel Battery(12000mAh) |
| Operation Temperature | -30°C ~ +60°C |
| Storage Temperature | -30°C ~ +60°C, 0% ~ 90% RH (no condensation) |
| Packaging | |
| weight | 2KG |
| Box size | 180*140*190MM |
| Outer box size | 570*495*575MM |
| Weight of one box | 25KG |
| Mobile App | Hieasy (iOS / Android) |
Applications

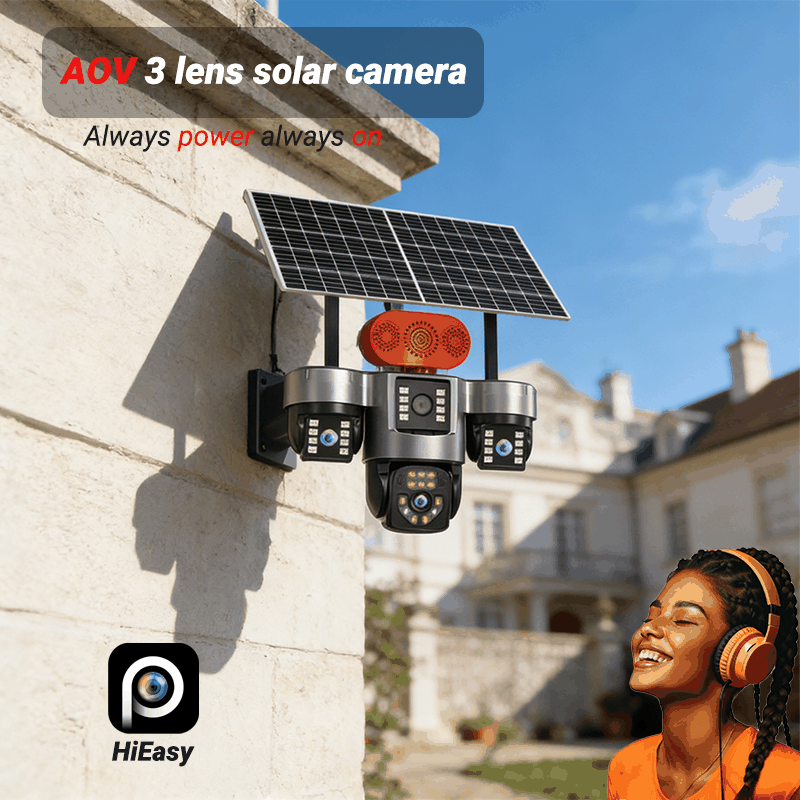

The 110dB siren and strobe interrupt a removal attempt in the first seconds, while three lenses cover the gate, the stacks and the plant compound.
Deploy where the value is stored this week and relocate as the project moves — no conduit, no re-trenching.
Diesel tanks and small plant are the highest-value overnight targets; the siren acts on detection events without waiting for a patrol.
Protect implements and fuel stores between working seasons, with full-color night footage of every approach.
Siren deterrence on the boundary, wide-angle context over the yard, and instant alerts to the phone.
Planning a full deployment? See the scenario guides: construction site security cameras and solar security cameras for farms and ranches.
FAQ
Trial orders start small — talk to us about your volume. Logo printing, custom packaging and firmware defaults are available on OEM terms; we scale with you from first sample to full containers.
Yes — every solar model ships with a Li-ion pack built from replaceable 18650 cells, and every one of them records continuously rather than in clips. Capacity in mAh is stated on the datasheet, and sizing is done against your local worst-week sunlight rather than a spec-sheet average; in low-sun regions we recommend the dual-panel MS4x series for extra harvest margin.
The siren only fires on detection events — not continuously — and the camera drops to low-power standby when idle. Multi-day standby holds even with regular siren firings. The 18650 Li-ion pack is sized for that draw.
We've designed against it: the siren arms only on AI human detection (not animals or vehicles), and you can set active hours, trigger sensitivity and even disable sound while keeping the strobe.
Black-light (or super-starlight) night vision uses a large-aperture low-illumination sensor plus invisible 940nm IR fill. It delivers full-color or near-color footage in near-total darkness without the visible red glow of conventional IR cameras — clearer evidence, zero giveaway.
We manufacture as an OEM and do not hold finished CE or FCC test reports under our own name. What we do instead is support your own local approval: we supply the documents we actually hold, including detailed specifications, label artwork and wiring drawings, plus the battery paperwork your shipment needs. Tell us your destination market and what your authority asks for, and we will confirm in writing which documents ship with the order and which your side has to obtain locally.
Spare parts, firmware updates and warranty handling come from our own factory in Shenzhen. Your customers stay supported — and so does your reputation.
Hieasy (iOS / Android) is the companion app — free to download, with live view, playback, PIR push alerts, two-way talk and multi-user sharing. Pair by scanning the QR code on the camera.
