MSL31 solar street light security camera — integrated LED street lighting
MSL31 solar street light security camera — 6MP across three lenses

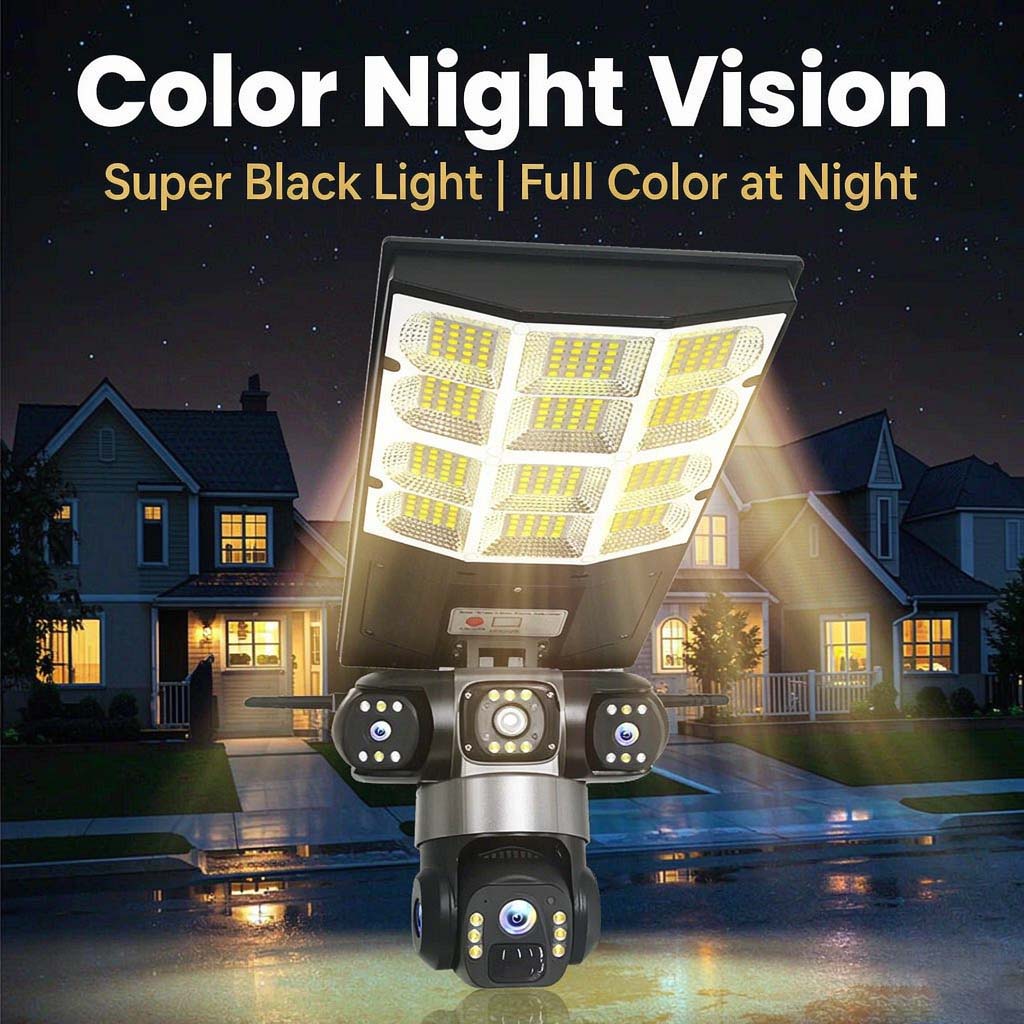

MSL31 solar street light security camera — three simultaneous views

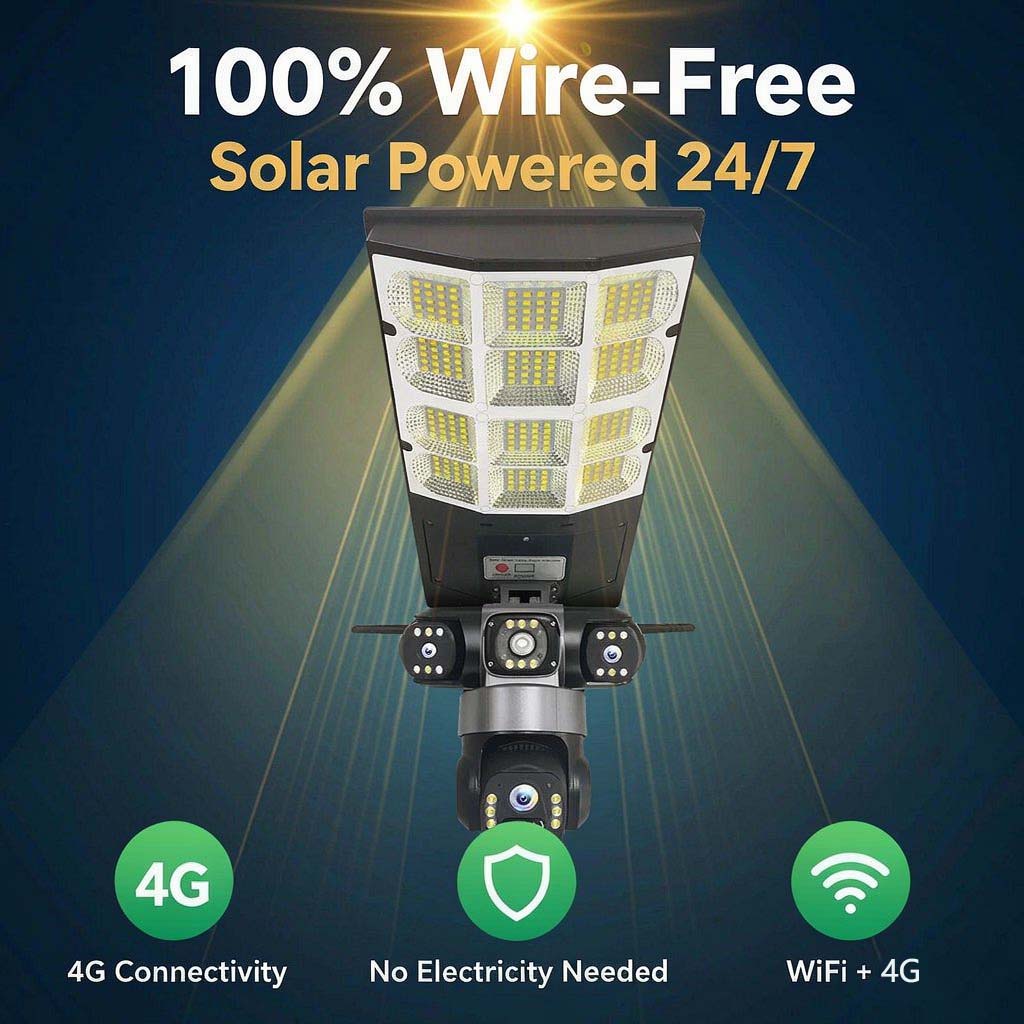

MSL31 solar street light security camera — IP66 weatherproof housing

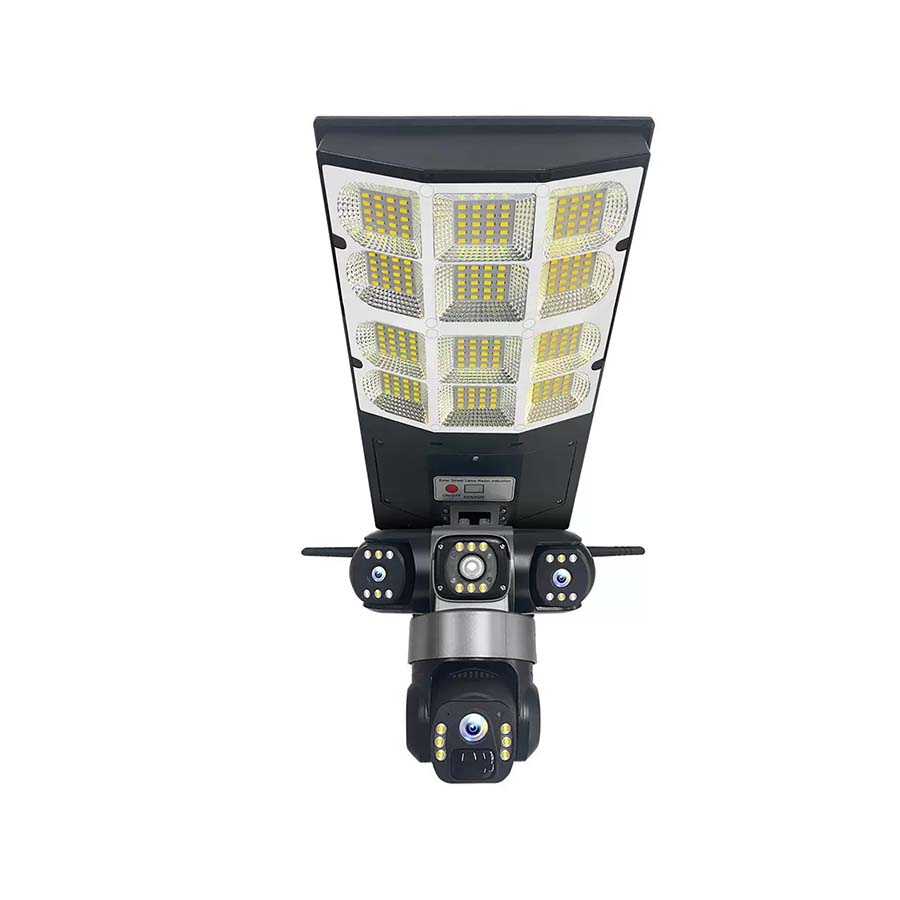

MSL31 solar street light security camera — 4G and WiFi connectivity
Solar Series · Lighting + Security

MSL31 Solar Street Light Camera with PTZ

One pole does it all: bright LED floodlighting after dark, plus three-lens PTZ cameras watching everything the light touches. Dusk-to-dawn auto sensing, motion-boost brightness, dual solar panels — the grid never gets involved, and you never need two separate installs.

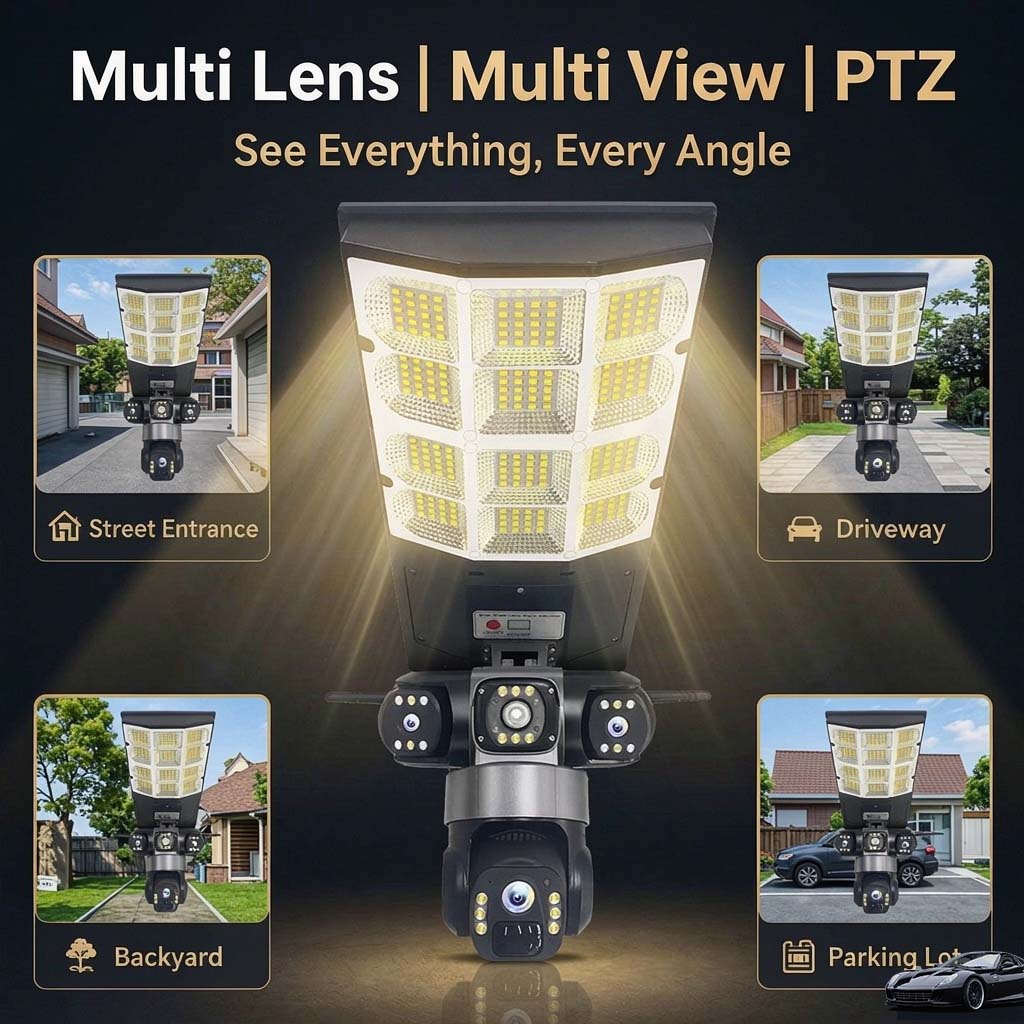

👁️ 3-Lens, 3-Channel Monitoring — simultaneous wide-angle and zoom views for complete, blind-spot-free coverage.
📸 2MP on each of the three lenses — crystal-clear details day and night, ensuring no critical moment is missed.
☀️ Solar-Powered & 4G/WiFi — truly wireless deployment with zero wiring. Perfect for remote or off-grid locations.
🌧️ IP66 Waterproof & Low-Power — withstands rain, dust and extreme weather while running continuously even on cloudy days.
🔊 Two-Way Audio & Remote Access — real-time viewing, instant alerts and direct voice communication via smartphone.
OEM / ODM available Sample orders welcome Factory-direct since 2016

Why This Camera

Why This Camera.

2-in-1

One pole, lighting plus security

This is not just a security camera — it is a 2-in-1 Solar Street Light + Surveillance System. It combines illumination and monitoring in one sleek unit, eliminating the need for separate installations. Whether you are securing a driveway, farm, construction site, or rural property, this camera gives you all-in-one convenience.

Flex

Unmatched flexibility

Works anywhere with sunlight and cellular/WiFi signal — no power outlets or Ethernet cables needed. One device replaces two, saving space, cost and installation time.

Always

Smart, always-on protection

Automatically switches between solar charging and battery backup, ensuring 24/7 uptime. The dusk-to-dawn sensor lights the area automatically, and motion-boost raises brightness when people enter the zone.

Clarity

Professional-grade clarity

Three lenses at 2MP each let you zoom in on plates, faces or small objects without losing detail. Full-color night vision and the LED floodlight work together to deliver usable evidence after dark.

Technical Specifications

The full spec sheet.

General
Product ModelMSL31
4G band optionsEU / Middle East / Africa edition: FDD-LTE B1/B3/B5/B7/B8/B20/B28 · TDD-LTE B38/B40/B41 (standard production). Americas edition: available on custom order, not held in stock — band list confirmed in writing per order.
Network
SIM CardSupported
WiFiVersion available (4G SIM and WiFi are separate versions, specify the destination market at order)
DistributionQR code scanning + SIM card quick link
ProtocolTCP/IP, HTTP, TCP, UDP, SMTP, DHCP, DNS, P2P
Imaging
Image SensorDual 1296P CMOS
Resolution2MP + 2MP + 2MP
Pixels6M Pixels
Video Frame RateH.265 Main: 2304x1296@15fps, Sub: 720x480@15fps
Lighting
LED Street Lamp240pcs high-brightness LED
Detection
Intelligent DetectionPIR + motion + humanoid detection, effective 10m
Night Vision
Night VisionInfrared + warm full-color, app-selectable
Optics
Camera Lens3.6mm x 3, F=2.8, FOV 120°
Power & Solar
BatteryBuilt-in 16000mAh rechargeable
Solar Charging15W continuous solar charging
Type-C ChargingFull charge in ~8 hours
Wake-up Time15s
Audio
Audio CodecAAC / G.726
MicrophoneHigh sensitivity -42dB
IntercomFull-duplex two-way intercom
Environmental
Operating Temp-30°C ~ +60°C
Humidity<=80% RH
Features
StorageTF card up to 256GB + cloud storage
PlaybackEvent list and cloud storage playback
Waterproof RatingIP66
Status LEDBlue & red indicator
Packaging
Package Size468 x 235 x 260mm
Carton Size705 x 470 x 525mm
Packing Quantity6 pcs/carton
Mobile AppV380 Pro (iOS / Android)

Applications

Where light and security meet.

🛣️ Private Roads & Lanes

Light the approach road and capture every vehicle — no mains power along the route.

🅿️ Parking Lots

Pole-mounted lighting that also records: fewer poles, fewer blind spots, better evidence.

🏘️ Residential Communities

Gates and shared driveways get lit and watched with one install — no trenching.

🏪 Shopfronts & Small Business

After-hours deterrence: intruders trigger light, siren and recording together.

🏗️ Remote Sites

Workshops and yards without infrastructure — the unit is the infrastructure.

🌾 Farm Entrances

Lane ends and equipment yards: see who comes and goes, day or night — lit and watched.

Planning a full deployment? See the scenario guides: parking lot camera solutions and solar security cameras for farms and ranches.

FAQ

What buyers usually ask.

What's the MOQ for OEM orders?

Trial orders start small — talk to us about your volume. Logo printing, custom packaging and firmware defaults are available on OEM terms; we scale with you from first sample to full containers.

Does it really work through cloudy weeks or winter?

Yes — every solar model ships with a Li-ion pack built from replaceable 18650 cells, and every one of them records continuously rather than in clips. Capacity in mAh is stated on the datasheet, and sizing is done against your local worst-week sunlight rather than a spec-sheet average; in low-sun regions we recommend the dual-panel MS4x series for extra harvest margin.

How long does the light stay on at night?

The floodlight runs dusk-to-dawn at base brightness, with motion-boost to full brightness when people are detected. Battery sizing is matched to a full night of lighting plus standby monitoring; sustained overcast may reduce brightness, never coverage.

Can the light and camera work independently?

Yes — light schedule and camera settings are configured separately in the app. Some customers run the camera 24/7 and keep the light motion-only for minimal disturbance. Others run both dusk-to-dawn for maximum deterrence.

What is black-light night vision?

Black-light (or super-starlight) night vision uses a large-aperture low-illumination sensor plus invisible 940nm IR fill. It delivers full-color or near-color footage in near-total darkness without the visible red glow of conventional IR cameras — clearer evidence, zero giveaway.

What certifications are available?

We manufacture as an OEM and do not hold finished CE or FCC test reports under our own name. What we do instead is support your own local approval: we supply the documents we actually hold, including detailed specifications, label artwork and wiring drawings, plus the battery paperwork your shipment needs. Tell us your destination market and what your authority asks for, and we will confirm in writing which documents ship with the order and which your side has to obtain locally.

What about after-sales support?

Spare parts, firmware updates and warranty handling come from our own factory in Shenzhen. Your customers stay supported — and so does your reputation.

Which mobile app do the cameras use?

V380 Pro (iOS / Android) is the companion app — free to download, with live view, playback, PIR push alerts, two-way talk and multi-user sharing. Pair by scanning the QR code on the camera.
