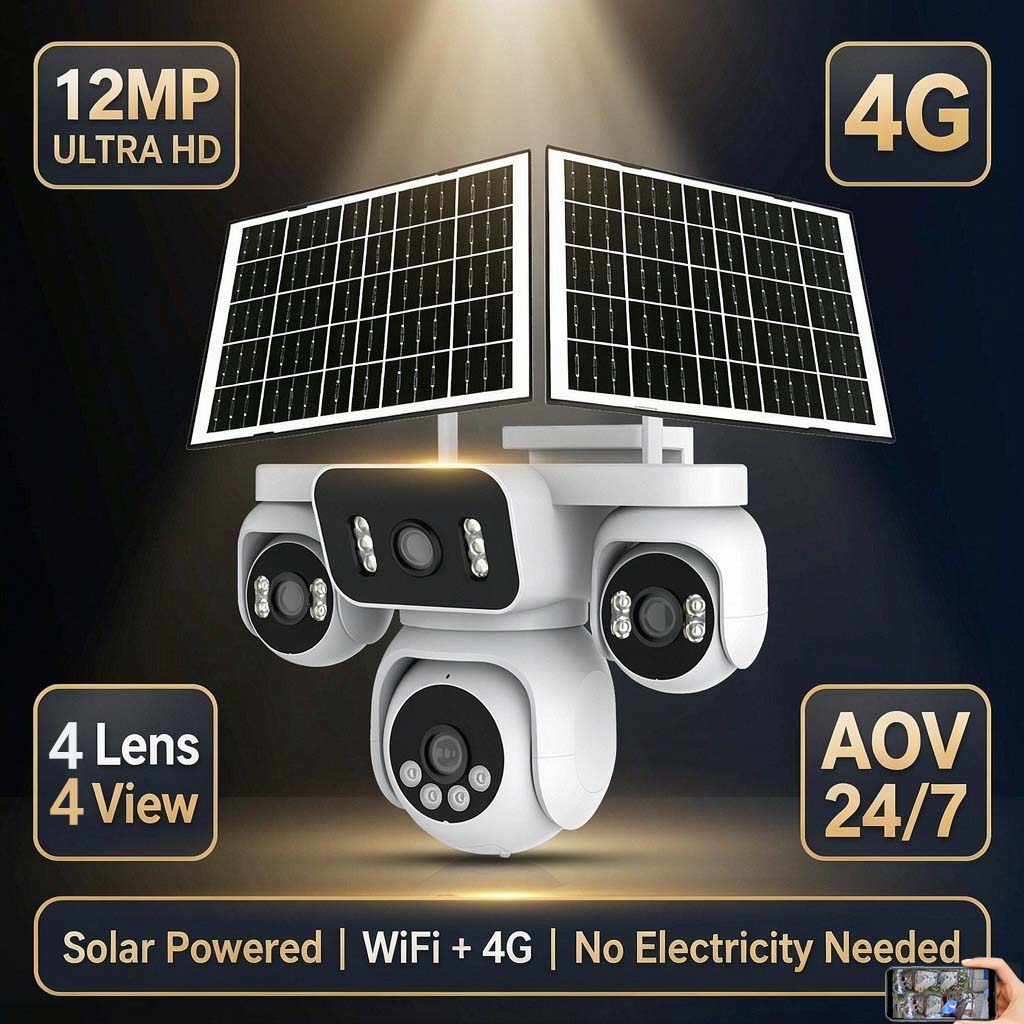

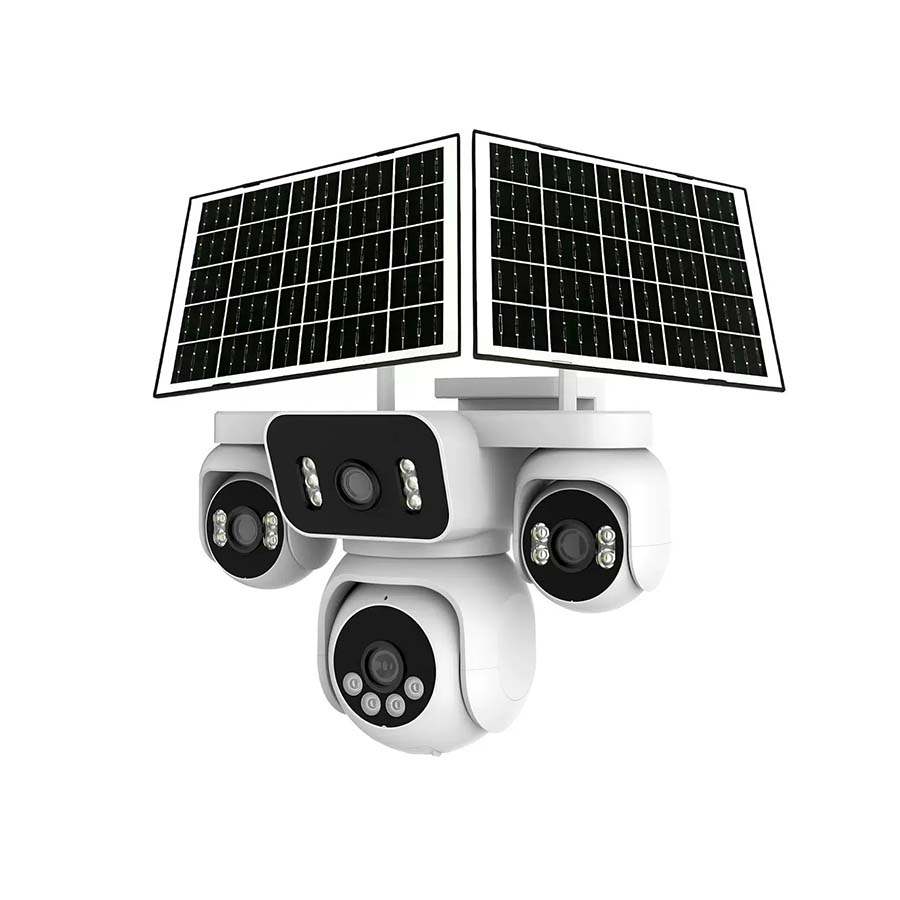

MS43 4-lens solar PTZ security camera — four simultaneous live feeds

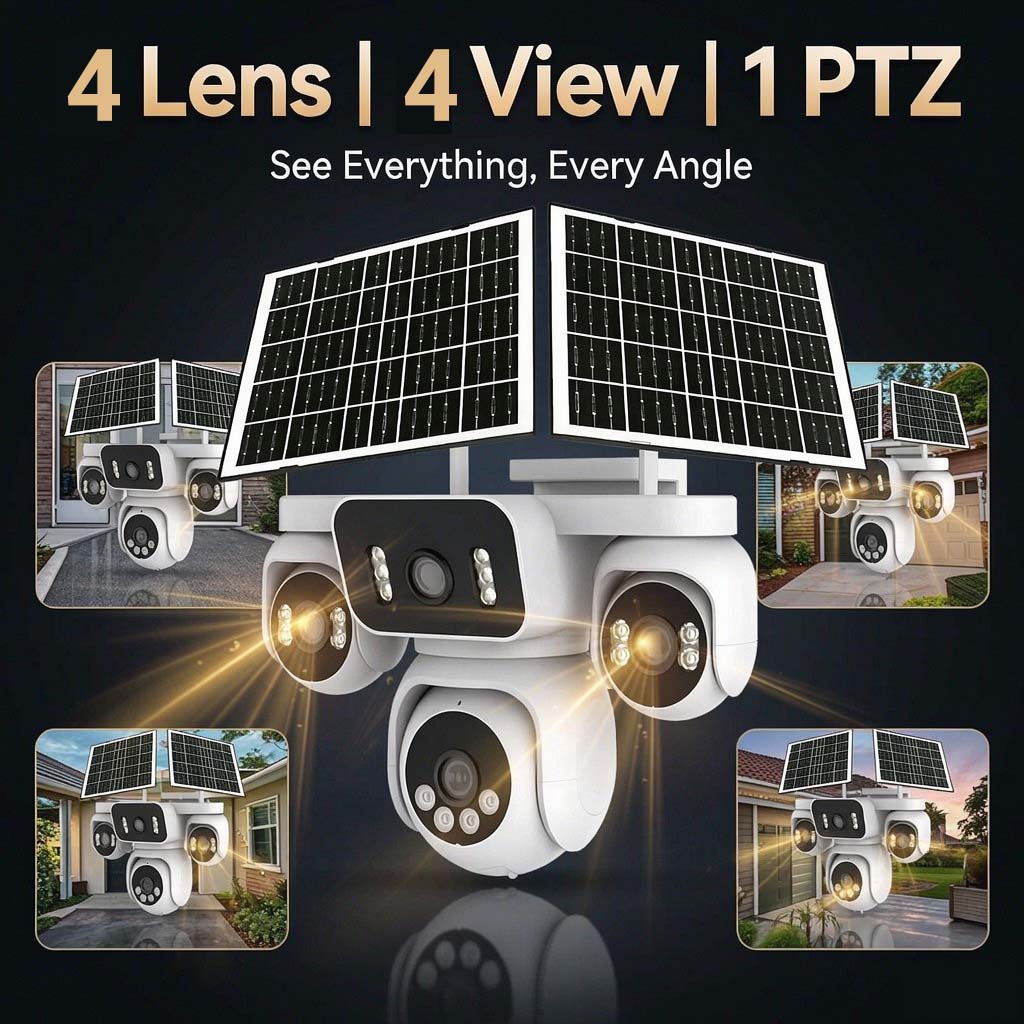

MS43 4-lens solar PTZ security camera — dual solar panels

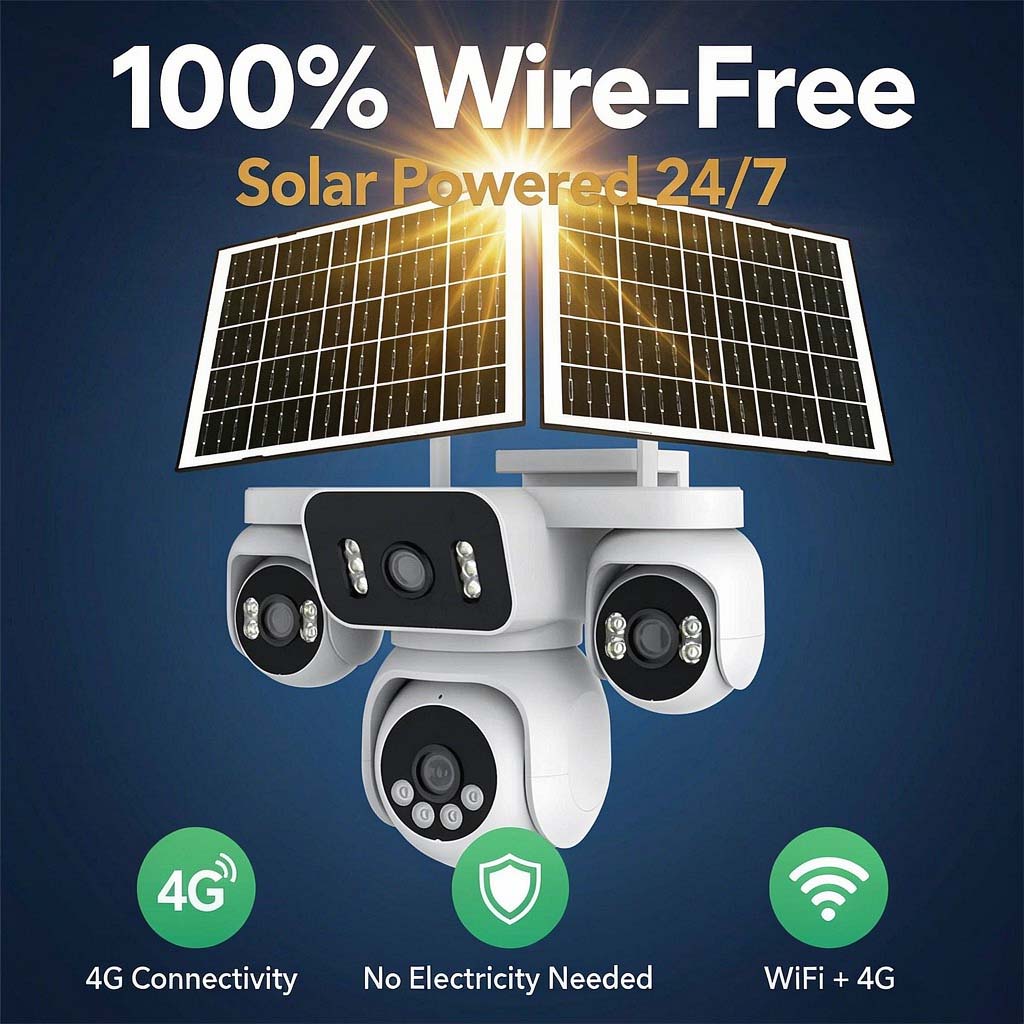

MS43 4-lens solar PTZ security camera — 360-degree PTZ control
MS43 4-lens solar PTZ security camera — AOV always-on video

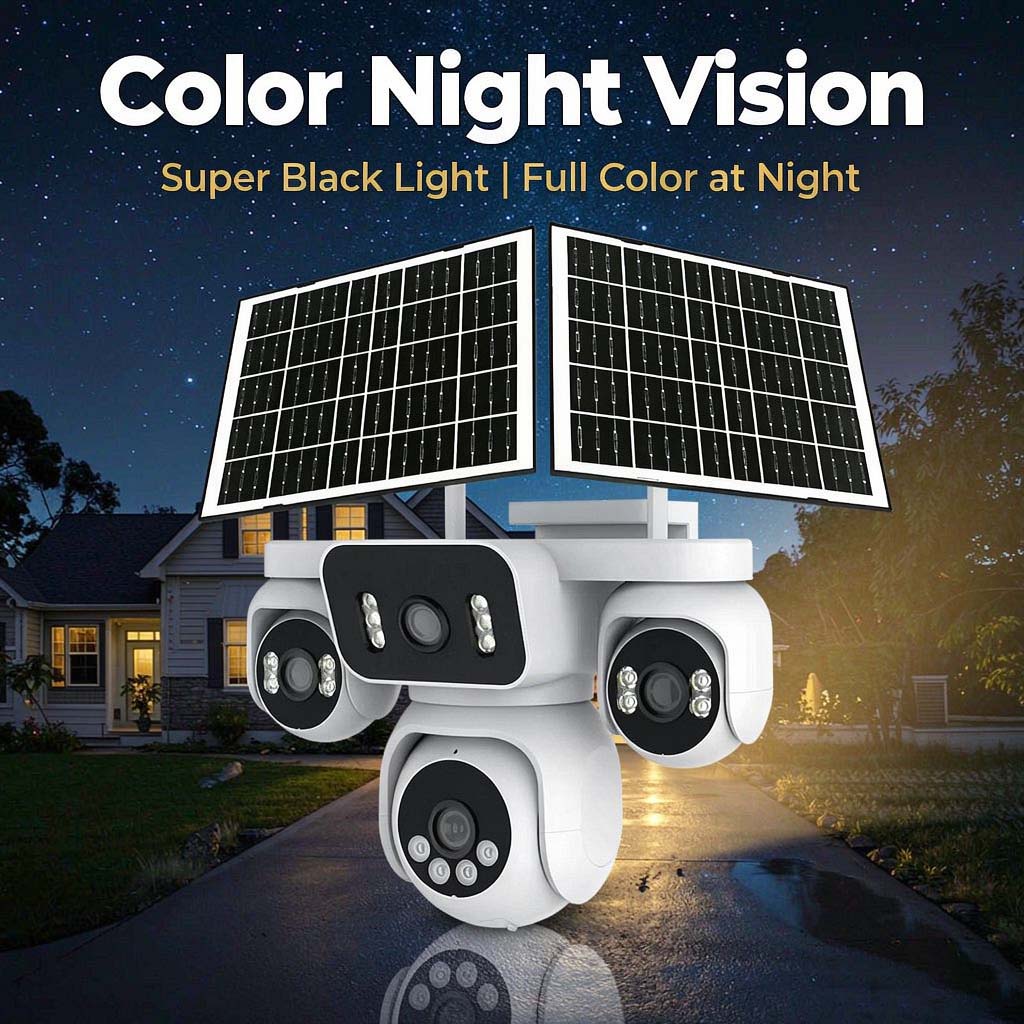

MS43 4-lens solar PTZ security camera — full-color night vision
Solar Series · Premium White

MS43 4-Lens White Solar Camera with Dual Panels

Featuring a futuristic, robot-inspired design, this innovative AOV (Always-On Video) camera combines striking aesthetics with cutting-edge surveillance technology. Equipped with a four-lens system that simultaneously displays four distinct video feeds, providing expansive, multi-angle coverage and eliminating blind spots. Powered by a dual solar panel configuration for uninterrupted 24/7 operation.

🤖 Robot-Inspired Design — futuristic AOV camera with striking aesthetics and high-visibility deterrence.
👁️ 4-Lens / 4 Feeds — four simultaneous live video feeds, expansive multi-angle coverage, zero blind spots.
☀️ Dual Solar Panels — maximizes energy harvesting, significantly extends battery life for 24/7 off-grid operation.
📡 4G Connectivity & AI — remote monitoring anywhere, smart human detection, real-time alert push.
OEM / ODM available Sample orders welcome Factory-direct since 2016

Why This Camera

Why This Camera.

Off-Grid

Engineered for places the grid cannot reach

The 4G solar-powered low-power outdoor camera is engineered for environments where traditional power and network infrastructure are unavailable or impractical. Its integrated solar panel and high-capacity battery ensure continuous operation without wiring, making it ideal for remote or temporary installations.

Quad

4-lens + PTZ control

The camera features a 4-lens system with PTZ functionality, allowing users to remotely adjust the viewing angle and zoom in on specific areas via mobile app. Four lenses deliver the most comprehensive coverage in the catalog — four distinct views simultaneously, no blind spots, no need for multiple devices.

Deter

PIR detection + visual deterrence

Equipped with PIR motion detection and alert lights, it actively deters intruders by triggering visual alarms and sending real-time notifications to your smartphone. The IP66 waterproof rating ensures reliable performance in rain, dust and extreme temperatures.

Engage

Two-way audio, active engagement

Its low-power design extends battery life during cloudy periods. Two-way audio enables live communication, turning passive monitoring into active engagement — talk to visitors, warn intruders, or check in on staff from anywhere.

Technical Specifications

The full spec sheet.

Imaging
Image Sensor1/3" color CMOS Sensor
Resolution2MP + 2MP + 2MP + 2MP
Effective Pixels1920(H)*2160(V)
CompressionH.264/H.265
Electronic Shutter TimeAuto(1/1.5s~1/30000s)
Minimun Illumination0.01 Lux
S/N Ratio46dB
Scanning SystemProgressive
Video OutputWireless network
Reset ButtonYES
PTZ
Horizontal Rotation Range0~355°
Tilt Rotation Range0~90°
Guard PointsNO
Optics
Focus Length4mm+4mm+4mm+4mm
Focus ControlFixed
Lens TypeFixed
Pixels8M Pixels
Night Vision
Infrared LED24PCS Infrared light +24PCS White light
Infrared Distance10M
IR StatusAGC auto control
IR Power OnAuto Control
Connectivity
RJ45NO
ProtocolTCP/IP, UDP/IP, DHCP, MQTT, P2P
ONVIFNO
P2PSupport
4G band optionsEU / Middle East / Africa edition: FDD-LTE B1/B3/B5/B7/B8/B20/B28 · TDD-LTE B38/B40/B41 (standard production). Americas edition: available on custom order, not held in stock — band list confirmed in writing per order.
WIFIVersion available (4G SIM and WiFi are separate versions, specify the destination market at order)
Main Stream1920×2160@15fps
Sub Stream640*720@15fps
Smart Phonesupport
Image & Smart Features
Day/NightColor/ B&W (IR-CUT )
Image ConfigYES
BLCSupport
3DNRSupport
WDRYES
Motion DetectionSupport
Privacy MaskingYES
Recording ModeSDcard
LanguageSimplified Chinese, English, Japanese, German, Russian, French, Italian, Spanish
Audio & Storage
Audio2-Way Audio (MIC and Speaker)
AlarmMotion Detection, PIR human body infrared detection
SD Card SlotSupport Max 256G
Build & Power
Housingplastic,IP66
BracketSupport
IR Cut FilterYES
PowerDC 5V/1.5A or 7.5W+7.5W solar panel Battery(16000mAh)
Operation Temperature-30°C ~ +60°C
Storage Temperature-30°C ~ +60°C, 0% ~ 90% RH (no condensation)
Packaging
weight2.5KG
Box size262*215*195mm
Outer box size595*490*530MM
Weight of one box29KG(12PCS)
Mobile AppHieasy (iOS / Android)

Applications

Where this camera wins.

🧱 Perimeter & Fence Lines

Watch the boundary corner, the rear approach and the gate together — the positions where intrusions actually happen.

🏗️ Construction & Civil Works

Relocate the unit as the fence line moves. 4G backhaul means no cable follows the boundary.

🏞️ Rural Boundaries & Farmland

Cover long fence runs with one elevated unit, PIR alerts tuned to human shapes, not wildlife.

🏘️ Community & Estate Perimeters

Rear boundaries and unlit sides get their own dedicated lens instead of sharing the gate camera’s attention.

⚡ Infrastructure & Utilities

Pumping stations, substations and tower compounds where the boundary is the first line to verify.

Planning a full deployment? See the scenario guides: perimeter security cameras and off-grid and remote site cameras.

Sizing & setup

What to decide before you order the MS43.

Panel direction decides the harvest

Aim both panels toward the equator-facing sky — south in the northern hemisphere, north in the southern — and keep them clear of eave shadow. The twin 7.5W input only delivers into the 16000 mAh pack when the panels get a clean view of midday sun; a shaded wall quietly halves that.

Mount height changes what the PIR catches

Three to four metres puts the unit out of reach while keeping the PIR cone on the approach path. Go much higher and you film the tops of heads; go lower and the detection zone shortens exactly where you want the earliest warning.

Night reach is 10 m — plan to that number

Infrared is specified at 10 m and that is the figure to design around. One MS43 covers the four directions of a single point; a perimeter longer than that reach needs more units, not higher sensitivity.

Rated −20 °C to +60 °C

Plastic housing, rated −20 °C to +60 °C at 10–80% humidity. For Gulf and desert sites that bake past that in direct sun, tell us the conditions up front — placement and shading usually solve it before any custom hardware is needed.

Which model

MS43, MS31 or MSL31?

Covering one junction or compound corner

This model. Four fixed 4 mm lenses plus PTZ replace what normally takes three or four single-lens units — gate, rear approach, flank and the long run, live on one screen.

Covering a long boundary at lower cost per point

MS31 carries three lenses and runs on the V380 Pro app, which many installers already use across other lines. Lower unit cost where each point needs fewer views. See the full spec sheet.

You were installing lighting there anyway

MSL31 puts the cameras inside a solar street-light pole — one foundation, one crew, one maintenance visit instead of two. See the full spec sheet.

Ordering & shipping

Terms that decide the deal.

Samples and trial orders

Evaluation samples ship as 1–2 units so you can test on a real site. Trial orders up to 100 units carry their own price tier, and the sample charge is credited against your first bulk order rather than refunded in cash — first bulk orders start at 300 units.

Lead time

Standard-configuration orders ship in 7–14 days. OEM branding — logo, carton artwork and firmware defaults — adds time and is quoted against the specific job instead of assumed.

Payment and trade terms

Standard terms are T/T with 50% deposit and 50% before shipment. We quote FOB Shenzhen, or CIF to your port. Delivered-duty-paid is not something we sell — the customs entry stays in your name.

Warranty and spares

Twelve months, handled direct from our own factory in Shenzhen — spare parts, firmware updates and RMA replacements come from the people who built the unit.

Packing and freight

Ships in master cartons of 12 units, carton footprint 595*490*530MM, 29KG gross per carton. Give us your port and we will quote freight on CIF terms, or hand over on FOB Shenzhen if you run your own forwarder.

FAQ

What buyers usually ask.

What's the MOQ for OEM orders?

Trial orders start small — talk to us about your volume. Logo printing, custom packaging and firmware defaults are available on OEM terms; we scale with you from first sample to full containers.

Does it really work through cloudy weeks or winter?

Yes — every solar model ships with a Li-ion pack built from replaceable 18650 cells, and every one of them records continuously rather than in clips. Capacity in mAh is stated on the datasheet, and sizing is done against your local worst-week sunlight rather than a spec-sheet average; in low-sun regions we recommend the dual-panel MS4x series for extra harvest margin.

Is white available on the dual-panel line?

Yes — MS43 is our dedicated white-finish dual-panel premium model. MS23 is the white single-panel dual-lens. For other SKUs in white, talk to us about OEM color runs; minimums apply.

What is black-light night vision?

Black-light (or super-starlight) night vision uses a large-aperture low-illumination sensor plus invisible 940nm IR fill. It delivers full-color or near-color footage in near-total darkness without the visible red glow of conventional IR cameras — clearer evidence, zero giveaway.

What certifications are available?

We manufacture as an OEM and do not hold finished CE or FCC test reports under our own name. What we do instead is support your own local approval: we supply the documents we actually hold, including detailed specifications, label artwork and wiring drawings, plus the battery paperwork your shipment needs. Tell us your destination market and what your authority asks for, and we will confirm in writing which documents ship with the order and which your side has to obtain locally.

What about after-sales support?

Spare parts, firmware updates and warranty handling come from our own factory in Shenzhen. Your customers stay supported — and so does your reputation.

Which mobile app do the cameras use?

Hieasy (iOS / Android) is the companion app — free to download, with live view, playback, PIR push alerts, two-way talk and multi-user sharing. Pair by scanning the QR code on the camera.

Does it support ONVIF or third-party NVRs?

No — there is no ONVIF support and no RJ45 port on this model. It records to the SD card and streams to the Hieasy app over P2P. If you intend to pull video into an existing NVR or VMS, tell us before ordering so we can point you to the right model instead of a disappointment at install.

How much footage does a card hold?

Retention depends on the recorded resolution and frame rate, and on whether the unit records continuously or on motion events. The slot accepts up to 256 GB. Give us your retention target — three days, a week, longer — and we will size the card with you and ship it fitted.

WiFi or 4G — do I have to choose?

Yes, they are separate versions: pick one and specify the destination market when you order. We match the network module to the carriers in that market, and the exact band plan is confirmed per order rather than copied off a generic spec sheet.

What are the payment and delivery terms on the MS43?

Deposit and balance by T/T — 50% to start and 50% before shipment — quoted FOB Shenzhen or CIF to your port. Standard configurations ship in 7–14 days; OEM branding adds time and is quoted per job. Delivered-duty-paid terms are not offered.
