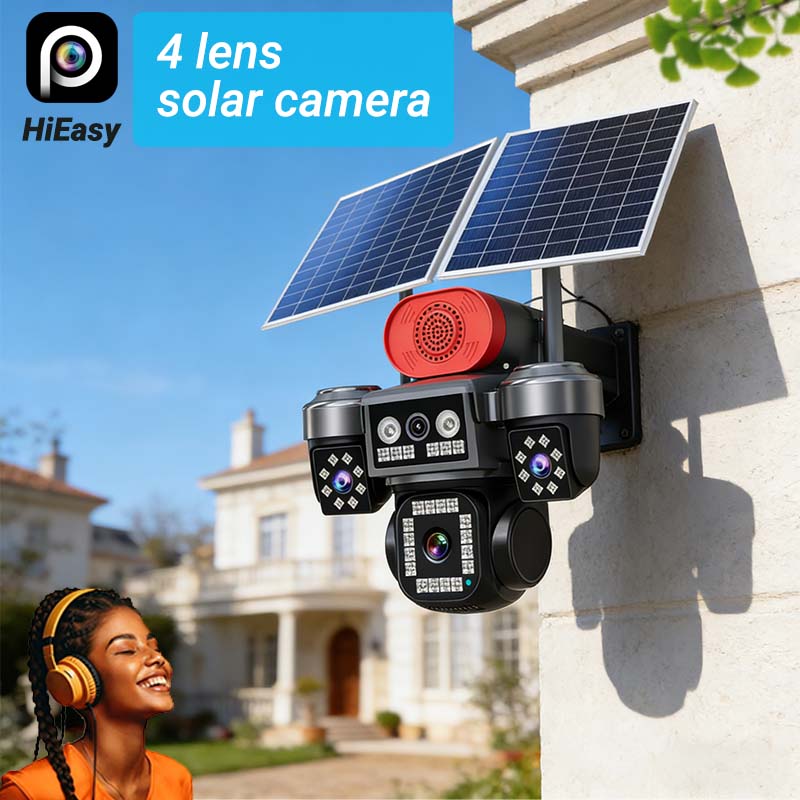

MS42 4-lens solar security camera — dual solar panels

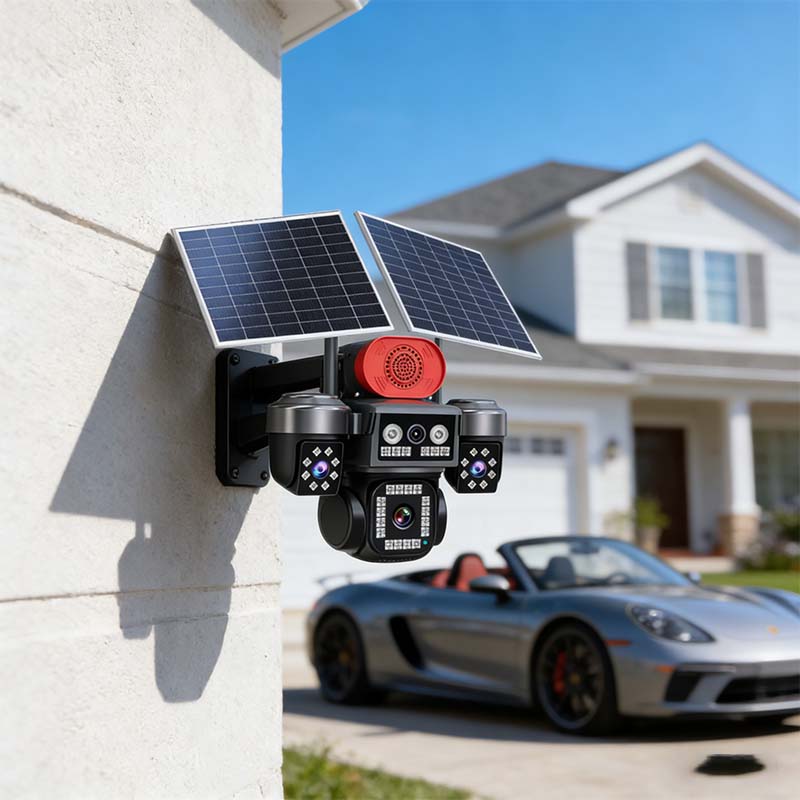

MS42 4-lens solar security camera — 110dB siren deterrence
MS42 4-lens solar security camera — four simultaneous live feeds

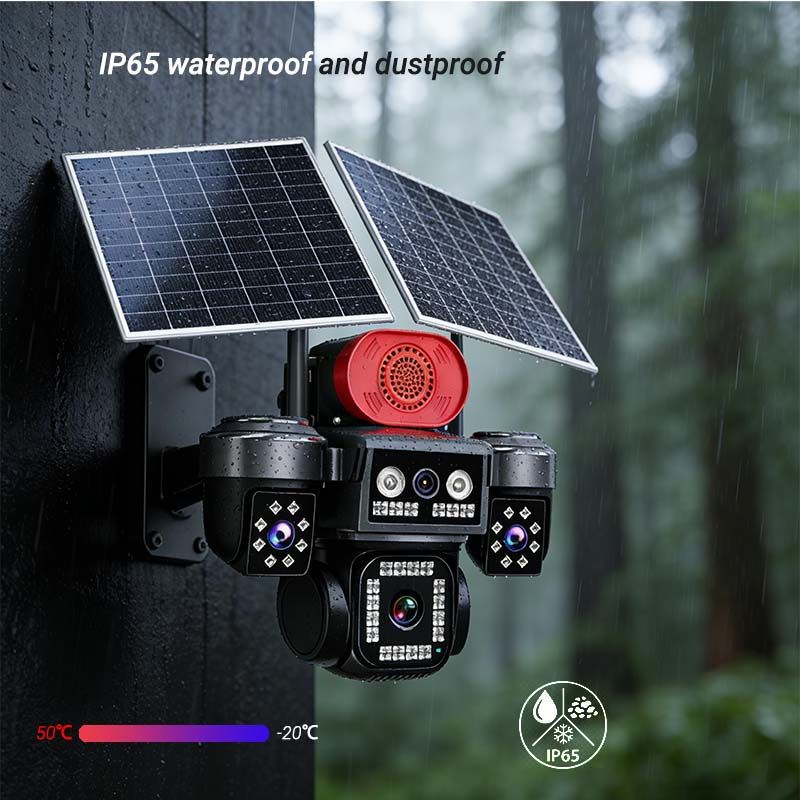

MS42 4-lens solar security camera — AOV always-on video

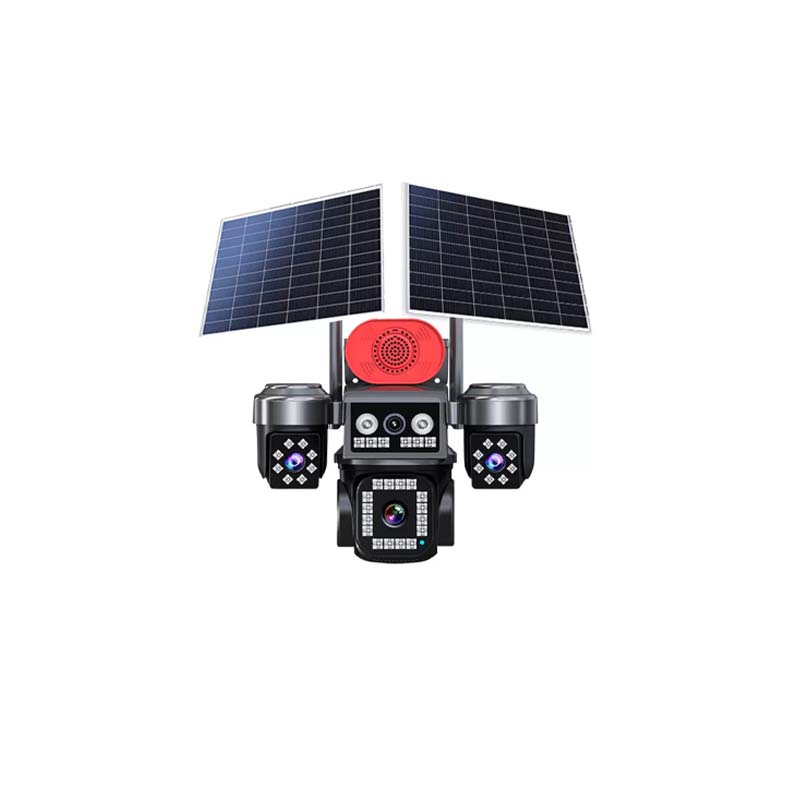

MS42 4-lens solar security camera — 360-degree PTZ control
Solar Series · Premium Deterrence

MS42 4-Lens Solar Security Camera with Siren

Featuring a futuristic, robot-inspired design, this innovative AOV (Always-On Video) camera combines striking aesthetics with cutting-edge surveillance technology. Equipped with a four-lens system that simultaneously displays four distinct video feeds, providing expansive, multi-angle coverage and eliminating blind spots. Powered by a dual solar panel configuration for uninterrupted 24/7 operation.

🤖 Robot-Inspired Design — futuristic AOV camera with striking aesthetics and high-visibility deterrence.
👁️ 4-Lens / 4 Feeds — four simultaneous live video feeds, expansive multi-angle coverage, zero blind spots.
☀️ Dual Solar Panels — maximizes energy harvesting, significantly extends battery life for 24/7 off-grid operation.
📡 4G Connectivity & AI — remote monitoring anywhere, smart human detection, real-time alert push.
OEM / ODM available Sample orders welcome Factory-direct since 2016

Why This Camera

Why This Camera.

Off-Grid

Engineered for places the grid cannot reach

The 4G solar-powered low-power outdoor camera is engineered for environments where traditional power and network infrastructure are unavailable or impractical. Its integrated solar panel and high-capacity battery ensure continuous operation without wiring, making it ideal for remote or temporary installations.

Quad

4-lens + PTZ control

The camera features a 4-lens system with PTZ functionality, allowing users to remotely adjust the viewing angle and zoom in on specific areas via mobile app. Four lenses deliver the most comprehensive coverage in the catalog — four distinct views simultaneously, no blind spots, no need for multiple devices.

Deter

PIR detection + visual deterrence

Equipped with PIR motion detection and alert lights, it actively deters intruders by triggering visual alarms and sending real-time notifications to your smartphone. The IP66 waterproof rating ensures reliable performance in rain, dust and extreme temperatures.

Engage

Two-way audio, active engagement

Its low-power design extends battery life during cloudy periods. Two-way audio enables live communication, turning passive monitoring into active engagement — talk to visitors, warn intruders, or check in on staff from anywhere.

Technical Specifications

The full spec sheet.

Imaging
Image Sensor1/3" color CMOS Sensor
Resolution2MP + 2MP + 2MP + 2MP
Effective Pixels2960(H)*1665(V)
CompressionH.264/H.265
Electronic Shutter TimeAuto(1/1.5s~1/30000s)
Minimun Illumination0.01 Lux
S/N Ratio46dB
Scanning SystemProgressive
Video OutputWireless network
Reset ButtonYES
PTZ
Horizontal Rotation Range0~355°
Tilt Rotation Range0~90°
Guard PointsNO
Optics
Focus Length3.6MM+3.6MM+3.6MM+3.6MM
Focus ControlFixed
Lens TypeFixed
Pixels8M Pixels
Night Vision
Infrared LED40PCS Infrared light +40PCS White light
Infrared Distance10M
IR StatusAGC auto control
IR Power OnAuto Control
Connectivity
RJ45NO
ProtocolTCP/IP, UDP/IP, DHCP, MQTT, P2P
ONVIFNO
P2PSupport
4G band optionsEU / Middle East / Africa edition: FDD-LTE B1/B3/B5/B7/B8/B20/B28 · TDD-LTE B38/B40/B41 (standard production). Americas edition: available on custom order, not held in stock — band list confirmed in writing per order.
WIFIVersion available (4G SIM and WiFi are separate versions, specify the destination market at order)
Main Stream2960*1665@15fps
Sub Stream640*720@15fps
Smart Phonesupport
Image & Smart Features
Day/NightColor/ B&W (IR-CUT )
Image ConfigYES
BLCSupport
3DNRSupport
WDRYES
Motion DetectionSupport
Privacy MaskingYES
Recording ModeSDcard
LanguageSimplified Chinese, English, Japanese, German, Russian, French, Italian, Spanish
Audio & Storage
Audio2-Way Audio (MIC and Speaker)
AlarmMotion Detection, PIR human body infrared detection
SD Card SlotSupport Max 256GB
Build & Power
Housingplastic,IP66
BracketSupport
IR Cut FilterYES
PowerDC 5V/1.5A or 7.5W+7.5W solar panel Battery(16000mAh)
Operation Temperature-30°C ~ +60°C
Storage Temperature-30°C ~ +60°C, 0% ~ 90% RH (no condensation)
Packaging
weight2.3KG
Box size180*140*190MM
Outer box size570*495*575MM
Weight of one box29KG
Mobile AppHieasy (iOS / Android)

Applications

Where this camera wins.

🏭 Warehouses & Loading Docks

Four feeds for the dock doors, staging lane, yard and gate — the four points where goods actually move.

📦 Shipping & Despatch Evidence

Timestamped colour footage of pallets and container loading settles count and condition disputes before they start.

🚚 Fleet & Transport Yards

Record vehicle identity at the gate while watching the yard — one unit replacing several fixed cameras.

🔨 Manufacturing Plants

Cover the goods-in bay, the compound and the staff exit together, with alerts routed to the shift supervisor’s phone.

🌾 Large Agricultural Compounds

Dual-panel autonomy plus four-lens coverage for the estate yard, stores and access roads.

Planning a full deployment? See the scenario guides: warehouse and loading dock cameras and perimeter security cameras.

Sizing & setup

Planning a four-stream solar unit.

The widest single mount in the solar line

Four 3.6 mm lenses record four views at once, so one column carries what otherwise takes two cameras and two mounts. On corners, compounds and yards it usually lowers total installed cost even though the unit itself costs more.

A heavier body needs a real fixing

At 2.3 kg with two panels catching wind, mount to masonry, a pole or a solid soffit beam. Thin cladding and fence panels vibrate, and a vibrating camera produces motion alerts you will learn to ignore.

Put the white lights and siren on a schedule

Forty infrared plus forty white LEDs and an audible warning make this the loudest unit we build — effective on a break-in, unwelcome at 2 a.m. beside a neighbour bedroom. Set the trigger window before handover.

Rated −20 °C to +60 °C

Plastic housing at 10–80% humidity, panel hardware and cabling included. Hot, unshaded coastal sites are worth mentioning when you order so we can talk through placement.

Which model

MS42, MS45, MS43 or MS31?

The site sits in a weak signal area

MS45 runs the same four-lens format on external antennas with dual panels — the pick for the far fence line where a phone barely holds a bar. See the full spec sheet.

You want four views with a pan-tilt head

MS43 pairs its fourth lens with PTZ 360° coverage on a 16000 mAh pack, so one head can dwell on whatever triggered it. See the full spec sheet.

Budget matters more than view count

MS31 gives three lenses instead of four at a lower unit cost, and it runs the V380 Pro app many installers already use elsewhere. See the full spec sheet.

Ordering & shipping

Terms that decide the deal.

Samples and trial orders

Evaluation samples ship as 1–2 units so you can test on a real site. Trial orders up to 100 units carry their own price tier, and the sample charge is credited against your first bulk order rather than refunded in cash — first bulk orders start at 300 units.

Lead time

Standard-configuration orders ship in 7–14 days. OEM branding — logo, carton artwork and firmware defaults — adds time and is quoted against the specific job instead of assumed.

Payment and trade terms

Standard terms are T/T with 50% deposit and 50% before shipment. We quote FOB Shenzhen, or CIF to your port. Delivered-duty-paid is not something we sell — the customs entry stays in your name.

Warranty and spares

Twelve months, handled direct from our own factory in Shenzhen — spare parts, firmware updates and RMA replacements come from the people who built the unit.

FAQ

What buyers usually ask.

What's the MOQ for OEM orders?

Trial orders start small — talk to us about your volume. Logo printing, custom packaging and firmware defaults are available on OEM terms; we scale with you from first sample to full containers.

Does it really work through cloudy weeks or winter?

Yes — every solar model ships with a Li-ion pack built from replaceable 18650 cells, and every one of them records continuously rather than in clips. Capacity in mAh is stated on the datasheet, and sizing is done against your local worst-week sunlight rather than a spec-sheet average; in low-sun regions we recommend the dual-panel MS4x series for extra harvest margin.

Will the siren drain the battery fast?

The siren only fires on detection events — not continuously — and the camera drops to low-power standby when idle. The dual panels provide extra harvest margin for this duty cycle. Multi-day standby holds even with regular siren firings.

What is black-light night vision?

Black-light (or super-starlight) night vision uses a large-aperture low-illumination sensor plus invisible 940nm IR fill. It delivers full-color or near-color footage in near-total darkness without the visible red glow of conventional IR cameras — clearer evidence, zero giveaway.

What certifications are available?

We manufacture as an OEM and do not hold finished CE or FCC test reports under our own name. What we do instead is support your own local approval: we supply the documents we actually hold, including detailed specifications, label artwork and wiring drawings, plus the battery paperwork your shipment needs. Tell us your destination market and what your authority asks for, and we will confirm in writing which documents ship with the order and which your side has to obtain locally.

What about after-sales support?

Spare parts, firmware updates and warranty handling come from our own factory in Shenzhen. Your customers stay supported — and so does your reputation.

Which mobile app do the cameras use?

Hieasy (iOS / Android) is the companion app — free to download, with live view, playback, PIR push alerts, two-way talk and multi-user sharing. Pair by scanning the QR code on the camera.

Four streams at once — what does that do to power and storage?

It is why this model carries twin 7.5W panels and a 16000 mAh pack, the largest in the solar line, plus a slot up to 256 GB. Recording on motion events rather than continuously keeps the charge budget comfortable; tell us how many events a day you expect and we will size both together.

Does the siren record too, or only sound?

It sounds and it keeps recording — the event is captured either way. What is worth deciding before handover is the trigger window and how long it runs, because an alarm that fires on every delivery van gets switched off within a week.

Will I need two apps if I already run other models?

This one runs Hieasy. Models in the V380 Pro family — MS31, MS32, MS41, MO31, MO32 and MSL31 among them — sit in a different app. If keeping one app across a whole fleet matters to you, say so when you enquire and we will keep you inside one family.

What are the payment and delivery terms on the MS42?

Deposit and balance by T/T — 50% to start and 50% before shipment — quoted FOB Shenzhen or CIF to your port. Standard configurations ship in 7–14 days; OEM branding adds time and is quoted per job. Delivered-duty-paid terms are not offered.
