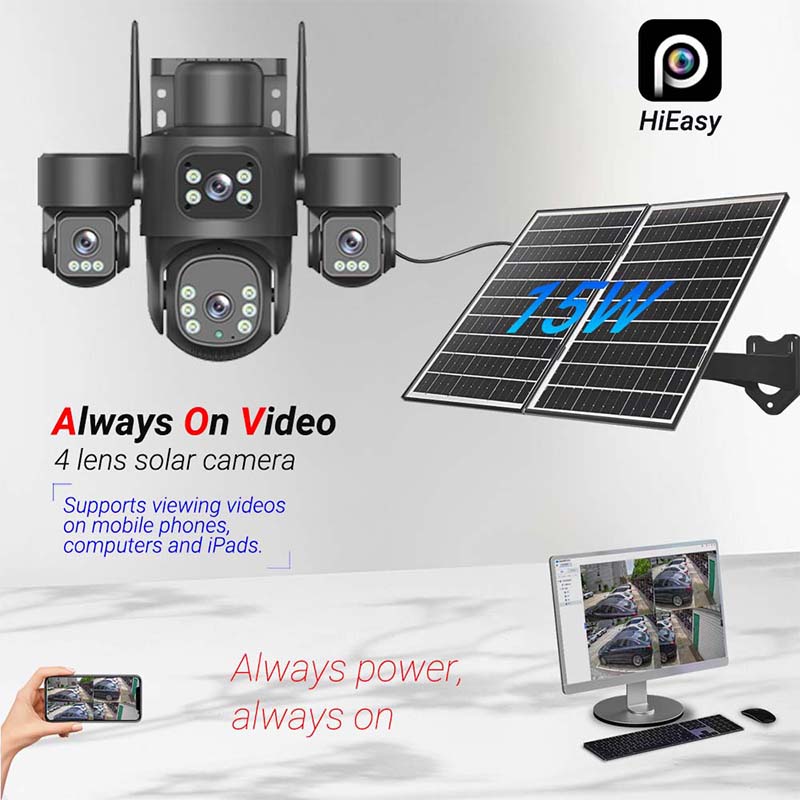

MS45 4-lens solar PTZ camera — external 4G antennas for weak signal

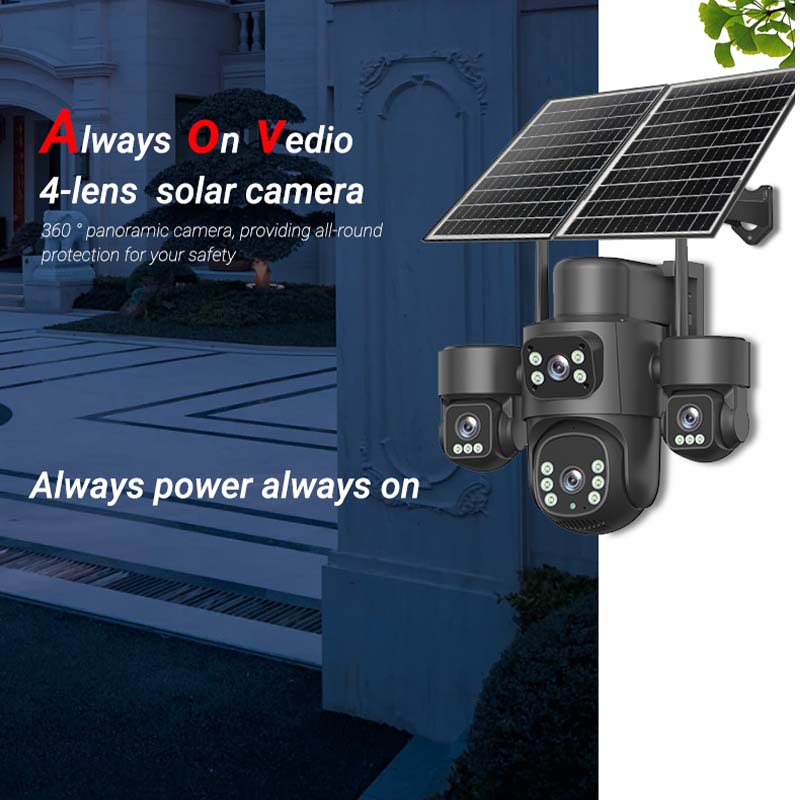

MS45 4-lens solar PTZ camera — dual solar panels
MS45 4-lens solar PTZ camera — four simultaneous live feeds
MS45 4-lens solar PTZ camera — 360-degree PTZ control

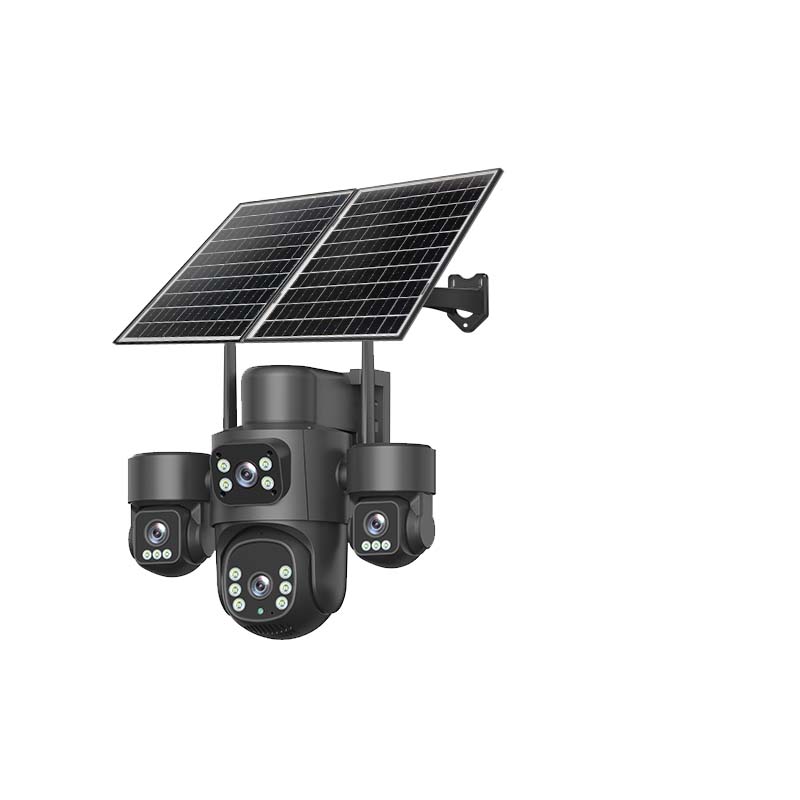

MS45 4-lens solar PTZ camera — full-color night vision
Solar Series · Premium PTZ

MS45 4-Lens Solar PTZ Camera with 4G Antennas

Featuring a futuristic, robot-inspired design, this innovative AOV (Always-On Video) camera combines striking aesthetics with cutting-edge surveillance technology. Equipped with a four-lens system that simultaneously displays four distinct video feeds, providing expansive, multi-angle coverage and eliminating blind spots. Powered by a dual solar panel configuration for uninterrupted 24/7 operation.

🤖 Robot-Inspired Design — futuristic AOV camera with striking aesthetics and high-visibility deterrence.
👁️ 4-Lens / 4 Feeds — four simultaneous live video feeds, expansive multi-angle coverage, zero blind spots.
☀️ Dual Solar Panels — maximizes energy harvesting, significantly extends battery life for 24/7 off-grid operation.
📡 4G Connectivity & AI — remote monitoring anywhere, smart human detection, real-time alert push.
OEM / ODM available Sample orders welcome Factory-direct since 2016

Why This Camera

Why This Camera.

Off-Grid

Engineered for places the grid cannot reach

The 4G solar-powered low-power outdoor camera is engineered for environments where traditional power and network infrastructure are unavailable or impractical. Its integrated solar panel and high-capacity battery ensure continuous operation without wiring, making it ideal for remote or temporary installations.

Quad

4-lens + PTZ control

The camera features a 4-lens system with PTZ functionality, allowing users to remotely adjust the viewing angle and zoom in on specific areas via mobile app. Four lenses deliver the most comprehensive coverage in the catalog — four distinct views simultaneously, no blind spots, no need for multiple devices.

Deter

PIR detection + visual deterrence

Equipped with PIR motion detection and alert lights, it actively deters intruders by triggering visual alarms and sending real-time notifications to your smartphone. The IP66 waterproof rating ensures reliable performance in rain, dust and extreme temperatures.

Engage

Two-way audio, active engagement

Its low-power design extends battery life during cloudy periods. Two-way audio enables live communication, turning passive monitoring into active engagement — talk to visitors, warn intruders, or check in on staff from anywhere.

Technical Specifications

The full spec sheet.

Imaging
Image Sensor1/3" color CMOS Sensor
Resolution2+2+2+2MP
Effective Pixels1920(H)*2160(V)
CompressionH.264/H.265
Electronic Shutter TimeAuto(1/1.5s~1/30000s)
Minimun Illumination0.01 Lux
S/N Ratio46dB
Scanning SystemProgressive
Video OutputWireless network
Reset ButtonYES
PTZ
Horizontal Rotation Range0~355°
Tilt Rotation Range0~90°
Guard PointsNO
Optics
Focus Length4mm+4mm+4MM+4MM
Focus ControlFixed
Lens TypeFixed
Pixels8M Pixels
Night Vision
Infrared LED18PCS Infrared light +18PCS White light
Infrared Distance10M
IR StatusAGC auto control
IR Power OnAuto Control
Connectivity
RJ45NO
ProtocolTCP/IP, UDP/IP, DHCP, MQTT, P2P
ONVIFNO
P2PSupport
4GFDD-LTE: B1/B3/B5/B7/B8/B20/B28 · TDD-LTE: B38/B40/B41 · GSM: 900/1800 MHz
4G band optionsEU / Middle East / Africa edition: FDD-LTE B1/B3/B5/B7/B8/B20/B28 · TDD-LTE B38/B40/B41 (standard production). Americas edition: available on custom order, not held in stock — band list confirmed in writing per order.
WIFIVersion available (4G SIM and WiFi are separate versions, specify the destination market at order)
Main Stream1920*2160@15fps
Sub Stream640*720@15fps
Smart Phonesupport
Image & Smart Features
Day/NightColor/ B&W (IR-CUT )
Image ConfigYES
BLCSupport
3DNRSupport
WDRYES
Motion DetectionSupport
Privacy MaskingYES
Recording ModeSDcard
LanguageSimplified Chinese, English, Japanese, German, Russian, French, Italian, Spanish
Audio & Storage
Audio2-Way Audio (MIC and Speaker)
AlarmMotion Detection, PIR human body infrared detection
SD Card SlotSupport Max 256G
Build & Power
Housingplastic,IP66
BracketSupport
IR Cut FilterYES
PowerDC 5V/1.5A or 7.5W+7.5W solar panel Battery(12000mAh)
Operation Temperature-30°C ~ +60°C
Storage Temperature-30°C ~ +60°C, 0% ~ 90% RH (no condensation)
Packaging
weight2.2KG
Box size280*178*232MM
Outer box size570*380*730MM
Weight of one box26.9KG(12PCS)
Mobile AppHieasy (iOS / Android)

Applications

Where this camera wins.

📶 Weak-Signal & Edge Coverage

External 4G antennas hold the link where internal ones drop it — measured, not assumed, at the mounting pole.

🏞️ Remote Sites & Cabins

Four lenses and dual panels for compounds far from any infrastructure, checked from anywhere by phone.

🛰️ Towers & Infrastructure

Battery banks and copper are recurring targets; one unit over the compound gate answers most questions.

🌾 Farms & Ranch Boundaries

Cover the far paddock and the rear gate without trenching across fields.

🏗️ Mines & Civil Projects

Deploy at the pit gate and the fuel store, relocate as the works advance, redeploy on the next project.

Planning a full deployment? See the scenario guides: off-grid and remote site cameras and perimeter security cameras.

Signal & setup

Why MS45 exists: weak signal sites.

External antennas are the whole point

This is the model for the far paddock, the valley floor and the back of the yard where a phone shows one bar. Stand the antennas vertical, keep them clear of the metal bracket and the LED housing, and check the signal reading in the app before you lock the bracket off.

Two panels means two things to aim

Twin 7.5W panels feed 12000 mAh — but only the one facing the sun is doing the work. If a wall or a tank shades one of them for most of the day, you have effectively bought a single-panel unit.

Know what the pixel count means here

Four lenses at 2 MP each give wide, simultaneous coverage rather than one magnified view. It excels at proving what happened across a whole area; if you need fine detail at distance from a single stream, MS42 is the better tool.

Rated −20 °C to +60 °C

Plastic housing, 2.2 kg, supplied with bracket hardware. Tell us about exposed high-heat sites in advance — siting usually solves what specification cannot.

Which model

MS45, MS42 or MS32?

Signal is fine and you want more detail per lens

MS42 runs the same four-lens body at 2 MP per lens with internal antennas, backed by a larger 16000 mAh pack. See the full spec sheet.

One head needs to follow what it catches

MS43 adds PTZ 360° coverage to the four-lens format — useful where a single alert has to be tracked along a boundary. See the full spec sheet.

You want this in an existing V380 Pro fleet

MS32 runs three lenses on V380 Pro — the same account as MO31, MO32 and MSL31 if app consolidation matters. See the full spec sheet.

Ordering & shipping

Terms that decide the deal.

Samples and trial orders

Evaluation samples ship as 1–2 units so you can test on a real site. Trial orders up to 100 units carry their own price tier, and the sample charge is credited against your first bulk order rather than refunded in cash — first bulk orders start at 300 units.

Lead time

Standard-configuration orders ship in 7–14 days. OEM branding — logo, carton artwork and firmware defaults — adds time and is quoted against the specific job instead of assumed.

Payment and trade terms

Standard terms are T/T with 50% deposit and 50% before shipment. We quote FOB Shenzhen, or CIF to your port. Delivered-duty-paid is not something we sell — the customs entry stays in your name.

Warranty and spares

Twelve months, handled direct from our own factory in Shenzhen — spare parts, firmware updates and RMA replacements come from the people who built the unit.

Packing and freight

Ships in master cartons of 12 units, carton footprint 570*380*730MM, 26.9KG gross per carton. Give us your port and we will quote freight on CIF terms, or hand over on FOB Shenzhen if you run your own forwarder.

FAQ

What buyers usually ask.

What's the MOQ for OEM orders?

Trial orders start small — talk to us about your volume. Logo printing, custom packaging and firmware defaults are available on OEM terms; we scale with you from first sample to full containers.

Does it really work through cloudy weeks or winter?

Yes — every solar model ships with a Li-ion pack built from replaceable 18650 cells, and every one of them records continuously rather than in clips. Capacity in mAh is stated on the datasheet, and sizing is done against your local worst-week sunlight rather than a spec-sheet average; in low-sun regions we recommend the dual-panel MS4x series for extra harvest margin.

Why external antennas over internal?

External antennas hold weak 4G signals in places where internal antennas drop off. Premium solar installs are often in exactly those places — remote farms, construction sites, off-grid properties. The difference between a camera that streams and one that doesn't.

What is black-light night vision?

Black-light (or super-starlight) night vision uses a large-aperture low-illumination sensor plus invisible 940nm IR fill. It delivers full-color or near-color footage in near-total darkness without the visible red glow of conventional IR cameras — clearer evidence, zero giveaway.

What certifications are available?

We manufacture as an OEM and do not hold finished CE or FCC test reports under our own name. What we do instead is support your own local approval: we supply the documents we actually hold, including detailed specifications, label artwork and wiring drawings, plus the battery paperwork your shipment needs. Tell us your destination market and what your authority asks for, and we will confirm in writing which documents ship with the order and which your side has to obtain locally.

What about after-sales support?

Spare parts, firmware updates and warranty handling come from our own factory in Shenzhen. Your customers stay supported — and so does your reputation.

Which mobile app do the cameras use?

Hieasy (iOS / Android) is the companion app — free to download, with live view, playback, PIR push alerts, two-way talk and multi-user sharing. Pair by scanning the QR code on the camera.

How should the antennas be positioned?

Vertical, and as far from metal as the bracket allows — the fixing plate, the mast and the LED housing all shadow the pattern. Check the signal reading in the app before you tighten the bracket off; five extra minutes at install saves a return trip to the site.

Is 2 MP per lens enough?

It depends on what you need to prove. For wide-area awareness across four views it is generous. For reading a plate or resolving a face at distance from a single stream, you want more pixels in that one view — MS42 puts 4 MP behind each lens.

Do both panels have to face the same way?

No — and that is useful. Angling them slightly apart flattens the daily charging curve, catching early morning on one face and late afternoon on the other, which matters most at high latitudes and through monsoon seasons.

What are the payment and delivery terms on the MS45?

Deposit and balance by T/T — 50% to start and 50% before shipment — quoted FOB Shenzhen or CIF to your port. Standard configurations ship in 7–14 days; OEM branding adds time and is quoted per job. Delivered-duty-paid terms are not offered.
